Home > Products > JVH-014 1600W 12V/24V Electrical Horizontal Windlass Winch for Boat Yacht

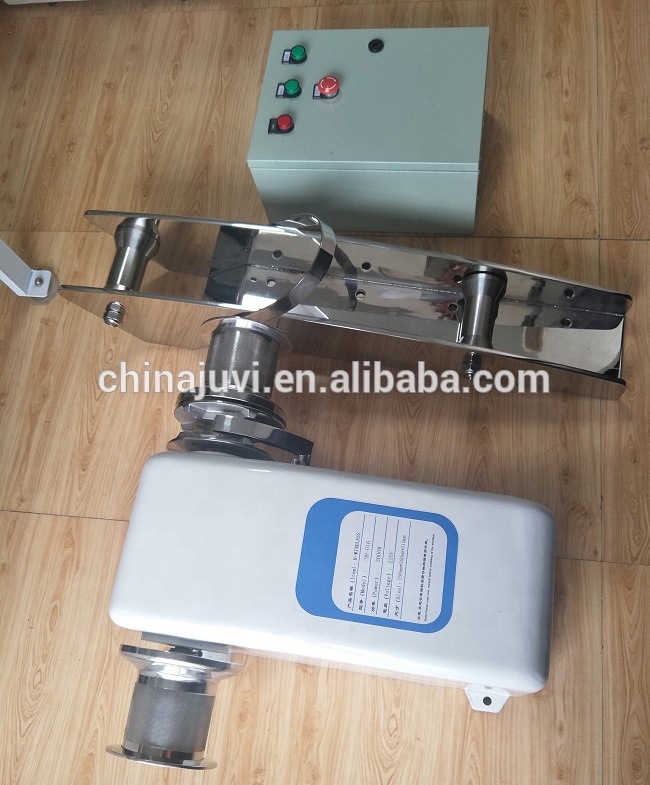

JVH-014 1600W 12V/24V Electrical Horizontal Windlass Winch for Boat Yacht
Click on the image to view the original image
Product： views：2JVH-014 1600W 12V/24V Electrical Horizontal Windlass Winch for Boat Yacht
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
JVH-014
Power Source:
Electric
Application:
Boat
Capacity:
600-2500kg
Product name:
Electrical Horizontal Windlass for Boat Yacht
Motor:
600W, 1000W, 1400W, 1600W, 2000W, 3000W
Power Supply:
12V, 24V, 220V, 380V
Max. Load:
190-1200kg
Max. Pull:
600-2500kg
Line Speed(m/min):
20, 25, 30
Rope Size:
12-24mm
Weight:
16-38kg
Material:
Aluminum Alloy
Chain size:
6mm, 7mm, 8mm, 10mm, 12mm, 13mm
Supply Ability
Supply Ability:
10000 Set/Sets per Month More details, contact customer service
Packaging & Delivery
Packaging Details
Standard export packaging
Port
Shanghai/Guangzhou/Shenzhen
Lead Time:
Quantity(Sets)1 - 20 >20
Est. Time(days)1To be negotiated
Product Description

JVH-014 1600W 12V/24V Electrical Horizontal Windlass Winch for Boat Yacht





Horizontal

Windlass

Model

Net

Weight

(kg)

Power

Supply

Motor

No Load

Absorption

Max.

Load
(kg)

Max.

Pull (kg)

Line

Speed

Rope

Size

(mm)

Chain

 Size

(mm)

JVH-0111612V/24V600W50A19060030m/min12-146-7
JVH-01225.51000W90A35075025m/min14-168-10
JVH-013321400W125A520110025m/min18-20
JVH-014341600W140A660140020m/min20-2410-12
JVH-01536

220V/

380V

2000W6A900200010-13
JVH-016383000W9A1200250010-13

 Features:

1.Twin capstan, single gypsy, but you also can choose twin gypsy.

2. Reversible motor.

3. Independent operation of capstans and gypsy by declutching the drive.

4. Simple deck mounted installation with no under deck parts.

5. Simplified maintenance with ability to strip the running gear (chain-wheel and drum) from the windlass without disturbing the windlass mounting.

6. Totally sealed gearbox with ground worm drive.

7. Horizontal windlass casing are cast marine grade aluminium alloy with epoxy resin spray.

8. Accessories include hand-switch, control box, foot switch, and wrench.
