- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Model Number:
- JVW-012F
- Power Source:
- Electric
- Application:
- Boat
- Capacity:
- 750kg

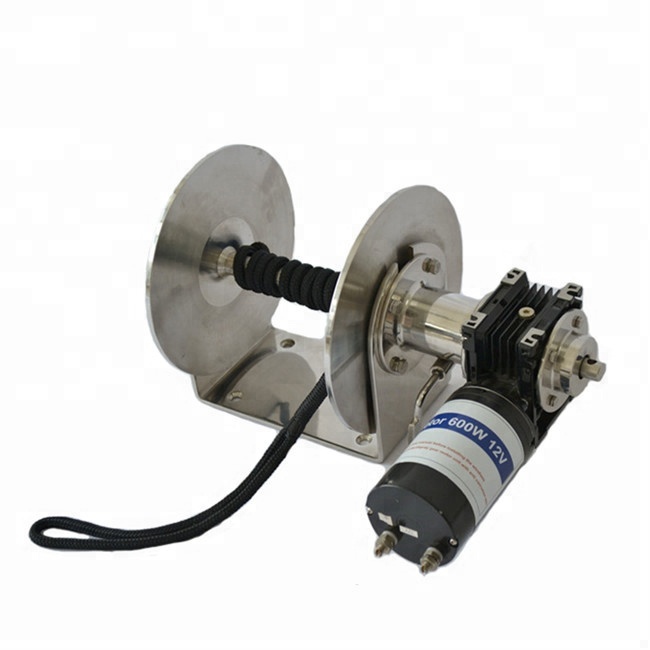

- Product name:
- Free fall winch
- Motor:
- 1000W
- Power Supply:
- 12V/24V
- Weight:
- 25kg
- Max. Load (kg):
- 350
- Max. Pull (kg):
- 750
- Line Speed:
- 25m/min
- Rope Size:
- 8-10mm
- Chain Size:
- 6-8mm
- No Load Absorption:
- 90a
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- Neutral packing
- Port
- Shanghai/Guangzhou/Shenzhen
- Lead Time:
Quantity(Pieces) 1 - 1 >1 Est. Time(days) 5 To be negotiated
|
| Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
Free fall winch | JVW-010F | 12 | 12V/24V | 400W | 30A | 120 | 320 | 30m/min | 6mm | 5-6mm |
JVW-011F | 17 | 600W | 50A | 190 | 600 | 6-8mm | 5-6mm | |||
JVW-012F | 25 | 1000W | 90A | 350 | 750 | 25m/min | 8-10mm | 6-8mm | ||
JVW-013F | 35.5 | 1400W | 120A | 480 | 900 | 20m/min | 10-14mm | 8-10mm | ||
JVW-014F | 46 | 1600W | 135A | 680 | 1200 | 10-14mm | 8-10mm | |||
Tender winch | TW400 | 10 | 12V/24V | 400W |
| 90 | 120 | 20m/min | 6-10mm |
|
TW600 | 13 | 600W |
| 130 | 160 | 8-12mm |
1. No need to tie off the rope at anchorage.
2. The speed of retrieval increases with each revolution.
3. All rope and chain is spooled on and off the drum at a rate of 80 and 90 feet per minute.
4. The rope and chain does not twist and tangle causing the unit to malfunction.
5. With the flick of a switch the anchor is raised and lowered.
6. Freefall at up to 600 feet/minute which is a real advantage when you fish in depths greater than 20 meters. Also the drum can only free spool whilst where is weight pulling down so once the anchor hits the seabed the drum will automatically stop which totally eliminates the risk of an over run which happens when too much rope is spooled out when anchoring.
