Click on the image to view the original image
- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Part:
- Marine Light
- Product Name:
- marine navigation light
- International Code:
- 370422
- Protection class:
- IP56
- Visibility:
- 3n.m
- Level arc:
- 112.5°
- Color:
- Green
- Cable outside Diameter (mm):
- 12-13
- Weight:
- 5.00kg
- Lamp Holder:
- P28S
- Bulb Power:
- 60W
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 23.5X21.5X50 cm
- Single gross weight:
- 3.0 kg
- Package Type:
- Neutral packing

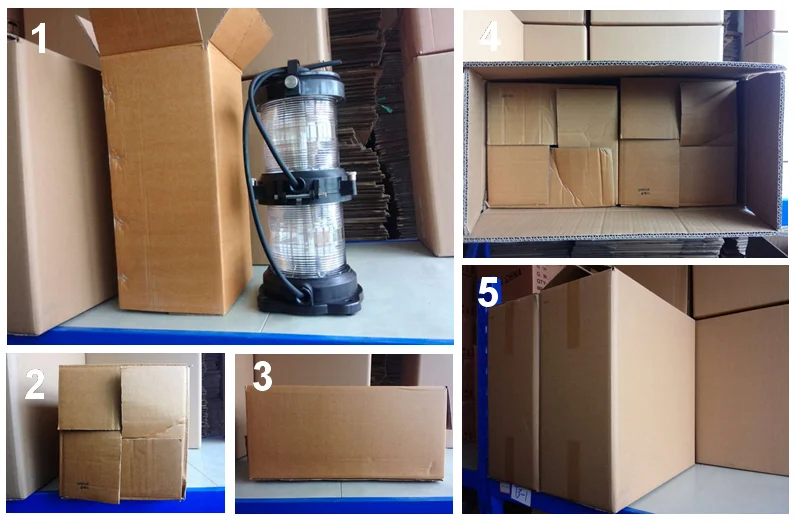

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 >10 Est. Time(days) 5 To be negotiated
CXH1-101P high quality boat marine navigation light IP56
The scope of application
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic
1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
3. The connection between the lamp holder and the light base is clamshell type, it is easy to unscrew the top cover and replace the bulb, this structure is more stable than the previous plug-in type.
4. The signal lights adopt the signal light"s bulb which conform to the ship norm. and the average life is more than 700h.
5. The signal lights can work normally under the temperature -30℃-55℃.
Adopt standard
1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS
2. Conform to the international standard IEC60598-1-2008
3. Conform to the standard of marine electric signal light"s technical
Specifications
Name/Type | Visibility | Level arc | Color | Weight |
CXH1-101P Starboard light | 3n.m | 112.5° | Green | 5.00kg |
CXH2-101P Portlight | 3n.m | 112.5° | Red | 5.00kg |
CXH3-101P Masthead light | 6n.m | 225° | White | 4.90kg |
CXH4-101P Deckstern light | 3n.m | 135° | White/Yellow | 4.80kg |
CXH6-101P All-round light | 3n.m | 360° | Red/Green/White | 4.50kg |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label,Color Inner Box,etc |
| Delivery | By Courier,By Air,By Sea |
| Port | Ningbo,Shanghai,Guangzhou |
ChongQing Juvi Marine Equipment Co.,Ltd, can supply wide range of marine equipment for shipbuilding,ship repairing, ocean engineering and offshore projects etc.
Our main products include:
1, Marine life-saving and fire-fighting equipment: Lifeboat and davit,liferaft,lifejaket and lifebuoy etc.
2, Marine deck machineries: Anchor electic winch,Mooring Winch, Capstan,Steering gear etc
3, Marine deck mooring fittings: Anchor, Anchor chain, Panama chock, Roller fairlead,Bollard,Chain stopper etc.
4, Marine power and propulsion equpment: Rudder system,Shaft system, Propeller,Rudder propeller,Bow thruster,Emergecy generator set etc.
5, Marine cabin machinery: Marine pump, Ventilation fan,Boiler,Incinerator,Oily water separator, Hydrophone tank, Sewage treatment unit, Galley and laundry equipment etc.
6, Marine outfitting: Marine door,window,side scuttle,small hatch cover,manhole cover, accommodation ladder,gangway ladder,wharf ladder, marine sacrifical anode,pipes and fittings etc
6, Rubber product: Rubber fender, Pneumatic(Yokohama) fender, rubber packing/rubber seal for hatch cover, air bag for ship grading, rubber air pontoon
7, Boat and yacht hardward: Stainless steel anchor, anchor chain,bollard, chock,fairlead, wheel,ladder,shackle,thimble,hook etc.
8, Other industrial product: Elevator balance compensating chain, air filter, Panel filter,Bag/Pocket filter, HEPA/ULPA air filter etc.
Adress:NO.30-8, Xinke International Building , Qibo Center, Liangjiang New Area , Chongqing ,China
Whatspp/Wechat:0086-17318201326
