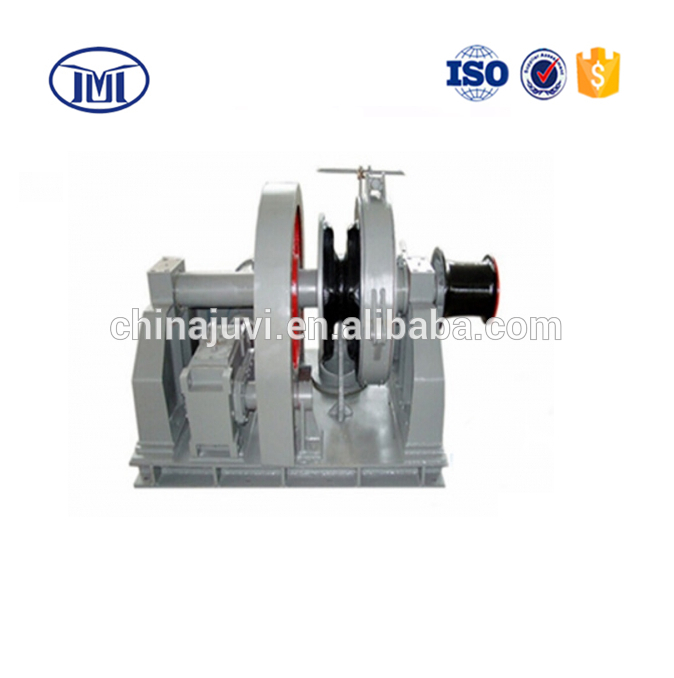

Anchor anchor windlass motor / anchor electric capstan winches is the professional anchor windlass motor installed on boat/ship deck for anchoring. Anchor anchor windlass motor is a necessity for all ships and boats. It’s power supply can be manpower, electric motor, diesel engine and hydraulic power pack etc. Dia. of anchor chain: φ 12—φ 120 mm ; Driven type: Manual, Electric, Hydraulic or Diesel;Working speed:about10 m/min.
We need you confirm below information when you send inquiry to us : [Noted:tell me your email and whatsapp or skype] 1.Your need quantity?(Set) 2.FOB price or CIF price?(If need CIF price,kindly tell us your nearest sea port) 3.Driven type?(Electric or Hydraulic or Diesel) 4.Rated pull force?(KN) 5.Working speed?(m/min) 6.Numbers of gypsy wheel? 7.Anchor chain diameter and anchor weight?(mm Ton) 8.Working voltage?(Voltage---50Hz/60Hz---3Phase) 9.Any other special requirements? |
Technical parameter | |||||
Model | Rated pull | Rated speed | Drum capacity | Braking force | Motor power |
(KN) | (m/min) | (mm x m) | (KN) | (KW) | |
JU-20 | 20 | 12 | 15 x 200 | 60 | 11 |
JU-30 | 30 | 12 | 16 x 200 | 90 | 15 |
JU-50 | 50 | 12 | 22 x 220 | 150 | 22 |
JU-80 | 80 | 12 | 28 x 220 | 240 | 37 |
JU-100 | 100 | 12 | 30 x 220 | 300 | 45 |
JU-125 | 125 | 12 | 32 x 220 | 375 | 55 |
JU-150 | 150 | 12 | 36 x 220 | 450 | 75 |
JU-200 | 200 | 10 | 39.5 x 350 | 600 | 75 |
JU-250 | 250 | 10 | 43 x 450 | 750 | 90 |
JU-320 | 320 | 8 | 47 x 550 | 960 | 90 |
JU-400 | 400 | 8 | 52 x 600 | 1000 | 110 |
JU-500 | 500 | 9 | 56 x 600 | 750 | 180 |
ChongQing Juvi Marine Equipment Co.,Ltd, can supply wide range of marine equipment for shipbuilding,ship repairing, ocean engineering and offshore projects etc.
Our main products include:
1, Marine life-saving and fire-fighting equipment: Lifeboat and davit,liferaft,lifejaket and lifebuoy etc.
2, Marine deck machineries: Anchor electric capstan winches,Mooring Winch, Capstan,Steering gear etc
3, Marine deck mooring fittings: Anchor, Anchor chain, Panama chock, Roller fairlead,Bollard,Chain stopper etc.
4, Marine power and propulsion equpment: Rudder system,Shaft system, Propeller,Rudder propeller,Bow thruster,Emergecy generator set etc.
5, Marine cabin machinery: Marine pump, Ventilation fan,Boiler,Incinerator,Oily water separator, Hydrophone tank, Sewage treatment unit, Galley and laundry equipment etc.
6, Marine outfitting: Marine door,window,side scuttle,small hatch cover,manhole cover, accommodation ladder,gangway ladder,wharf ladder, marine sacrifical anode,pipes and fittings etc
6, Rubber product: Rubber fender, Pneumatic(Yokohama) fender, rubber packing/rubber seal for hatch cover, air bag for ship grading, rubber air pontoon
7, Boat and yacht hardward: Stainless steel anchor, anchor chain,bollard, chock,fairlead, wheel,ladder,shackle,thimble,hook etc.
8, Other industrial product: Elevator balance compensating chain, air filter, Panel filter,Bag/Pocket filter, HEPA/ULPA air filter etc.
Would you have inquiries for any of our products, pls feel free to contact wtih us!
