1.Juvi is an integrated import-export company that presently specializes in product design, production, sales and technology.
2. Our company is located in Chongqing, south-west China"s great manufacturing base, a city with extremely high investment potential.
3. The Juvi has both, a professional technical staff and strong sales team. Thus far, we have been dedicated to the delivery of world class automotive, marine equipments and accessories, as well as the best products, best service.
4. JUVI is your best choice.
1. Convenient installation
2. Competitive price
3. Prefessional design
4. Approved CCS, BVetc.

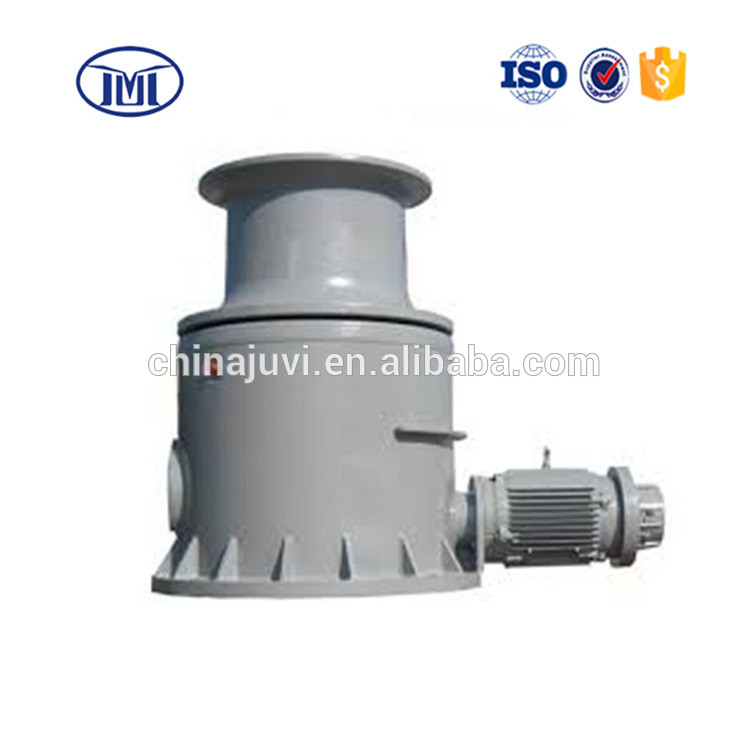

Marine Anchor Windlass
1. This marine hydraulic anchor windlass mostly drive by hydraulic pressure, hydraulic pump provide motives for the system, promote the hydraulic motor running, pass to the pinion gear which installed on motors axle end, pinion gear promote bull gear to slow running.
2. The bull gear connect with principal axis, principal axis running promote gypsy wheel through hand-operated proportional valve to control hydraulic motors positive and reverse rotation, speed-up and speed-down, accomplish the work of drop and weigh anchor. Its one side equipped with a warping barrel, increase greater convenience for ship to moor and dock.
3. Its base on composed of high-strength steel plates welded together,turn parts bearing use the copper of high quality. The installmethod of shiphull is connecting with bolt, installation convenience. Its has sound structure,high quality making,low price,simple operation,suitable for all kinds of small and medium-sized ship to moor and dock.
40mm Single Gypsy Two Drums Double Warping Heads Marine Hydraulic Anchor Winch
Basic information
| Brand | JUVI |
| Model | JVEAW40 |
| Chain Drum Part | |
| Anchor Diameter | 40mm |
| Chain Drum Load | 76.7KN |
| Chain Drum Speed | 9 m/min |
| Hawser Drum Part | |
| Hawser Drum Load | 90KN |
| Hawser Drum Speed | 15 m/min |
| Rope Capacity | 50mm*160m |
| Motor Part | |
| Motor Power | 30KW |
| Certificate | CCS, BV, ABS, DNV, KR, NK, RINA, GL, LR |
17.5mm Marine Hydraulic Anchor Windlass
CCS certificate
22mm Marine Hydraulic Anchor Windlass
BV Certificate
26mm Marine Hydraulic Anchor Windlass
DNV Certificate
34mm Marine Hydraulic Anchor Windlass
BV Certificate
56mm Marine Hydraulic Anchor Windlass
ABS Certificate
ABS, BV, CCS, DNV,GL, LR, KR,NK,RINA certificate for marine hydraulic anchor windlass are avaialble for JUVI company.
1. We are available to design and make marine hydraulic anchor windlass at request of clients.
2. We are professional to reply clients about marine hydraulic anchor windlass within 24 hours.
3. Our engineers are available to make installation, commissioning oversea.
