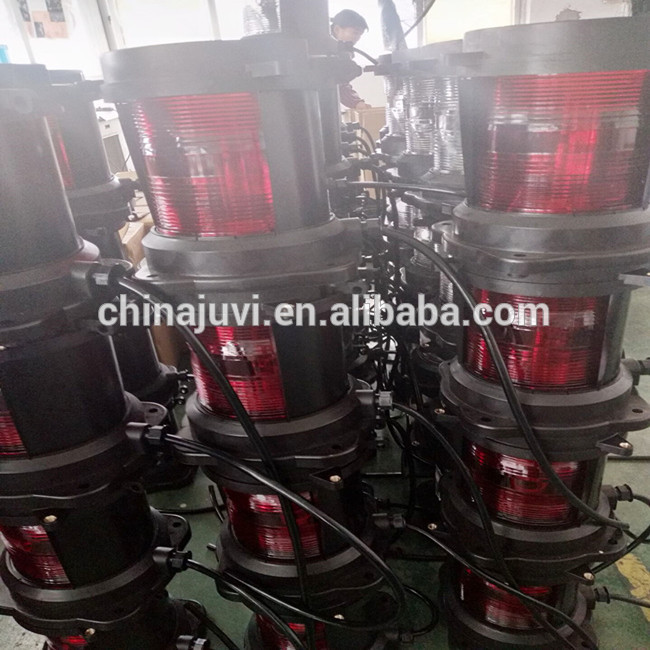

The scope of application: Applied to the ships with the length 50m Or above 50m as lamp signal liaison when night navigation.
Products characteristic:
1. The shell is made of high-strength engineering plastic PA+GF injection, the lampshade adopts injection of PC, the lens hood adopts the good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
3. The connection of the signallight’s lamp holder and the base adopt plug in type, can replace the up and down bulb when open the cover.
4. The signal lights adopt the signal light"s bulb which conform to the ship norm, and the average life is more than 700h.
5. The signal lights can work normally under the temperature -30℃~55℃
Adopt standard:
1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS .
2. Conform to the international standard IEC60598-1-2008
3. Conform to the standard of marine electric signal light"s technical condition GB/T 3028-1995
Production authentication:
1. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM
2. Passed the authentication of CE.
Specifications
|
| International Code | Visibility | Level arc | Lamp Holder | Bulb Power | Protection class | Cable outside Diameter (mm) | Color | Weight |
CXH-11P | CXH1-11P Starboard light | 370422 | 3n.m | 112.5. | P28S | 24V/ 60W 60cd 110V /60W 60cd 220V /60W 60cd | IP56 | 12~13 | Green | 3.00kg |
CXH2-11P Port light | 370423 | 3n.m | 112.5. | Red | 3.00kg | |||||
CXH3-11P Masthead light | 370421 | 6n.m | 225. | Transparent | 2.98kg | |||||
CXH4-11P Stern light | 370424 | 3n.m | 135. | Transparent/ Yellow | 2.98kg | |||||
CXH6-11P All-round light | 370426 370427 370428 | 3n.m | 360. | Red/ Green/ Transparent | 2.79kg |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label,Color Inner Box,etc |
| Delivery | By Courier,By Air,By Sea |
| Port | Ningbo,Shanghai,Guangzhou |
