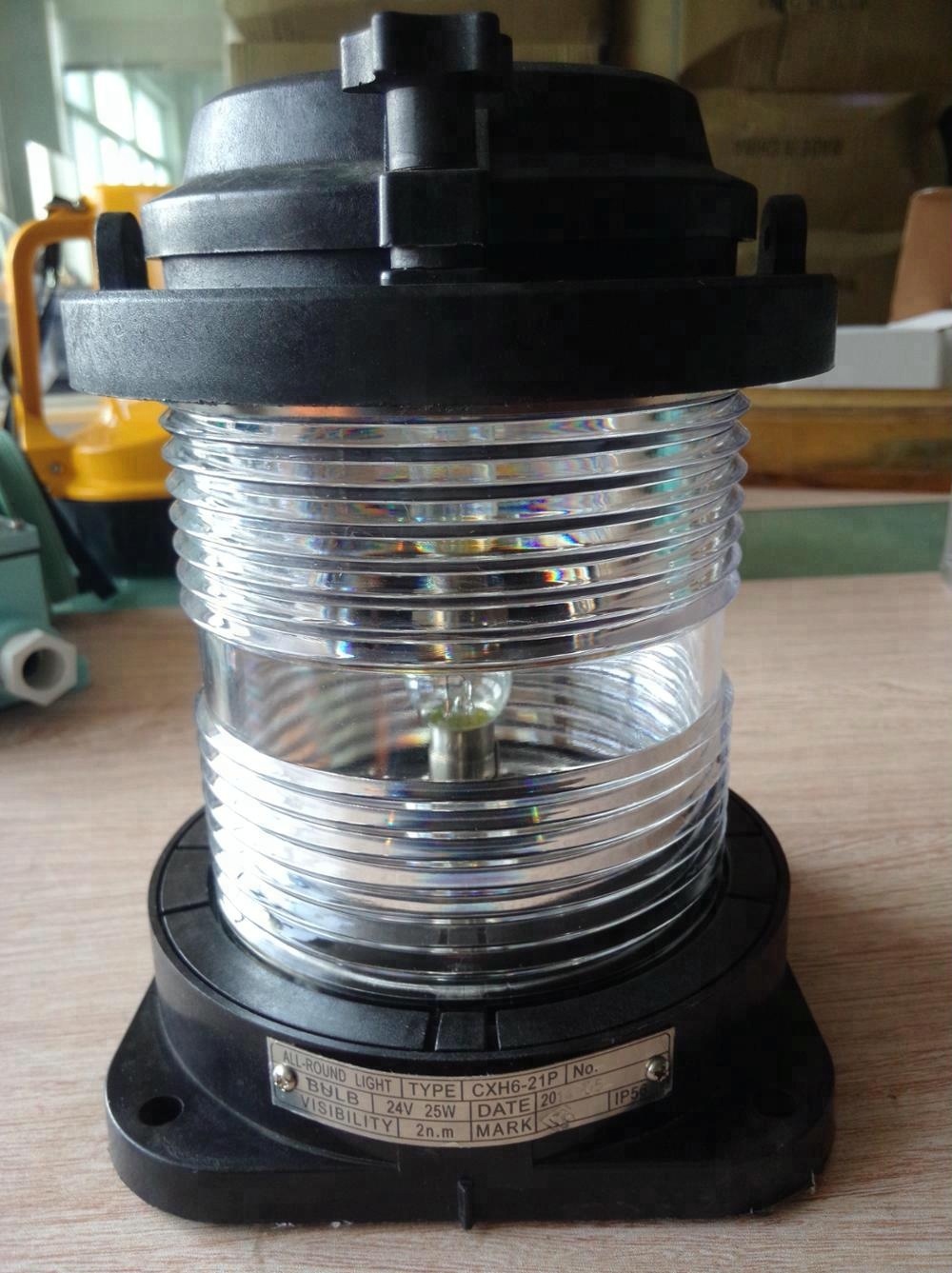

CXH1-21P Waterproof Marine Single-deck All-round Navigation Signal Light for Sale
The scope of application
Applied to the ships with the length 12m or above 12m(<50m) as lamp signal liaison when night navigation.
Products characteristic
1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
3. The signal lights uses exclusive the special signal bulb which conform to the ship crterion, it can replace bulb as open the up cover.
4. The signal lights can work normally under the temperature -30℃-55℃.
Adopt standard
1. Conform to<THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972>and<GRADE ENTRY NORMS FOR STEEL SHIPS>.
2. Conform to the international standard IEC60598-2008.
3. Conform to the standard of marine electric signal light"s technical condition GB/T 3028-1995.
Production authentication
1. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
2. Passed the authentication of CE.
Specifications
| Name(Type) | Visibility | Level arc | Lamp holder | Bulb Power | Protection class | Cable outside diameter | Color | Weight | |||
CXH1-21P Starboard light | 2n.m | 112.5° | BAY15d | 12V /25W 40cd 24V /25W 60cd | IP56 | 8mm | Green | 1.17kg | |||
CXH2-21P Port light | 2n.m | 112.5° | Red | 1.17kg | |||||||
CXH3-21P Masthead light | 5n.m | 225° | Transparent | 1.10kg | |||||||
CXH4-21P Stern light | 2n.m | 135° | Transparent yellow | 1.16kg | |||||||
CXH6-21P All-round light | 2n.m | 360° | Red Green Transparent | 1.02kg | |||||||
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label, Color Inner Box, etc |
| Delivery | By Courier, By Air, By Sea |
| Port | Ningbo, Shanghai, Guangzhou |
