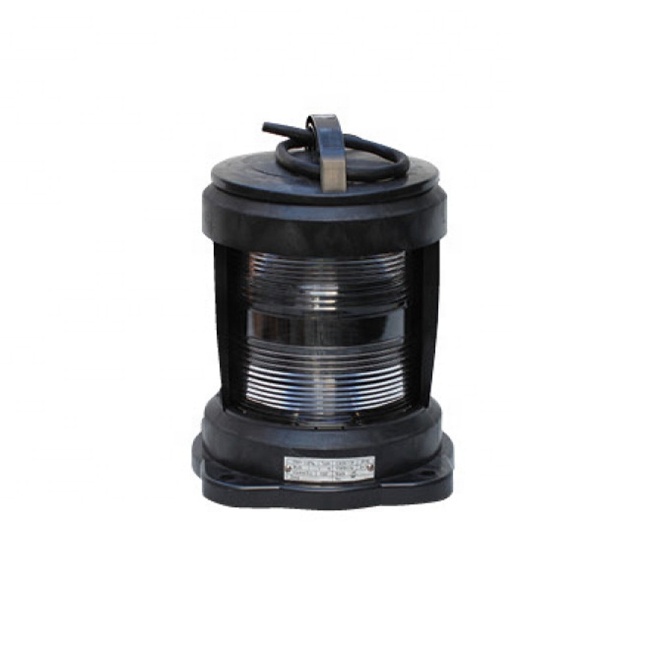

The scope of application: Applied to the ships with the length 50m Or above 50m as lamp signal liaison when night navigation.
Products characteristic:
1. It is convenient to install and replace the bulb, and there are automatic aleak holes in the bottom.
2. The shell adopts good quality metal material steel, the surface is painted the special mold-powder, has the feature of corrosion-resisting and shock resistance.
3. The lampshade adopts polycarbonate, it has the feature of ultraviolet radiation resistance and does not discolor ect.
Adopt standard:
1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COL LISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the standard of marine electric signal light"s technical condition GB/T 3028-1995.
Production authentication: Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
Specifications
| International Code | Visibility | Level arc | Lamp Holder | Bulb Power | Protection class | Cable outside Diameter (mm) | Color | Weight | |
CXH-1D | CXH1-1D Starboard light | 370442 | 3n.m | 112.5. | P28S | 24V 60W 110V 65W 220V 65W | IP55 | 12~16 | Green | 5.00kg |
CXH2-1D Port light | 370443 | 3n.m | 112.5. | Red | 5.00kg | |||||
CXH3-1D Masthead light | 370441 | 6n.m | 225. | Transparent | 5.00kg | |||||
CXH4-1D Stern light | 370444 | 3n.m | 135. | Transparent/ Yellow | 5.00kg | |||||
CXH6-1D All-round light | 370446 370447 370448 | 3n.m | 360. | Red/ Green/ Transparent | 5.00kg |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label,Color Inner Box,etc |
| Delivery | By Courier,By Air,By Sea |
| Port | Ningbo,Shanghai,Guangzhou |
