2n.m CXH5-2 marine head ceiling all round solar masthead stern light B15d

Click on the image to view the original image

Product：	views：22n.m CXH5-2 marine head ceiling all round solar masthead stern light B15d
Branch：	JUVI
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:01

Product Details

Overview

Quick Details

Place of Origin:: Chongqing, China

Brand Name:: JUVI

Part:: Marine Light

Product Name:: marine head light

power:: 60W

protection class:: IP56

voltage:: 24V

visibility:: 2n.m

Color:: red green blue purple transparent

Material:: Aluminum

level arc:: 360 degree

cable outside diameter:: 15mm

lamp holder:: B15d

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month marine light

Packaging & Delivery

Packaging Details: Neutral packing

Port: ShangHai/GuangZhou

Lead Time:

Quantity(Pieces)	1 - 1	>1
Est. Time(days)	5	To be negotiated

The scope of application: Applied to the ships as lamp signal when night navigation.

Products characteristic:

1. Screw-type connecting flange, it is convenient to install and replace the bulb.

2. The lampshade adopts good quality pyrex glass, and it has good function of pervious to light.

Adopt standard:

1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.

2. Conform to the standard of marine electric signal light"s technical condition GB/T 3028-1995

Production authentication: Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.

Specifications

		Visibility	Level arc	Lamp Holder	Protection class	Cable outside Diameter (mm)	Color	Weight	Rated voltager	Power	Material

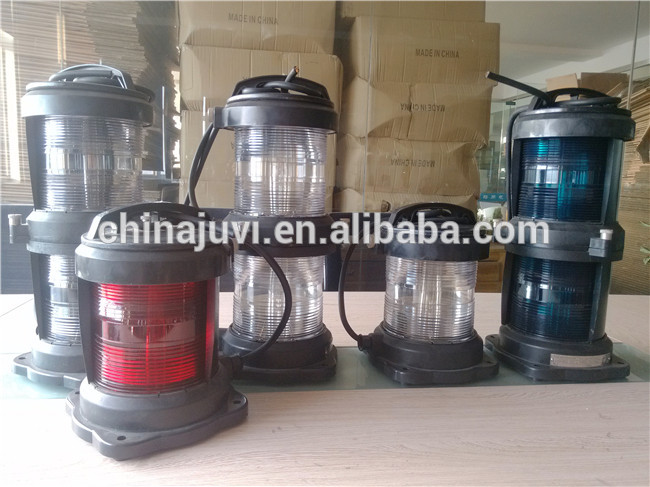

CXH-5 head light	CXH5-1	3n.m	360.	E27	IP56	12	Transparent/ Red/ Green/ Yellow/ Blue/ Purple	0.86kg	24V 110V 220V	60W	Aluminium
	CXH5-1A	3n.m		E27		12	Transparent/ Red/ Green/ Yellow/ Blue/ Purple	0.73kg	24V 110V 220V	60W	Plastic
	CXH5-2	2n.m		B15d		15	Transparent/ Red/ Green/ Blue	0.47kg	24V	30W	Aluminium
	CXH5-2A	2n.m		B15d		15	Transparent/ Red/ Green/ Blue	0.39kg	24V	30W	Plastic
	CXH5-3	2n.m		B15d			Transparent/ Red/ Green	0.3kg	12V 24V	15W	Plastic

Packaging Detail	Label + Inner Box + Export Carton
Common Packing	Label,Color Inner Box,etc
Delivery	By Courier,By Air,By Sea
Port	Ningbo,Shanghai,Guangzhou
