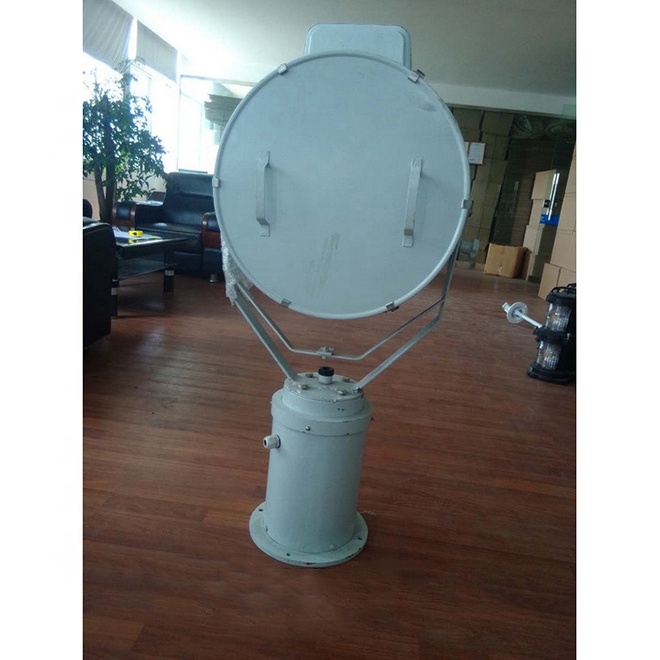

TZ1-A 1000W REMOTE CONTROL automatic focus adjustable SEARCHLIGHT for night nav and lifesaving
The scope of application
Applied to remote illumination of ship night navigation, lifesaving, warning etc, and aim searching.
Products characteristic
1. Equipped the sphere toughened glass reflector and the device of focus adjustment which can adjust the focus up and down, front and black neatly, and has the functions such as high luminous intensity, far illumination distance.
2. TZ1 Has steel shell, ball plate mounted on base, also equipped with lifting gear which can control the light body by hand to rotate for 350° horizontally and pitching 30°, Equipped the electrical box when supply DC110V please remark clear when order.
3. TZ1-A Has stainless steel shell, a micro motor is mounted on base, and can operate the light body to rotate for 350° horizontally and pitching 30° by controller.
4. Patent No.: ZL 201420804513.3.
Specifications
| Name(Type) | Voltage | Power | Lamp holder | Illuminant | Luminous flux | Protection class | Cable outside diameter | Weight | Annex |
TZl WIRELESS REMOTE CONTROL SEARCH LIGHT (Manual type) | DC110V | 1000W | For special use | Sphericity mercury xenon light | 60000 | IP55 | φ10-φ12 | 60kg | Lifter, Ballast |
TZl-A WIRELESS REMOTE CONTROL SEARCH LIGHT (Automatic type) | AC220V | 60000 | IP55 | φ10-φ12 | 100kg | Controller, Ballast |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label, Color Inner Box, etc |
| Delivery | By Courier, By Air, By Sea |
| Port | Ningbo, Shanghai, Guangzhou |
