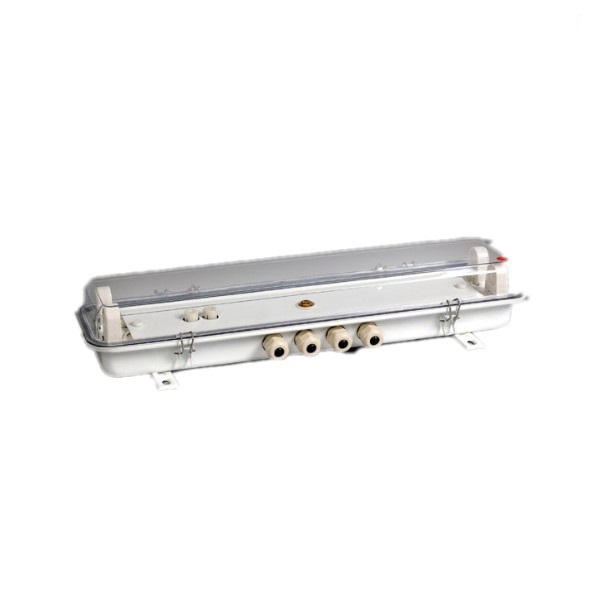

JCY44-2EF 2x40W Marine FLUORESCENT PENDANT LIGHT with emergency and guard
The scope of application
Applied to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc.
Products characteristic
1. The shell adopts good quality steel plate tensioned, lampshade adopts injection of PC, and has the seal structure.
2. In order to prevent from electric shocking, equipped with a copper earthing rod with the mark in the lights.
3. Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect.
4. The lamp equipped BlSd lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks the marking, remark clear that need the emergency device when order.
5. Equipped compensating capacitance inside the lamp, also has the good effect of start.
Adopt standard
Conform to CB/T 3857-1999 standard.
Production authentication
Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
Specifications
| Name(Type) | Power | Voltage | Power factor | Lamp holder | Cable outside diameter | Protection class | Weight | Remarks | L | L1 | H |
JCY24-2 FLUORESCENT PENDANT LIGHT | 2×20W | 110V/60Hz 220V/50Hz 220V/60Hz | >0.85 | G13 | φ12-φ16 | IP56 | 4.02kg | — | 692 | 480 | 134 |
JCY24-2E FLUORESCENT PENDANT LIGHT | 4.02kg | With emergency | 134 | ||||||||
JCY24-2EF FLUORESCENT PENDANT LIGHT | 7.2kg | With emergency and guard | 155 | ||||||||
JCY34-2 FLUORESCENT PENDANT LIGHT | 2×30W | 7.0kg | — | 992 | 700 | 134 | |||||
JCY34-2E FLUORESCENT PENDANT LIGHT | 7.0kg | With emergency | 134 | ||||||||
JCY34-2EF FLUORESCENT PENDANT LIGHT | 7.0kg | With emergency and guard | 155 | ||||||||
JCY44-2 FLUORESCENT PENDANT LIGHT | 2×40W | 7.24kg | — | 1299 | 700 | 134 | |||||
JCY44-2E FLUORESCENT PENDANT LIGHT | 7.24kg | With emergency | 134 | ||||||||
JCY44-2EF FLUORESCENT PENDANT LIGHT | 9.12kg | With emergency and guard | 155 |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label, Color Inner Box, etc |
| Delivery | By Courier, By Air, By Sea |
| Port | Ningbo, Shanghai, Guangzhou |
