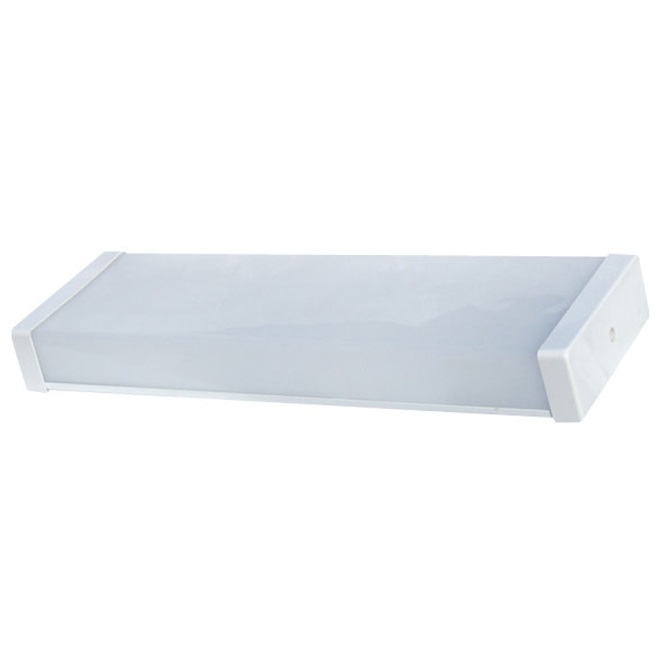

JPY28-2 Ceiling Mount Fluorescent Lights Fixture Parts Steel Shell IP22
The scope of application
The lamp is suitable for use as illumination in ship’s hold,resident,office and cultural recreation room etc.
Characteristic
1. The shell is made of steel plate,surface mounted.
2. The lamp shade is milky white organic glass.
3. The ambient temperature -20-50°C scope is in normal work.
4. The protection class is IP22.
Note: The product type add "J" With vibration damper, "E"with emergency light holder, "G"with emergency battery.
Specifications
| Name(Type) | Power supply | Power | Emergency Lamp | Size | Weight | |||
Lamp holder | Voltage | Power | A | B | ||||
JPY28-2 FLUORESCENT CEILING LIGHT | 110V/60Hz 220V/50Hz 220V/60Hz | 2x20W | — | — | — | 658 | 500 | 2.5kg |
JPY28-2E FLUORESCENT CEILING LIGHT | B15d | 24V | 15W | 3.8kg | ||||
JPY48-2 FLUORESCENT CEILING LIGHT | 2x40W | — | — | — | 1295 | 1000 | 5.4kg | |
JPY48-2E FLUORESCENT CEILING LIGHT | B15d | 24V | 15W | 5.5kg | ||||
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label, Color Inner Box, etc |
| Delivery | By Courier, By Air, By Sea |
| Port | Ningbo, Shanghai, Guangzhou |
