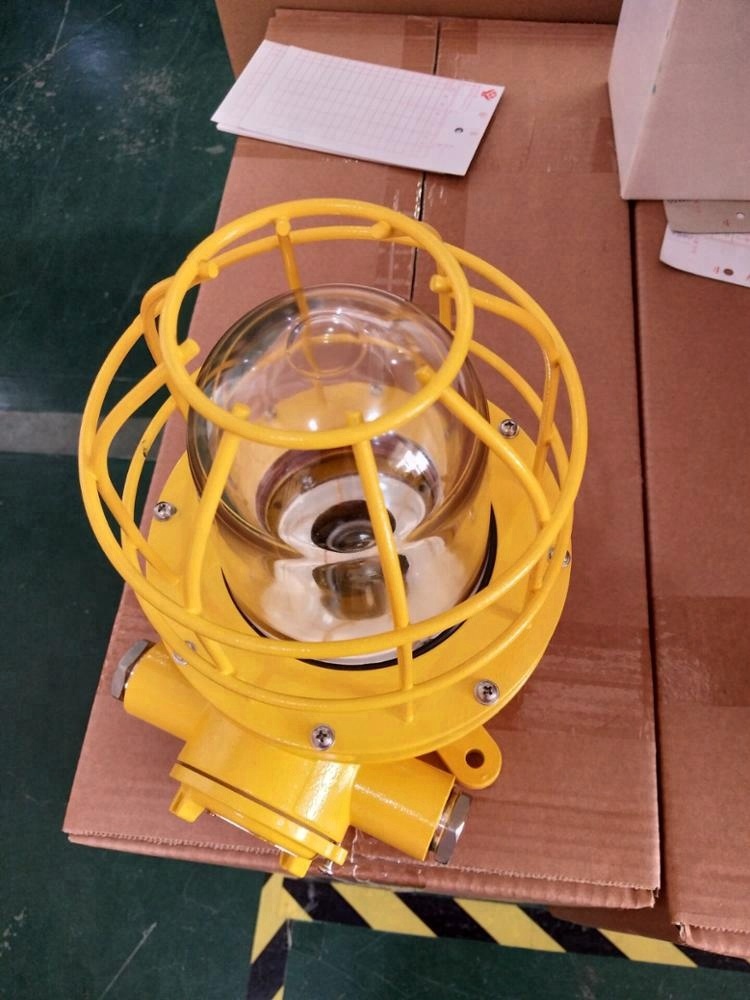

CFD4aExplosion proof ceiling working lights Brass incandescent 25w 60w 100w
The scope of application
Applied to the illumination in 1-2 zone dangerous places of hydric gas and air admixture, ethyne and air admixture and other flammable gas admixture.
Products characteristic
1. The shell is made of good quality brass foundry toughened glass lamp-shade, with brass guard.
2. The gland has two kind, one is tube screw type, screw is G3/4, Another one is bugle-type.
Production authentication
1. Passed the examination of National Explosion-proof Safety Supervisal and Inspection station for Lumina1re.
2. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
3. Conform to National standard GB3836,GB12045 «THE TECHNICAL CONDITION OF MARINE EXPLOSION-PROOF LIGHT».
Specifications
| Name(Type) | Voltage | Power | Illuminant | Lamp holder | Protection class | Cable outside diameter | Material | Weight |
CFD4a EXPLOSION-PROOF INCANDESCENT LIGHT | 24V-220V | 60W | Incandescent | E27 | IP56 | φ11-φ13 | Brass | 13kg |
CFD4b EXPLOSION-PROOF INCANDESCENT LIGHT | 24V-220V | 25W | ||||||
CFD4c EXPLOSION-PROOF INCANDESCENT LIGHT | 220V | 100W |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label, Color Inner Box, etc |
| Delivery | By Courier, By Air, By Sea |
| Port | Ningbo, Shanghai, Guangzhou |
