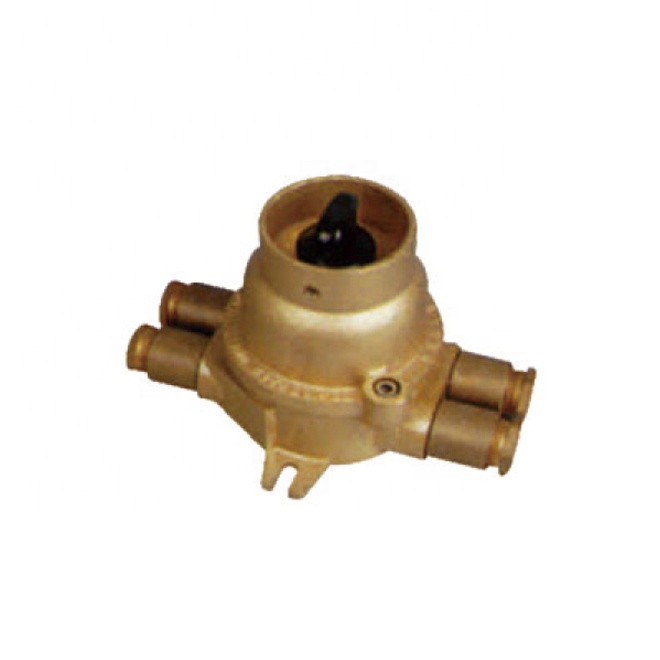

DCHH202-2A Industrial Brass Explosion-proof Ship Marine Switch IP56
Features
1. Fit for electric appliances connecting and circuit breaking in ships, sea petroleum, chemical industry site etc.
2. The shell adopts precision brass casting, it has the feature of fine sealing function and fine electric function.
3. This series of products have passed the Examination of National Explosion-proof Electrical Test Center, and was Approval by CCS(China Classification Society). certificate number 0051SQ20619ROM.
4. Fit for armored cable φ10-φ12.5mm.
Specifications
| Name(Type) | Weight | Protection class | Adopted standard | Explosion-proof type | Voltage/Current |
dCHH202-2 EXPLOSION-PROOF SWITCH | 2.25kg | IP56 | IEC60079 | Exd IICT6 | 380V/16A |
dCHH202-2A EXPLOSION-PROOF SWITCH | 2.25kg | ||||
dCHH202-3 EXPLOSION-PROOF SWITCH | 2.27kg | ||||
dCHH202-4 EXPLOSION-PROOF SWITCH | 2.35kg |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label, Color Inner Box, etc |
| Delivery | By Courier, By Air, By Sea |
| Port | Ningbo, Shanghai, Guangzhou |
