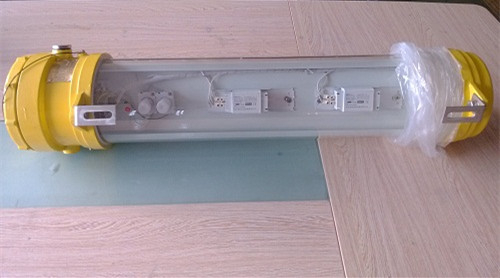

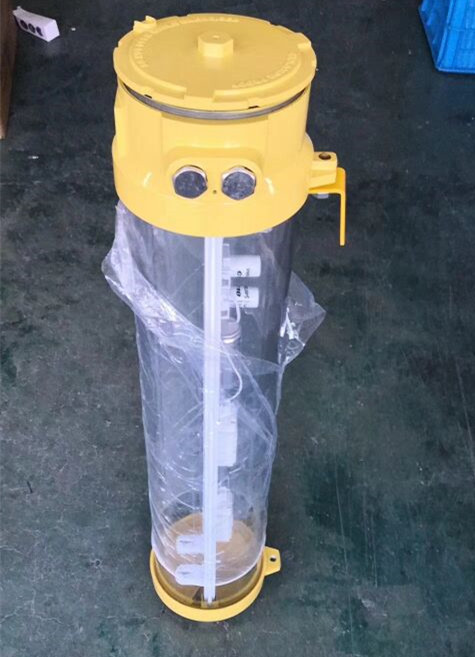

CFY30-1 Explosion Proof Fluorescent Light Fitting 1x30w G13 Lamp Holder IP56
The scope of application
1. The shell adopts good quality stainless steel, good quality PC lampshade, with two glands, adopt fluorescent lamp.
2. The light adopts hang-type installation, and it is convenient to replace the light-tube etc.
3. The lamp body adopts seal structure, has high waterproof performance and anticorrsion performance.
4. Conform to<GRADE ENTRY NORMS FOR STEEL SHIPS>and national standard GB3836- 2000, GB12045, En50014, En50018, En60079.
Specifications
| Name(Type) | Voltage | Power | Lamp holder | Protection class | Cable outside diameter | Weight |
CFY20-2 EXPLOSION-PROOF FLUORESCENT LIGHT | 220V/60Hz 220V/60Hz 110V/60Hz | 2x20W | G13 | IP56 | φ13-φ14 | 11.5kg |
CFY20-1 EXPLOSION-PROOF FLUORESCENT LIGHT | 1x20W | |||||
CFY30-2 EXPLOSION-PROOF FLUORESCENT LIGHT | 2x30W | 13.5Kgs | ||||
CFY30-1 EXPLOSION-PROOF FLUORESCENT LIGHT | 1x30W | |||||
CFY40-2 EXPLOSION-PROOF FLUORESCENT LIGHT | 2x40W | 15kg | ||||
CFY40-1 EXPLOSION-PROOF FLUORESCENT LIGHT | 1x40W |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label, Color Inner Box, etc |
| Delivery | By Courier, By Air, By Sea |
| Port | Ningbo, Shanghai, Guangzhou |
