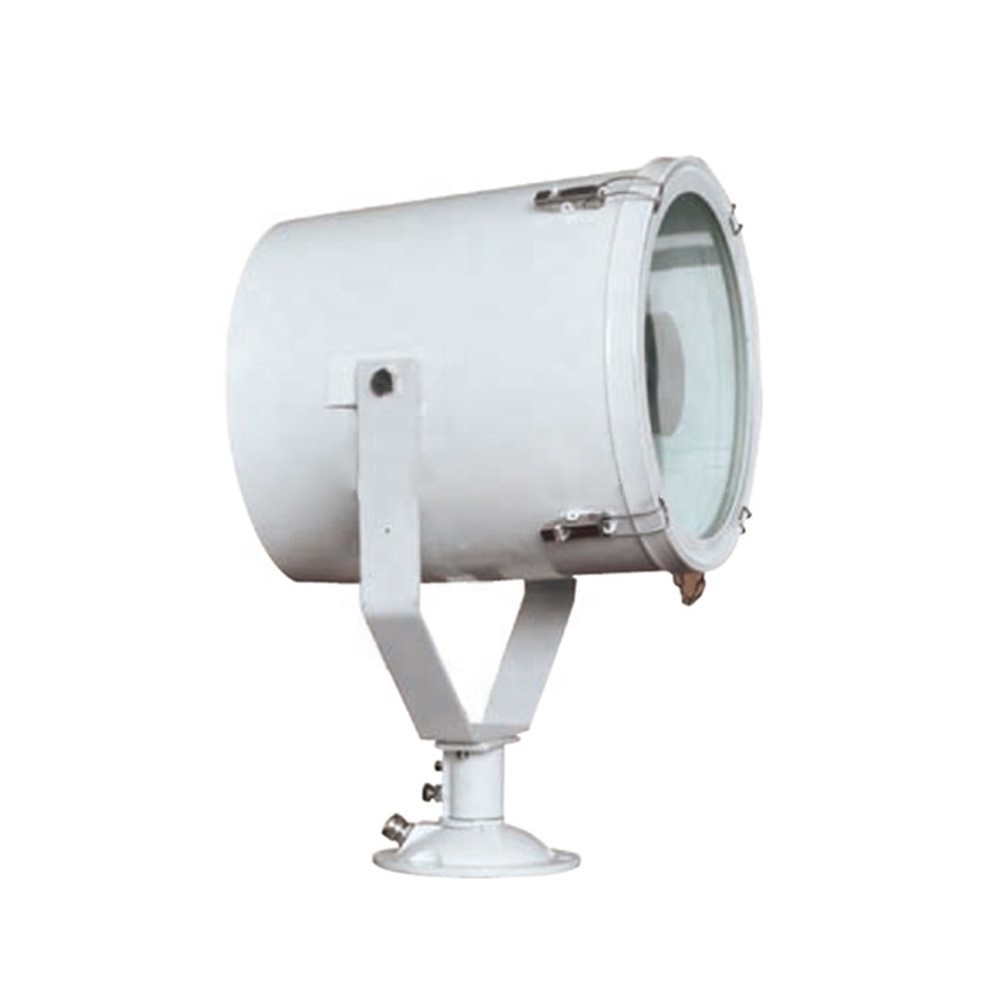

TG27 searchlight marine stainless steel halogen search light 1000w waterproof IP56
The scope of application
1. Applied to far distance illumination and searching when night navigation, especially for illumination of sea-route and two banks and surface search when accrose the complex water area, such as narrow channel and the inland river riveway etc.
2. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
Products characteristic
1. The shell is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lampshade, high quality brass base.
2. The lamp bend for +30° degrees by joy stick, adjust 350°degrees horizontally, equipped joy stick.
3. Parallel light-beam, far illumination distance, concentrated light.
4. Conform to<GRADE ENTRY NORMS FOR STEEL SHIPS>.
Specifications
| Name(Type) | Voltage | Power | Luminous flux | Lamp holder | Illuminant | Cable outside diameter | Protection class | Weight |
TG26 SEARCH LIGHT | 24V | 250W | 5600 | G6.35 | Tungsten halogen light | 10-12mm | IP56 | 20.5kg |
| 220V/50Hz 220V/60Hz | 300W | 6900 | GY9.5 | |||||
| 500W | 12500 | |||||||
TG27 SEARCH LIGHT | 1000W | 23000 | 20kg | |||||
TG28 SEARCH LIGHT | 2000W | 53000 | GY16 | 31.5kg |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label, Color Inner Box, etc |
| Delivery | By Courier, By Air, By Sea |
| Port | Ningbo, Shanghai, Guangzhou |
