Click on the image to view the original image
- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Model Number:
- CXH2-3P
- Part:
- Marine Light
- Product Name:
- 50M boat navigation light 112.5 degree marine Navigation lamp
- Visibility:
- 1n.m
- Lamp Holder:
- B15d
- Level arc:
- 112.5 degree
- Bulb Power:
- 12V/25W 40cd24V/25W 60cd
- Protection class:
- IP56
- Cable outside Diameter (mm):
- 10-12
- Color:
- Red
- Weight:
- 0.48kg
- Suit:
- Marine Boat Ship deck mount sailboat sailing Navigation Signal Lights
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 80X80X150 cm
- Single gross weight:
- 0.48 kg
- Package Type:
- Neutral packing
- Picture Example:
![package-img]()
- Lead Time:
- 7
50M boat navigation light 112.5 degree marine Navigation lamp
The scope of application
1. The scope of application.
2. Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic
1. The shell is made of high-strenth engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment

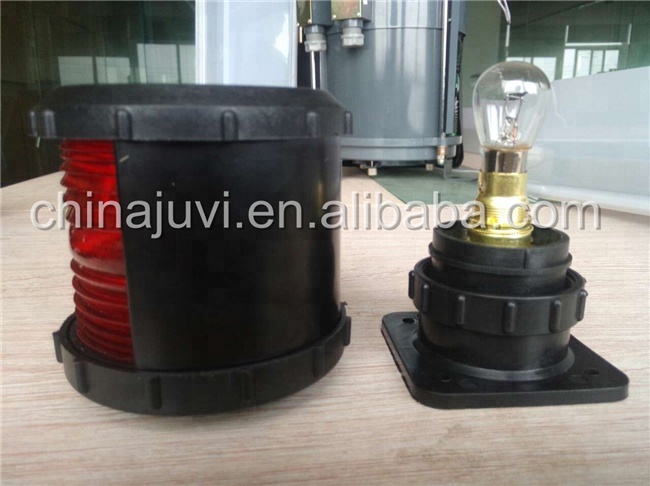

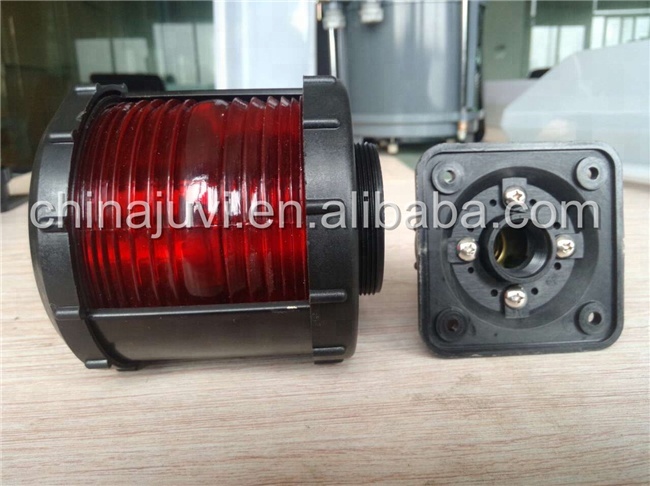

3. The connection between the lamp holder and the light base is clamshell type, it is easy to unscrew the top cover and replace the bulb, this structure is more stable than the previous plug-in type.
4. The signal lights adopt the signal light"s bulb which conform to the ship norm. and the average life is more than 700h.
5. The signal lights can work normally under the temperature -30℃-55℃.
Adopt standard
1. Conform to (THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972) and (GRADE ENTRY NORMS FOR STEEL SHIPS)
2. Conform to the international standard IEC60598-1-2008
3. Conform to the standard of marine electric signal light"s technical
Specifications
Name/Type | Visibility | Level arc | Color | Weight |
CXH1-3P Starboard light | 1n.m | 112.5° | Green | 0.48kg |
CXH2-3P Port light | 1n.m | 112.5° | Red | 0.48kg |
CXH3-3P Masthead light | 1n.m | 225° | White | 0.45kg |
CXH4-3P Stern light | 2n.m | 135° | White/Yellow | 0.47kg |
CXH6-3P All-round light | 2n.m | 360° | Red/Green/White | 0.42kg |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label,Color Inner Box,etc |
| Delivery | By Courier,By Air,By Sea |
| Port | Ningbo,Shanghai,Guangzhou |
