| 1. Approval quality | 2. Easy to Operate | 3. Certification: Applicable | 4. Certification: ISO9001:2008 |

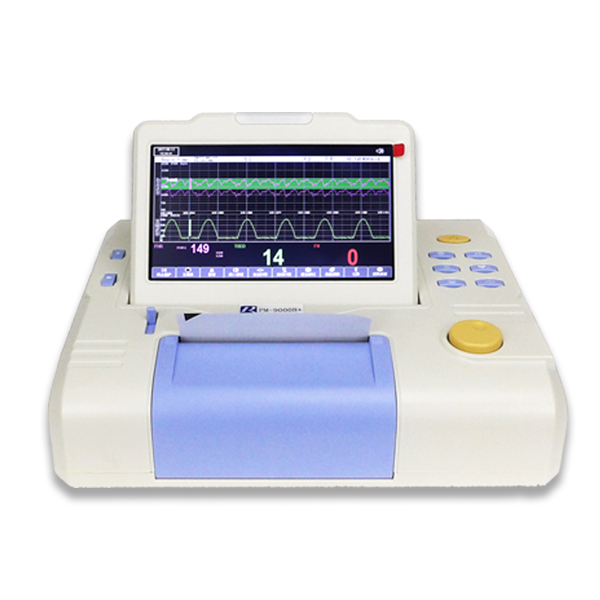

Characteristics
7-inch LED high-definition LCD display, touch screen optional
High sensitivity, low ultrasonic dose, 1MHz multi-chip digital pulse probe
Simultaneous monitoring of fetal heart rate, fetal movement, contractions
Using DSP technology, real-time correlation calculation and pattern recognition of fetal heart rate are achieved, and the detected fetal heart rate is accurate and reliable.
Parameters
Ultrasound probe: multi-crystal, wide beam. Pulse mode. High sensitivity
Ultrasound intensity: <5mw/cm2
Operating frequency: 1.0 ~ 3.0MHz (optional)
Signal Processing: Dedicated Digital Processing Unit
Measuring range: 30~240bpm
Alarm range: Upper limit: 160~200 bpm (optional)
Lower limit: 50~120 bpm (optional)
Maximum audio output power: 1.5W
Contraction pressure: 0 to 100 pressure units
Display: LCD display fetal heart rate curve, uterine contraction curve, fetal movement mark, doctor event mark time, volume and other monitoring status, and can freeze and play back
Power source: AC220V±20%.50Hz DC9V
Power consumption: <20W
Size: 295mmx240mmx73mm
Working environment: Temperature: 10~40° Relative temperature: 10~80%
Probe sound output: According to the international convention 1992 LEC1157, the sound pressure negative peak does not exceed 1 MPa (Mpa) sound beam sound intensity does not exceed 20 mW / cm2 (mW / cm2). The spatial peak instantaneous average sound intensity is not More than 100 mW / cm2 (mW / cm2). The sound intensity of this model does not exceed 5mW / cm2.
Configuration list
1, the host 1
2, ultrasound probe 1
3, contraction probe 1
4, fetal motion probe 1
5, belly belt 2
6, adapter 1
7, power cord 1
8, recording paper 2
9, the manual 1
| |
