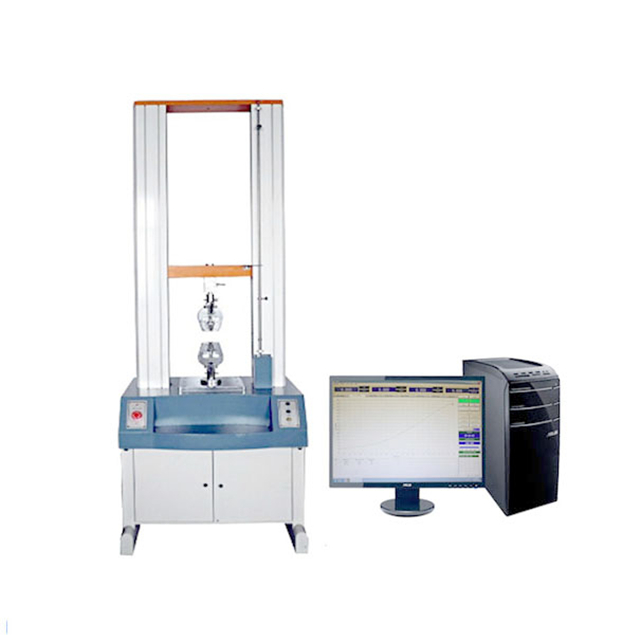

Universal Testing Machine Price for Tensile, Tear, Adhesive Strength Testing
Model: UTM-8001
Equipment summary:
UTM-8001 Computer Servo Type Universal Testing Machine is a new material testing machine that combined
with the electronic technology and mechanical transmission, it has accurate load speed, range of force
measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also
can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to
operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to
test the non-metallic and metallic materials which the load is less than 1ton.
Technical parameter:
| Model | UTM-8001 computer universal testing machine price |
| Max load | 5KN,1ton,2 ton |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000,regardless of inside and outside,constant the resolution |
| Load sensor | Basic configuration:sensor(max load): one; |
| Effective testing width | 390mm(can be widened according to customer’s requirement ) |
| Effective Tensile stroke | 800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
| Range of testing speed | 0.001~200mm/min ; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| Accuracy of measured deformation | Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety | Electronic-limit protection |
| Units | Kg, N, LB, TON, can be exchanged |
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply
of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality
products.We have 20 years exporting experience ,and established business relationship with 50
countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.
Our products including three ranges, please kindly find the details as below:
1)Laboratory Equipments: Microscope,Centrifuge,Water Bath,Stirrer Hotplate,Autoclave&sterilizer,
(UV, VIS, UV/VIS) Spectrophotometer, Incubator & Oven and so on.
2)Medical Equipments:Infant Incubator and Warmer, Xray Machine, Ultrasound Scanner, Anesthesia
Machine, Medical Ventilator, Suction Apparatus,ECG Hematology Analyzer and so on.
3)Medical Furnitures: Operating Table, Hospital & Examination Bed, Wheel Chair, Bedside Cabinet,
Trolley, Arm Crutches, Stretcher and so on.
We"ll attended MANY MEDICAL FAIRS in many countries every year, such as Singapore, Dubi,Amercia, like Medical Fair Asia ,Medical West Africa , FIME and so on.
1. Q: How long is the warranty time?
A: 12 Months
2. Q: What is the payment method?
A: Westunion, TT, Moneygram, Payapl, L/C etc.
3. Q: When do you delivery?
A: Usually in 7-30 days.
4. Q: Could you offer intallation or tranning oversea?
A: Yes, we offer the service for complex machine in charge.
5. Q: It is my 1st time purchase products oversea, how to promise its safe?
A: We are vertified company by Alibaba, and we attend many Intl.Fair every year.
