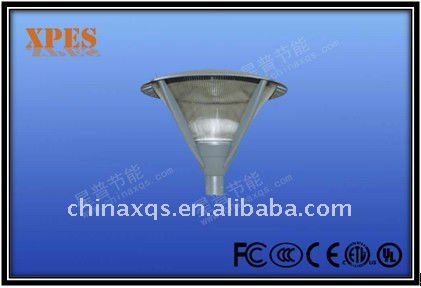

5 Years Warranty AC solar mushroom garden pillar light with CE/CET
Garden lighting
Model:XP-TY-602
Light Source:induction lamp 40W-60W
IP Rating:IP65
Package Dimension:73*70*54CM
Certification:SAA ETL CCC CE C-TICK CB FCC
Fixture
1.Lamp mounting fixture is made from high-grade aluminum alloy cast shell that is galvanized and
powdered coated ,which provide a strong and durable surface protection layer.
2.Lamp cover made from high -grade acrylic that offers good transparency and long life .
3.Extreme long lamp life of up to 100,000 hours.
Lamp and Ballast
1.40W-60W rectangle induction lamp with high lumen efficiency, high lumen
maintenance, long lifespan, and excellent CRI.
2.40W-60W electronic ballast with profiled aluminum case, high power factor (>0.98),
low energy loss, and long lifespan.
Applications
Parks, Shopping Malls, Courtyards, Historic Areas, etc.
Warning: Disable all power to the luminaire before conducting any maintenance or upgrade activity,
Failure to do so will create a hazardous and fatal working environment.
Fixture Dimension
Lighting Distribution Curve
Light Source Specification
Power (W) | Luminous | Current (A) | Lumen maintain | Efficacy (LM/W) | Working temperature | Life span |
40 | 3200 | 0.18 | ≥85 | 75-80 | 2700-6500 | 100 000 |
60 | 4800 | 0.27 | ≥85 | 75-80 | 2700-6500 | 100 000 |
80 | 6400 | 0.36 | ≥85 | 75-80 | 2700-6500 | 100 000 |
100 | 8200 | 0.45 | ≥85 | 75-80 | 2700-6500 | 100 000 |
150 | 12000 | 0.68 | ≥85 | 80-85 | 2700-6500 | 100 000 |
200 | 16000 | 0.91 | ≥85 | 80-85 | 2700-6500 | 100 000 |
250 | 20500 | 1.24 | ≥85 | 80-85 | 2700-6500 | 100 000 |
300 | 24000 | 1.36 | ≥85 | 80-85 | 2700-6500 | 100 000 |
Energy Saving Comparison
Engineer Cases
Why choose XPES?
1) Unique design
2) Quick to light up
3) Produce better light
4) Protect eyesight
5) Close to sunlight
6) Steady power output
7) Save energy bill
8) Protect environment
Our Main Products
Factory Show
From 2009 , Xingpu has developed 40-300W induction lamps and special lighting fixtures.
Several years later, Xingpu has good cooperative relationships with Chinese Electric Light
Source Detection Institution and famous universities. Facing the challenging world, we still
have long way to go, but we devote ourselves to the development of lighting industry and
international society with more advanced technology.
XPES always dedicates in lightening a new world, and goes forward in pace with global
lighting industry and strives for bringing a brighter life to the whole world.
