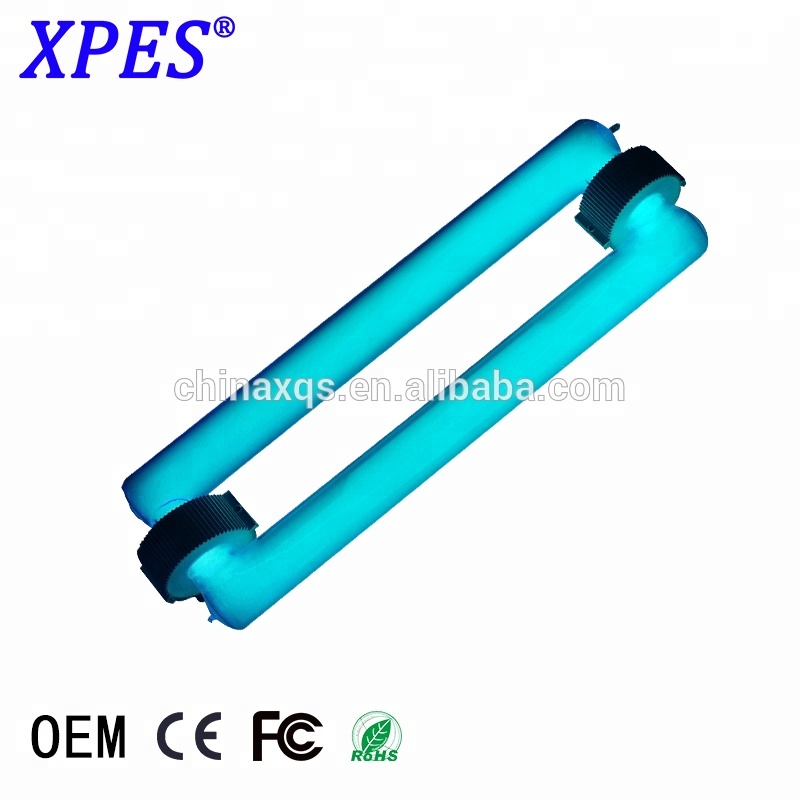

XPES High Power UV Germicidal lamps use a special glass that transmits ultra-violet light in a spectral band that can be effective for sterilisation. A proven technology for the destructionof air-borne bacteria, viruses and mold spores.Improved system efficiency. The UVC wavelength of 254 nm will inactivate bacteria, viruses, mold, and cysts by preventing pecification.
| Model | Power | Voltage | Current | Start Time | Power Factor | Lumens | CRI | Size |
| XP-SJ-LAMP | 300W | 100-300V | 1.36A | <0.5Sec | ≥0.99 | 24000lm | ≥80 | 388*340*90mm |
Advantages of XPES High Power UV germicidal lamp:
1. Using quality high purity quartz glass
2. Hot cathode,pre-heat start
3. Super long life: 100,000 hrs
4. Generally used in the sterilization and purifying of Aquarium
| Watt/W | testing period/ min | Test time / sec | Ozone concentration-/ppm | ozne generation | ozone generation peak value( g/KW.h) |
| 281.5 | 10 | 600 | 0.27 | 0.0055 | 0.006 |
| 20 | 1200 | 0.47 | 0.0048 | | |
| 30 | 1800 | 0.65 | 0.0044 | ||
| 40 | 2400 | 0.78 | 0.0040 | ||
| 50 | 3000 | 0.83 | 0.0034 | ||
| 60 | 3600 | 0.92 | 0.0031 | ||
| 70 | 4200 | 0.93 | 0.0027 | ||
| 80 | 4800 | 0.95 | 0.0024 | ||
| 90 | 5400 | 1.01 | 0.0023 | ||
| 100 | 6000 | 1.02 | 0.0021 | ||
| 110 | 6600 | 1.05 | 0.0020 | ||
| 120 | 7200 | 1.06 | 0.0018 |
Ultraviolet Sterilization is unmatched in its efficiency, simplicity, and dependability when applied as a microorganism disinfectant. UV sterilization is a proven solution to waterborne planktonic algae as well as other harmful pathogen problems.
Don’t look at the UV lamp directly when the UV lamp is igniting. Don’t irradiate the skin with UV-lamp.old a piece of ordinary glass before your eyes when you need to look at the UV-lamp. Please keep the surface of the tube clean to prevent the dust or the dirt from affecting the ultraviolet ray’s output. Please don’t touch the quartz glass with bare hands while installing the lamp and using it. The quartz glass can be cleaned by using alcohol tampon.
All kinds of exhaust gas treatment; paint exhaust gas treatment, chemical exhaust gas treatment, gas treatment essence, rubber exhaust gas treatment, landfill gas treatment, slaughterhouse exhaust gas treatment, fishmeal plant exhaust gas treatment, exhaust gas produced by sewage treatment, exhaust gas purification produces various hospitals, tannery exhaust gas treatment and so on.
Water treatment; wastewater treatment, drinking water projects, water disinfection, wastewater decolorization, TOC and VOC removal, etc.
