Click on the image to view the original image
There are three forms for badminton court lighting, natural lighting, artificial lighting and mixed lighting. Mixed lighting exists in most modern badminton court, among which artificial lighting is common lighting. To make the athletes accurately judge the ball height and drop point while designing a badminton court. First of all, make the best use of natural light and avoid glare to be reflected to eyes; then increase stability of luminance, uniformity and coordination of distribution. It is important not only for athletes to make good performance, but also for referee to judge accurately and enjoyment for audiences.
parameter :
Item | hot sale sport court indoor lighting badminton lighting |
Model | XP-CK-201 |
Power Wattage | 80W-300W |
Voltage | AC 100V-300V |
Color Temperature | 2700K-6500K |
Color Rendering Index | greater than 80Ra |
Operating Frequency | 140-250KHZ |
Protection Level | IP54 |
Lumen maintenance | Above 70% after 60,000 hours lifespan |
Packaging size | 54*54*39CM |
Applications | Industrial factories,Warehouses,Stadiums,Airports,Railway stations,Gas Stations, Supermarkets and other indoor locations. |
Certification | CB, CE, SAA,FCC,ETL,EMC |
| Model | Power | Voltage | Current | Start Time | Power Factor | Lumens | CRI | Size |
| XP-CK-201 | 80W | 100-300V | 0.36A | <0.5Sec | ≥0.99 | 6400 | ≥80 | 515*336mm |
| XP-CK-201 | 100W | 100-300V | 0.45A | <0.5Sec | ≥0.99 | 8000 | ≥80 | 515*336mm |
| XP-CK-201 | 120W | 100-300V | 0.54A | <0.5Sec | ≥0.99 | 9600 | ≥80 | 515*336mm |
| XP-CK-201 | 150W | 100-300V | 0.68A | <0.5Sec | ≥0.99 | 12000 | ≥80 | 515*336mm |
| XP-CK-201 | 200W | 100-300V | 0.90A | <0.5Sec | ≥0.99 | 17000 | ≥80 | 515*336mm |
| XP-CK-201 | 300W | 100-300V | 0.90A | <0.5Sec | ≥0.99 | 25500 | ≥80 | 515*336mm |
induction lamp
XPES Badminton Hall Lighting Design
Advantages of XPES induction lamp are: high color rendering CRI> 80 (Ra), the instantaneous re-start, no electrode long life 60,000 hours. More importantly, XPES induction lamp with no stroboscopic and no dazzle can make the athletes enjoy to play. Do not feel eye fatigue. So XPES induction lamp is ideal for sports facilities where is difficult to replace lamps with high costs, need a long life, soft light and higher color rendering etc.
So we design with:

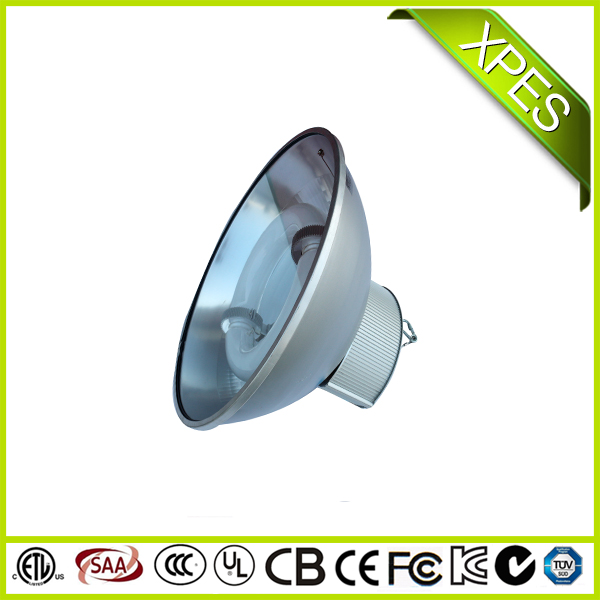

Badminton court dedicated lamp (XP-CK-201 200W) is without glaring and dazzling It’s illumination reach up to 300LUX.
Each component of XPES lamp (XP-CK-201) is designed specifically for badminton courts, to ensure a uniform distribution of light. The first choice for badminton courts lighting.
From 2009 , Xingpu has developed 40-300W induction lamps and special lighting fixtures. Several
years later, Xingpu has good cooperative relationships with Chinese Electric Light Source Detection
Institution and famous universities. Facing the challenging world, we stillhave long way to go, but we
devote ourselves to the development of lighting industry and international society with more advance
technology.
XPES always dedicates in lightening a new world, and goes forward in pace with global lighting indus
try and strives for bringing a brighter life to the whole world.
