- Place of Origin:
- Guangdong, China
- Brand Name:
- XPES
- Model Number:
- XP-SJ-LAMP
- Rated Power:
- 300W
- Voltage:
- 100V-300V
- Item Name:
- water uv sterilizer for pond fish
- UV type:
- UVC
- applications:
- water purification, air and surface sterilization
- base material:
- aluminum
- tube material:
- high purity quartz glass
- Spectral Range:
- 200nm ~ 400nm
- Rendering Index:
- 92.7
- long life:
- 100,000 hours
- Color Temperature:
- 30000K
- Power Factor:
- 0.998
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 41X39X94 cm
- Single gross weight:
- 4.0 kg
- Package Type:
- Standard export cartonswith polyfoam inside
- Lead Time:
- 2
Description:

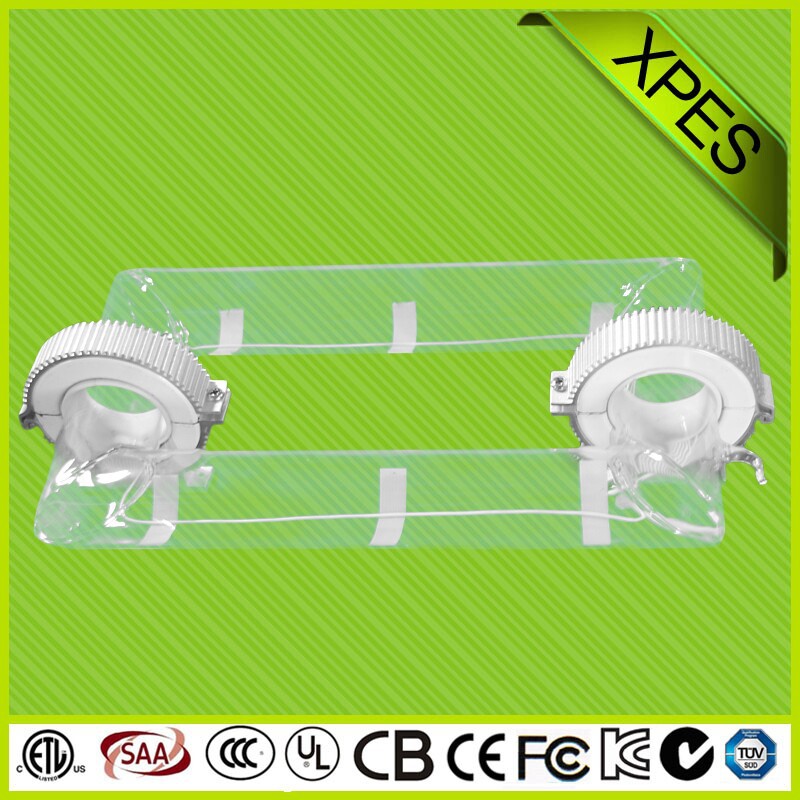

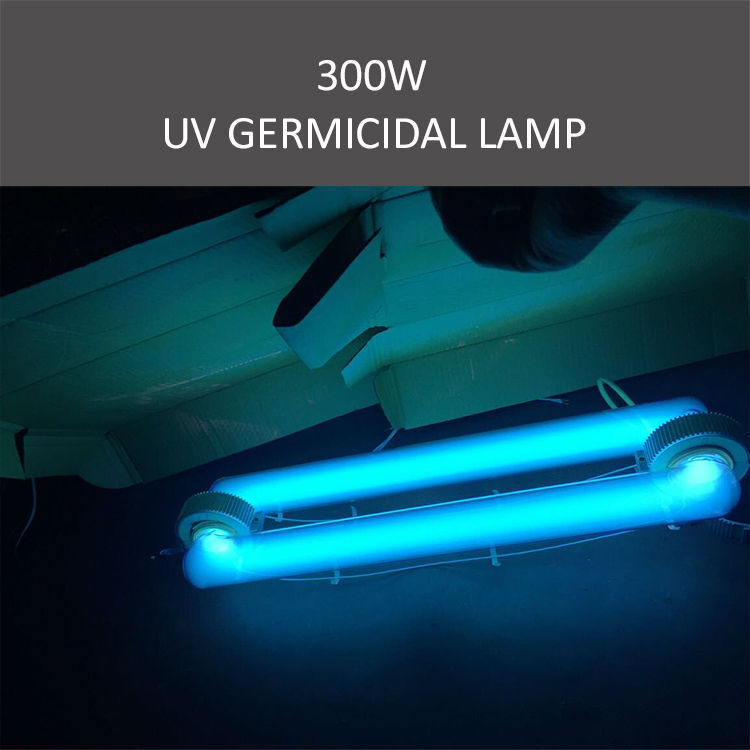

XPES UV Germicidal lamps use a special glass that transmits ultra-violet light in a spectral band that can be effective for sterilisation. A proven technology for the destructionof air-borne bacteria, viruses and mold spores.Improved system efficiency. The UVC wavelength of 254 nm will inactivate bacteria, viruses, mold, and cysts by preventing pecification.
Technical parameter:
Model | Power | Voltage | Current | Start Time | Power Factor | Lumens | CRI | Size |
XP-SJ-LAMP | 300W | 100-300V | 1.36A | <0.5Sec | ≥0.99 | 24000lm | ≥80 | 388*340*90mm |
Advantages of XPES UV germicidal lamp:
1. Using quality high purity quartz glass
2. Hot cathode,pre-heat start
3. Super long life: 100,000 hrs
4. Generally used in water purification and the sterilization and purifying of Aquarium
Testing:
Watt/W | testing period/ | Test time / sec | Ozone concentration -/ppm |
|
|
281.5 | 10 | 600 | 0.27 | 0.0055 | 0.006 |
20 | 1200 | 0.47 | 0.0048 |
| |
30 | 1800 | 0.65 | 0.0044 | ||
40 | 2400 | 0.78 | 0.0040 | ||
50 | 3000 | 0.83 | 0.0034 | ||
60 | 3600 | 0.92 | 0.0031 | ||
70 | 4200 | 0.93 | 0.0027 | ||
80 | 4800 | 0.95 | 0.0024 | ||
90 | 5400 | 1.01 | 0.0023 | ||
100 | 6000 | 1.02 | 0.0021 | ||
110 | 6600 | 1.05 | 0.0020 | ||
120 | 7200 | 1.06 | 0.0018 |
Ultraviolet Sterilization is unmatched in its efficiency, simplicity, and dependability when applied as a microorganism disinfectant. UV sterilization is a proven solution to waterborne planktonic algae as well as other harmful pathogen problems.
Warning:
Don’t look at the UV lamp directly when the UV lamp is igniting. Don’t irradiate the skin with UV-lamp. Hold a piece of ordinary glass before your eyes when you need to look at the UV-lamp. Please keep the surface of the tube clean to prevent the dust or the dirt from affecting the ultraviolet ray’s output. Please don’t touch the quartz glass with bare hands while installing the lamp and using it. The quartz glass can be cleaned by using alcohol tampon.
Applications:
Water purification, air and surface sterilization.
Also the germicidal lamp is commonly used in school, hotel, home, office and other environments for air and surface sterilization.
