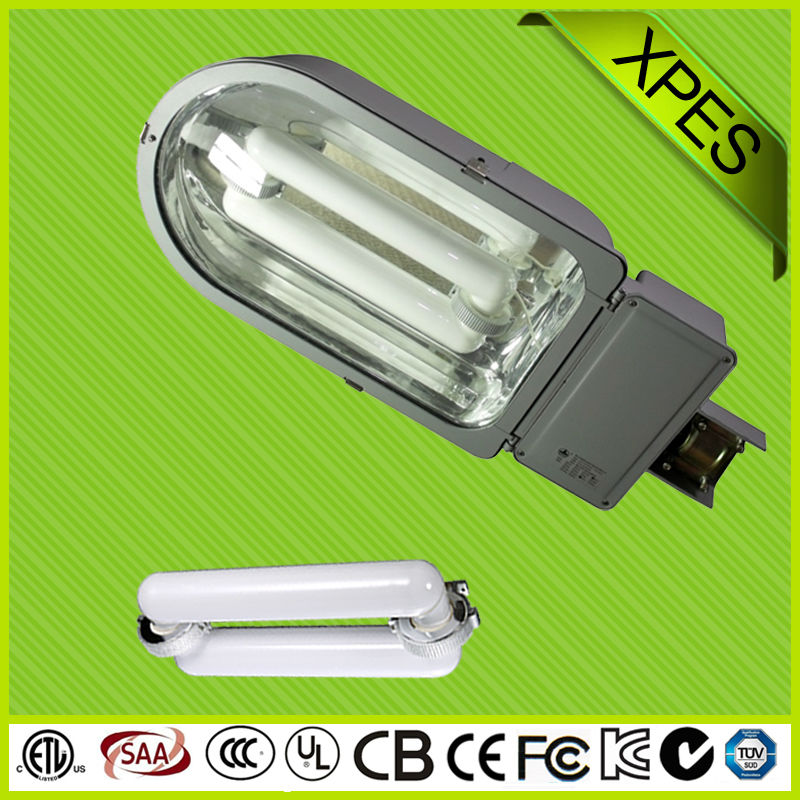

manufacturers highways magnetic outdoor street lighting induction type lamp
Click on the image to view the original image
Product: views:5manufacturers highways magnetic outdoor street lighting induction type lamp
Branch: XPES
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-12-03 17:37
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
XPES
Model Number:
XP-LD-306
Application:
Road way, freeway, highway, parking lots,off-street areas
Power Supply:
AC
material:
aluminum/toughened glass,electrostatis spray
voltage:
AC100V-300V
Power:
80W-250W
working temperature:
-25-+50℃
color temperature:
2700K-6500K
protection level:
IP65
install height:
9-12M
life span:
5-10 years
warranty:
5 years
CRI:
≥80Ra
Lampshade Material:
Toughened Glass
Lighting Bulbs & Tube:
induction lamp
Supply Ability
Supply Ability:
200 Set/Sets per Day
Packaging & Delivery
Port
Guangzhou
Lead Time:
3 workdays

hot sale energy saving bulbs ultra-bright adjustable 80w outdoor street light








Product Description





Induction Streetlight:

Model

XP-LD-306

Power Wattage

80W-250W

Voltage

100V-300V

Color Temperature

2700K-6500K

Light efficiency

80-85LM/W

Color Rendering Index

greater than 80Ra

Power Factor

0.98

Operating Frequency

140-250KHZ

Protection Level

IP65

Anti-Corrosion Grade

WF1

Packaging size

98*43*28CM

Fixture:

Fixture with Special Design

Lamp Fixture

Die casting aluminum with smooth surface and light structure

Lamp shape

tempered glass , with perfect transparency and high intensity

Fixture Reflector

High purity aluminum reflector, processed with electrochemical polishing.

Fixture Surface

Fixture surface uses static spraying plastic processing,heat-resistance and climate-resistance

Ballast Installation

All-in-one design, electrical components are installed inside the fixture,

convenient operation and easy maintenance.





Lamp and Ballast:



 1.80W-250W rectangle induction lamp with high lumen efficiency, high lumen maintenance, long

 lifespan, and excellent CRI.



2.80W-250W electronic ballast with profiled aluminum case, high power factor (>0.98), low energy

 loss, and long lifespan.



Fixture Dimension and Lighting Distribution Curve:









 Light Source Specification:

ModelPower VoltageCurrent

Start

Time

Power

Factor

Lumens CRI  Size
XP-LD-30680W100-300V 0.36A<0.5Sec≥0.996400≥80 895*380*200mm
XP-LD-306100W 100-300V 0.45A<0.5Sec≥0.998000≥80  895*380*200mm
XP-LD-306120W 100-300V 0.54A<0.5Sec≥0.999600≥80  895*380*200mm
XP-LD-306150W 100-300V 0.68A<0.5Sec≥0.9912000≥80  895*380*200mm
XP-LD-306250W 100-300V 0.90A<0.5Sec≥0.9920000≥80  895*380*200mm





Comparison:







Engineer Cases:



Applications:



Road way, freeway, highway, parking lots,off-street areas
