Home > Products > LVD Mining Explosion proof Lamp 80W (Model XP-FB-879)

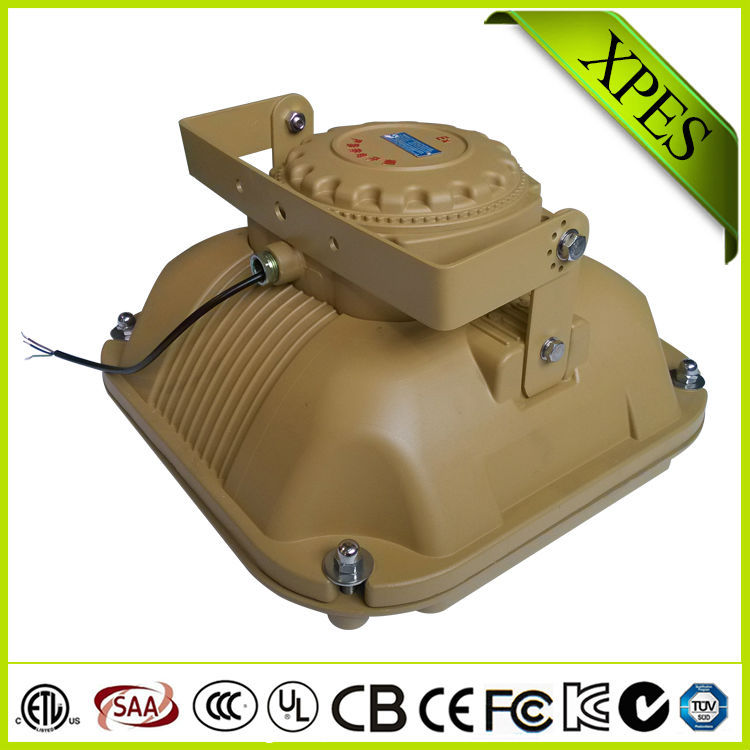

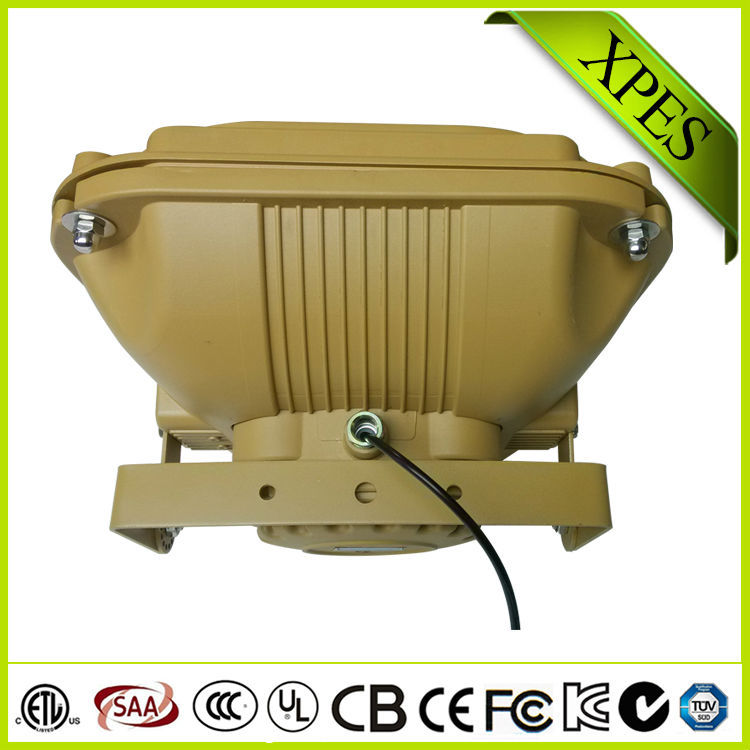

LVD Mining Explosion proof Lamp 80W (Model XP-FB-879)
Click on the image to view the original image
Product： views：4LVD Mining Explosion proof Lamp 80W (Model XP-FB-879)
Branch： Xingpu
Size： 50X50X29 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 17:37
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
100-300
Lamp Power(W):
200
CRI (Ra>):
80
Lamp Luminous Flux(lm):
16000
Working Lifetime(Hour):
100000
Working Temperature(℃):
-25 - 50
Place of Origin:
Guangdong, China
Brand Name:
Xingpu
Model Number:
XP-FB-879
Item Name:
LVD Mining Explosion proof Lamp 80W (Model XP-FB-879)
Lifespan:
100,000 hours
Color Temperature:
2700K,4100K,5000K,6500K
CRI:
> 80Ra
Lumen Efficiency:
High lumen efficiency, > 80 Lm/W
Working Frequency:
140 KHz
Working Voltage:
AC 12V-220V
Working Temperature:
-25 ℃ to +50 ℃
Application:
outdoor or indoor explosion-proof lighting required, etc.
Lighting Bulbs:
Magnetic induction electrodeless
Item Type:
Explosion-proof Lights
IP Rating:
IP65
Light Source:
Induction Lamps
Color Temperature(CCT):
COOL WHITE
Certification:
C-tick, CCC, ce, EMC, FCC, Saa, UL
Lamp Body Material:
Aluminum
Lamp Luminous Efficiency(lm/w):
80

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X29 cm
Single gross weight:
11.0 kg
Package Type:
Standard Export Cartons with Polyfoam inside.
Lead Time:
7

LVD Mining Explosion proof Lamp 80W (Model XP-FB-879)

Product Features

1. The lamp explosion-proof type of composite or dust explosion-proof, suitable for gas or dust explosion

hazard lighting.

2. The lamp is mainly composed of increased safety light chamber, flameproof electrical chamber and

mounting bracket and so on.

3. The lamp housing is made of aluminum die-casting, flat glass translucent panels, light cavity with a

mirror reflector. Polyester powder coating the surface of the lamp housing.

4. combination lamps explosion cavity surface can be provided rubber gasket, improving overall lighting

protection performance. Suitable for wet or outdoor use explosion hazard.

5. The lamp has good corrosion resistance, high luminous efficiency, wide illumination range, soft light

of the advantages of durability.

6. Aesthetically great, easy to install and maintenance.

7. The lamp can seat-mounted, wall-mounted suction, ceiling-mounted and pole-mounted pedestal or pole

mounting bracket can be used for down 30 ° up 45 ° 5 ° each stall regulation. Way down the rest of the

installation (left) up (to the right), respectively for 45 ° adjustment.

8. The lamp has a pressure-proof outer cable inlets for proof flexible tube or three-core rubber sheathed

cable entry.

9. This applies electromagnetic induction lamp light source. Light source has a long life, high luminous

efficiency, soft light, shock resistance and good, long-term maintenance free.

Technical parameters (technical conditions)

  • execution GB3836.1, GB3836.2 and GB3836.3, "explosive gas environment with electrical equipment not"

           (equivalent to IEC60079 and EN series of standards). GB12476.1 "combustible dust electrical equipment"

           (equivalent to IEC61241 and EN Series standard Huai).

  • proof mark: ExedⅡCT3; dust proof mark: DIPA20 TA.T3
  • rated working voltage: 220V, 50Hz.
  • Light Source: Induction Lamp 150W, 200W.
  • Enclosure protection class: IP65.
  • Corrosion grade: WF2.
  • intakes: G3 / 4 ".
  • cable diameter: φ9 ~ φ12.5mm.



Projects in Pakistan
