IECEX and ATEX Certified IP66 Explosion Proof 85w 250w 400w Flood Light

Click on the image to view the original image

Product：	views：4IECEX and ATEX Certified IP66 Explosion Proof 85w 250w 400w Flood Light
Branch：	CZ
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:16

Product Details

Overview

Quick Details

Input Voltage(V):: 220V-240V

Working Lifetime(Hour):: 50000

Place of Origin:: Zhejiang, China

Brand Name:: CZ

Application:: ROAD

Working Temperature(℃):: -40 - 50

Item Type:: Flood Lights

Color Temperature(CCT):: COOL WHITE

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP66

Intended use:: zone 1 and zone 2,zone 21 and zone 22

Degree of protection:: IP66

Ambient temperature:: -40°c- +55°c

Terminal:: L1, N cage type terminal 2-2.5 mm2, PE terminal: 2 x 10 mm2

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Standard carton,or we can do as your requirements.

Port: Shanghai

all our certifications is REAL ONE.

NOT FAKE , NOT FAKE , NOT FAKE !!!

PLEASE CONTACT US TO SHOW YOU!!!

Certification	Ex mark
IECEx	Ex de II B T∗ Gb Ex t IIIC T∗ °C Db
ATEX	II 2GD, Ex de II B T∗ Gb Ex t IIIC T ∗°C Db

Intended use	zone1 and zone2 zone21 and zone22
Ambient temperature	-40°C≤Ta≤+55°C
Degree of protection	IP66
Rated voltage	220V AC, 230V AC, 240V AC 50Hz, 60Hz
Cable entry	(Standard configuration)Moulded plastic 1 x M25x 1.5, Outside diameter: Φ8- 17mm Moulded plastic 1 x M25 x 1.5 stopping plug
Terminal	L1, N cage type terminal 2-2.5mm², PE terminal: 2 x 10mm²

Descriptions:

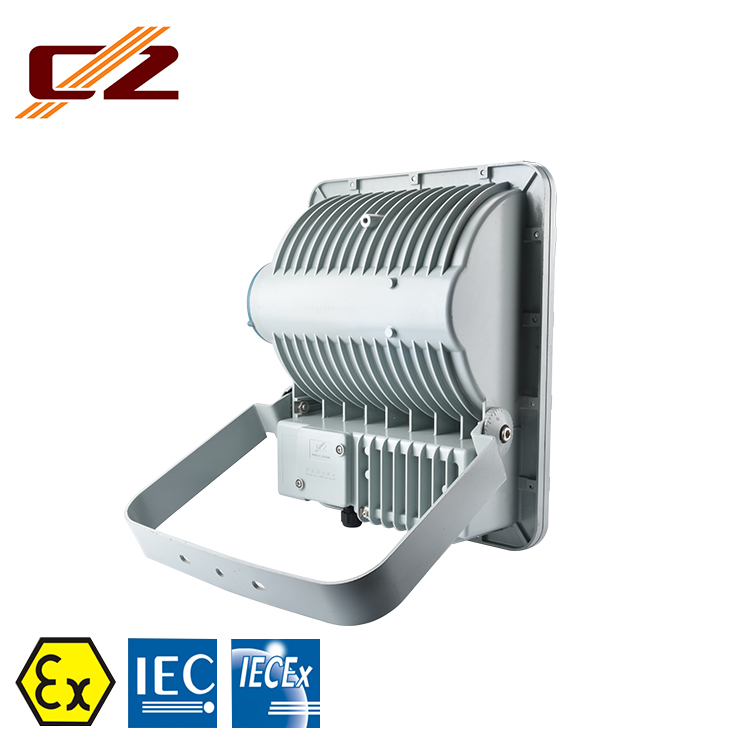

The enclosures of explosion-proof floodlight light ftting are manufactured in die-cast aluminum alloy with epoxy resin powder sprayed on the surface, so that they have good anti -corrosion performance. The transparent shield is made by the toughened glass of borosilicate, and the exposed fasteners are the stainless steel.The high purity aluminum reflector with broad iluminated area and high-brightness is mounted in. Explosion-proof light fitig"s terminal box side entry is suitable for rubber-coated and the armored cable wiring. The internationally certified cage type terminals of PHOENIX are selected as the internal terminals which are convenient for wiring,The electric appliance such as metal halide lamp, high pressure sodium vapor lamp,electromagnetic induction energy saving lamp, ballast and trigger can be mounted inside. It can satisfy the requirements in petrochemical, chemical and marine industries.
The degree of protection is up to IP66.
The bulbs of metal halide lamp and high pressure sodium vapor lamp have the function of shockproof protection. It is convenient to change the bulb only from the side.

There is a scale panel on the mounting bracket.

It is convenient to be mounted and maintained .
International IECEx Approval, Europe union ATEX Approval.

Order specifications:
