Home > Products > 2018 IECEX ATEX Certified Explosion-proof Warning Light
2018 IECEX ATEX Certified Explosion-proof Warning Light
Click on the image to view the original image
Product： views：32018 IECEX ATEX Certified Explosion-proof Warning Light
Branch： CZ
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:16
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
24V AC/DC,110-240VAC
Lamp Power(W):
10
CRI (Ra>):
70
Lamp Luminous Flux(lm):
16720
IP Rating:
IP66
Working Lifetime(Hour):
50000
Working Temperature(℃):
-40 - 55
Emitting Color:
Red
Place of Origin:
Zhejiang, China
Brand Name:
CZ
Light Source:
LED
Intended use:
zone 1 and zone 2,zone 21 and zone 22
Degree of protection:
IP66
Ambient temperature:
-20°c- +55°c
Terminal:
L1, N cage type terminal 2-2.5 mm2, PE terminal: 2 x 10 mm2
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Cool White
Lamp Luminous Efficiency(lm/w):
110
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard carton,or we can do as your requirements.
Port
Shanghai



all our certifications is  REAL ONE.

NOT FAKE , NOT FAKE , NOT FAKE !!!

PLEASE CONTACT US TO SHOW YOU!!!




CertificationEx mark
IECExEx de II C T6 Gb  Ex tb IIIC T80 °C Db
ATEX II 2GD, Ex de II C T6 Gb  Ex tb IIIC T 80°C Db



Intended use

 zone1 and zone2

 zone21 and zone22

Ambient temperature -40°C≤Ta≤+55°C
Degree of protection IP66
Cable entry(Standard configuration)Moulded plastic 1 x M25x 1.5,
Outside diameter: Φ8- 17mm
Terminal L1, N cage type terminal 2-2.5mm2, PE terminal: 2 x 10mm2



Descriptions:

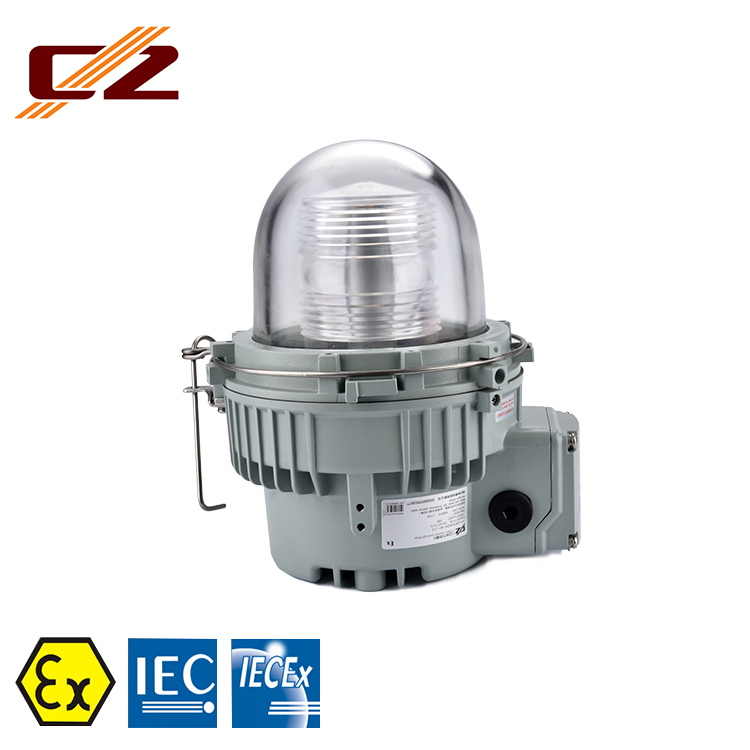

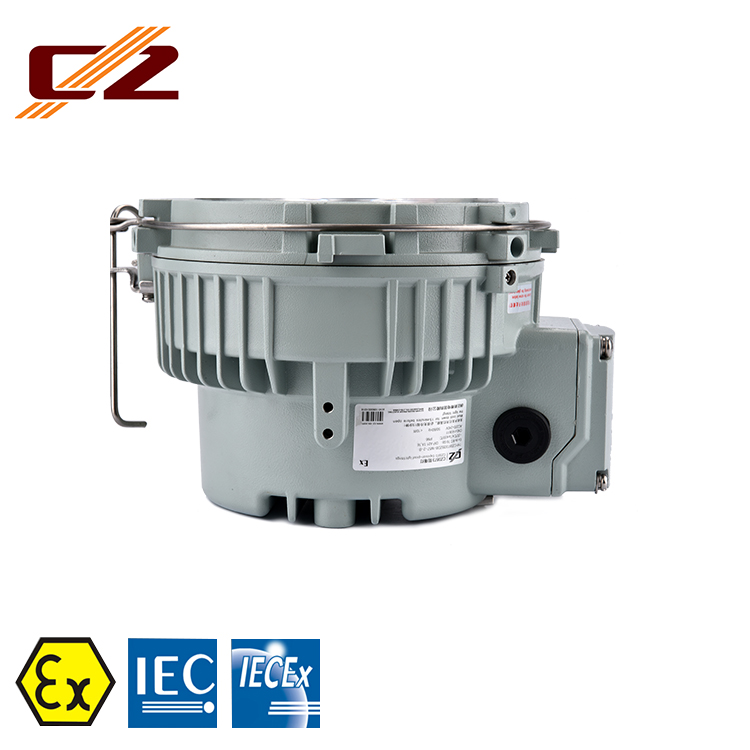

The enclosures of explosion-proof light fittings are manufactured of die-cast aluminum alloy, with the surfaces sprayed epoxy resin powder, therefore they have good anti-corrosion performance. The transparent shield is made by the toughened glass of borosilicate, and the exposed fasteners are the stainless steel. Explosion-proof light ftting"sterminal box side entry is suitable for rubber-coated and the armored cable wiring.The internationally certified PHOENIX cage type terminals are selected as the internal terminals, which are convenient for wiring. LED warninglight is supplied inside. Unique heat insulation design united with the exterior high density" radiator in the explosion-proof light ftting to cause the radiation effect will be better. For light and signal transmission in such fields as mechanical, fire protection, aviation.

The mounting ways of the explosion-proof light fitigs are seater type and pendant type.
  The highest class of flameproof is up to IIC.

  The degree of protection is up to IP66.

  IECEx, ATEX International certification.

Order specifications:

Code of cable gland:
