| Certification | Ex mark |
| IECEx | EX db eb op is q IIC T5/T6 Gb Ex tb IIIC T95°C/130°C Db |
| ATEX |
|
| Intended use | zone1 and zone2 zone21 and zone22 | |
| Ambient temperature | -40°C≤Ta≤+40°C/55°C | |
| Degree of protection | IP66 | |
| Terminals | L1, N cage type terminal 2-2.5mm2, PE terminal: 2 x 10mm2 | |
| Cable entry | B-Bracket type lamp (Standard configuration) E-Wall type lamp (Standard configuration) Moulded plastic 3 x M25x 1.5 stopping plugs | |
Descriptions:

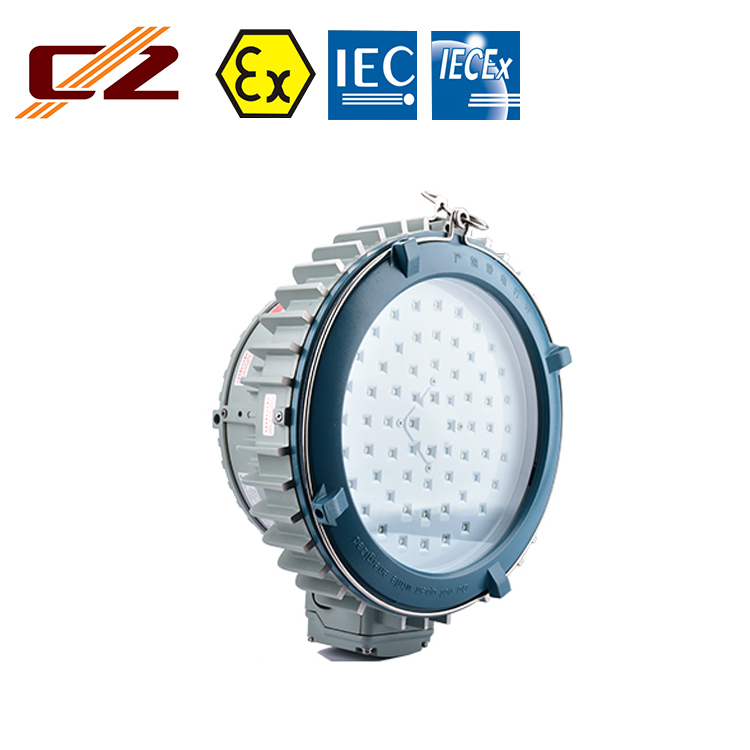

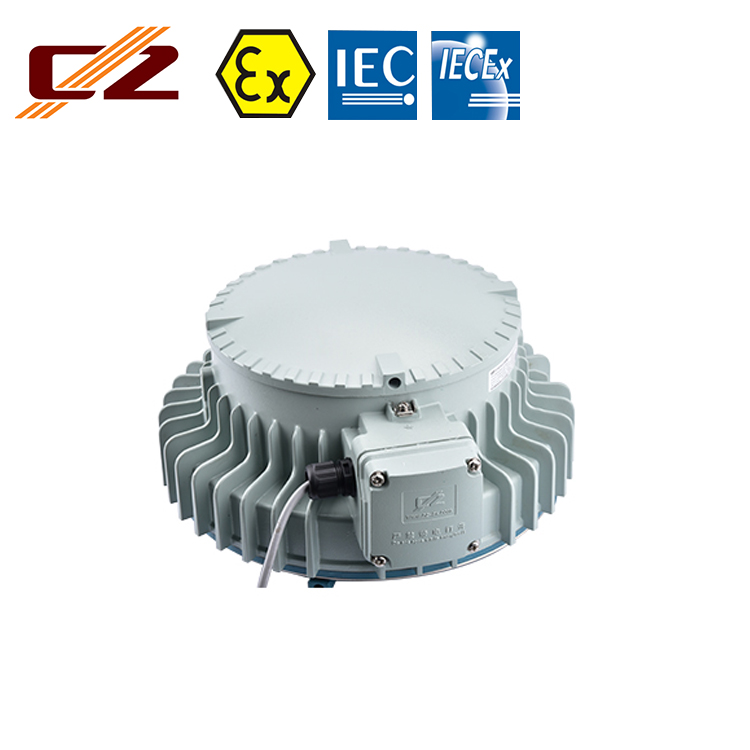

The enclosures of LED explosion-proof light fitings are manufactured by die-cast aluminum alloy, with epoxy resin powder sprayed on the surtaces. Therefore, they have good anti corrosion performance.The transparent cover is made by the toughened glass , and the exposed fasteners are made of stainless The internationally certified PHOENIX cage type terminals are selected as the internal terminals, which are convenient for the wiring. The Cree LED pellets inside form light source modules through professional optics Is equipped with three kinds of ilumination Angle to choose from. Heat disposal which is designed with thermology analysis and the heat conducting structure of specifically made aluminum base board ensure good operational heat release. It can satisfy the related requirements of illumination in petrochemical, chemical and Marine industries.
Explosion-proof light fitingsg can be sorted as: bracket type, platform type, wall type and street type.
The mounting ways of the explosion-proof platform light fitings C-90°C are fence type and platform flange type.
The mounting ways of the explosion-proof platform light fitings D-25°C are fence type and platform flange type.
There is a feature of good electromagnetic compatibility and it does not cause interference to the system power grid.
There is a good performance of vibration due to the LED is the solid-state light source.
The degree of protection is up to IP 66.
It is convenient to be mounted and maintained.
Order specification:
Code of cable gland:
Outline and installation dimensions:
Mounting ways and outline dimensions:
Q1. Can I have a sample order for testing?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 20 sets.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
