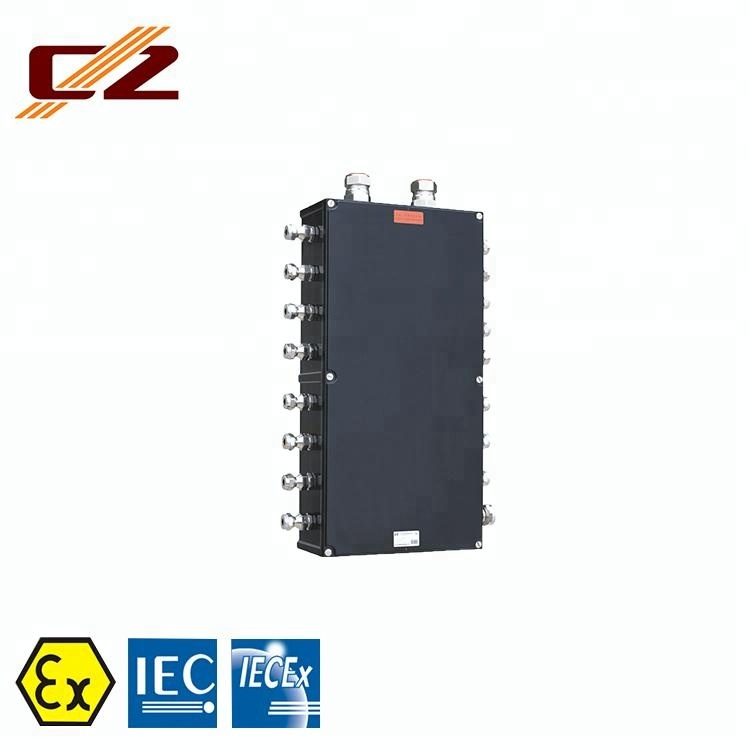

Glass fibre reinforced polyester plastic watertight explosion proof junction box

Click on the image to view the original image

Product：	views：3Glass fibre reinforced polyester plastic watertight explosion proof junction box
Branch：	CZ
Type：	Junction Box
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:16

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: CZ

Model Number:: CZ-F20

Protection Level:: IP65

Type:: Junction Box

External Size:: M16~M63

Degree of protection:: IP65

Material:: Glass fibre reinforced polyester (SMC) of static resistence

Intended use:: zone1,zone1 and zone2 ; zone21,zone21 and zone22

Certificate:: IECEx, ATEX

Ambient temperature use:: -40°C~+40°C/55°C

Rated current:: Max 400A

Rated voltage:: Max 1100V

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: carton

Port: Shanghai or Ningbo

Certification

Ex mark

IECEx

Ex e IIC T6/T5 Gb Ex tD A21 T80°C/T95°C (For non-intrinsic safety eircuit)

Ex ia/ib IIA/IIB/IIC T6/T5 Ga/Gb Ex tD A20 T80°C/T95°C (For intrinsic safety cireuit)

ATEX

Ex II2GD Ex e IIC T6/T5 Gb Ex tD A21 T80°C/T95°C (For non-intrinsic safety circuit)

Ex II2GD Ex ia/ib IIA/IIB/IIC T6/T5 Ga/Gb Ex tD A20 T80°C/ T95°C (For inrinsic safety eircuit)

Intended use	zone1,zone1 and zone2 zone21,zone21 and zone22
Ambient temperature	-40°C≤Ta≤+40°C/55°C
Degree of protection	IP65
Material of enclosure	Glass fibre reinforced polyester (SMC) of static resistence
Rated voltage	Max 400A

Descriptions:
The enclosures of terminal boxes are made of glass fibre reinforced polyester. All the metal elementsare anti-corrosive. Concave- convex joints between the covers and bodies are designed to mount an air- foam silicone bar, which secure a degree of protection IP65. Terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits.
Terminal boxes have more specifications. Built-in Ex e terminals have specifications for 1.5 ~ 240mm² and connect and fix the entry leads.
Different type and specification cable glands apply to different cable entries. The entry moulded plasticsor metal cable glands.The unused entries must be sealed with the stopping plugs.
