| Certification | Ex mark |
| IECEx | Ex e ib mb IIC Gb / Ex e ib mb IIC GB DIP A21 |
| ATEX | II 2GD Ex e ib mb IIC Gb Ex ib tb IIIC Db |
| Intended use | zone1 and zone2 zone21 and zone22 | |
| Ambient temperature | -40°C≤Ta≤+55°C | |
| Degree of protection | IP66 | |
| Rated voltage | AC/DCIO-28V, AC/DC20-250V | |
| Rated frequency | 50/60Hz | |
| Sound pressure level | 60dB ( at 30cm ) | |
Descriptions:

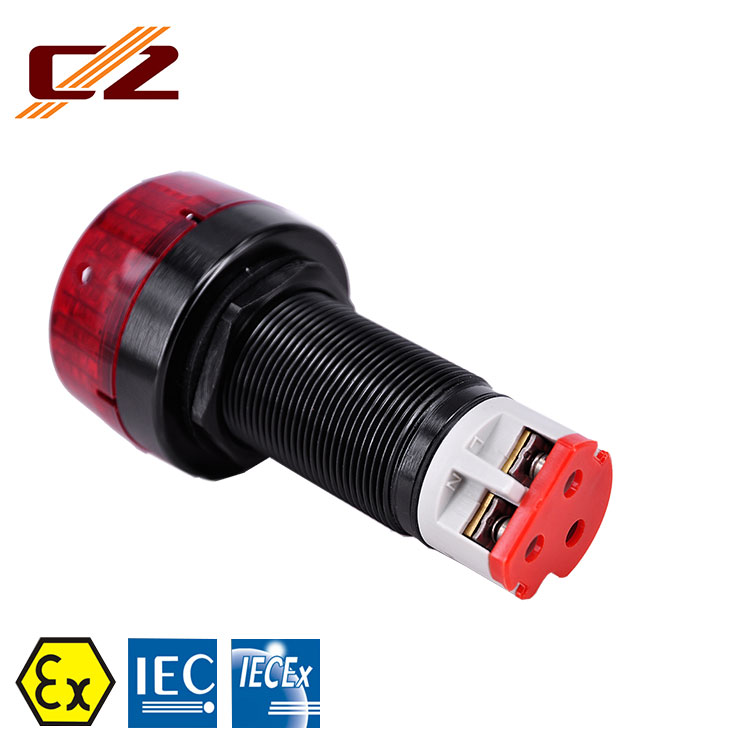

The standard diameter of front operation head of board front mounting rail type, board back type is 30mm, which is mounted on the board of I up to 6mm. The explosion—proof component of board front type is mounted on the standard rail of 35mm or fixed by bolt. The explosion—proof component of board back type are connected to the pre—mounted front operation head part with a clamp. The component of board front mounting rail type and board back type are attached by the terminals. The explosion—proof component of board front mounting rail type and board back type shall be mounted in the enclosure of increased safety "e" which the protection degree is up to IP54.
Order specifications:
Outline dimensions:
Board front mounting rail type mounting: May be held on mounting rails TS35*7.5 or with screws
Board back type mounting:On 1-6mm panel
Q1. Can I have a sample order for testing?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100 pcs .
Q3. Do you have any MOQ limit order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
