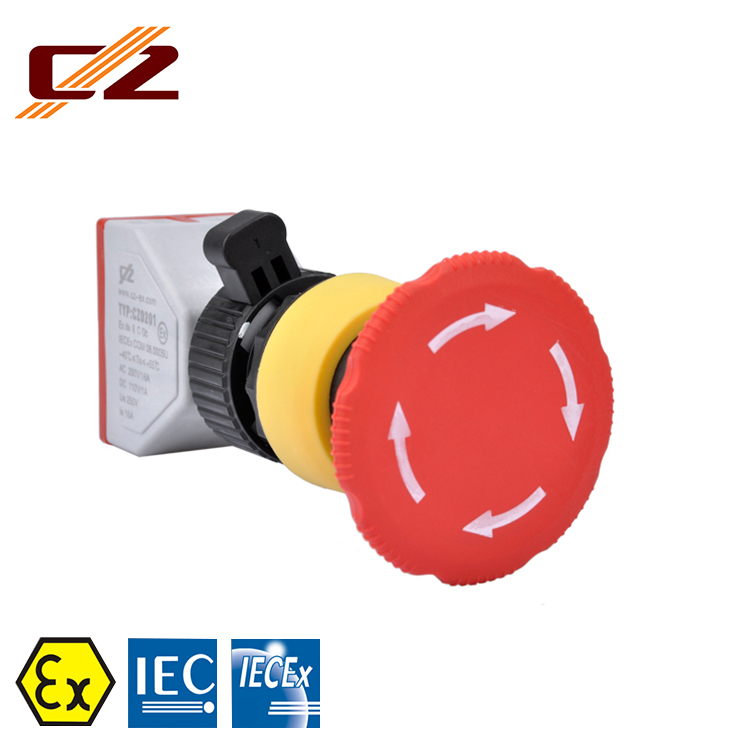

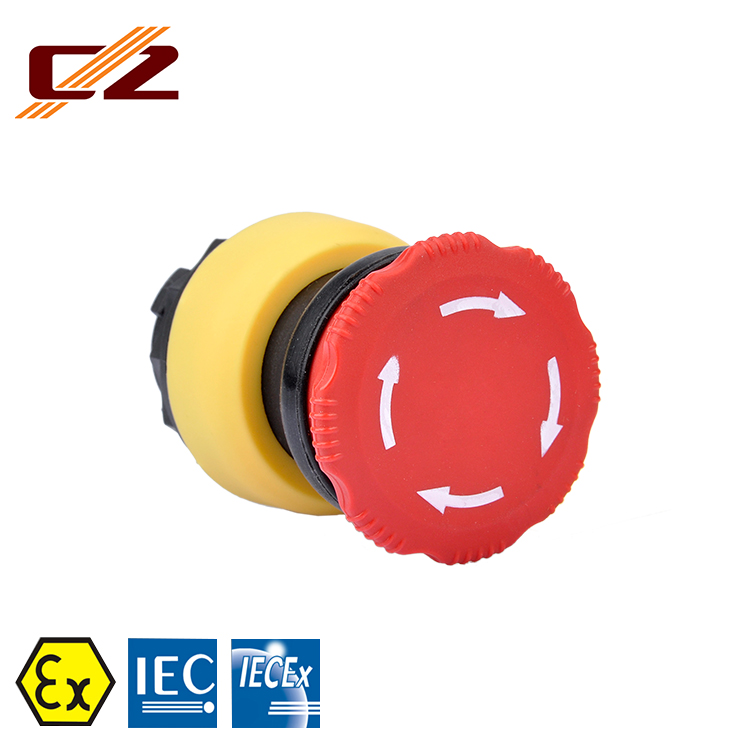

IP20 full plastic explosion proof rotary emergency push button

Click on the image to view the original image

Product：	views：2IP20 full plastic explosion proof rotary emergency push button
Branch：	CZ
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:16

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: CZ

Model Number:: CZ0201-P6

Protection Level:: IP20

Max. Current:: AC 16A, DC 1A

Max. Voltage:: AC250V, DC110V

Material:: ABS Plastic

Operation type:: Momentory

Certificate:: IEC Ex& ATEX

Button color:: Red

Teminals:: 2 x 2.5 sqmm

Mechanical life:: more than 1,000,000 times

Function:: Electronic Control System

Intended use:: zone 1, zone 2, class 21, class 22

Ambient temperature use:: -40 to +55

Product type:: Power Push Button Switch

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 8 pieces packed in one carton box, the measurement is about 200*200*150mm

Port: Shanghai, Ningbo

all our certifications is REAL ONE.

NOT FAKE , NOT FAKE , NOT FAKE !!!

PLEASE CONTACT US TO SHOW YOU!!!

Certification	Ex mark
IECEx	Ex de IIC T6 GB Ex tb IIIC T 80°C Db
ATEX	II 2GD, Ex de IIC T6 Gb Ex tb IIIC T 80°C Db

Intended use	zone1 and zone2 zone21 and zone22
Ambient temperature	-40°C≤Ta≤55°C
Degree of protection	IP66
Operation head material	Polyamide
Rated voltage/current	AC250V/16A DC110V/1A
mechanical life	1000000 times
Conformity	CE 0575

Descriptions:
The standard diameter of front operation head of board front mounting rail type, board back type is 30mm, which is mounted on the board of I up to 6mm. The explosion—proof component of board front type is mounted on the standard rail of 35mm or fixed by bolt. The explosion—proof component of board back type are connected to the pre—mounted front operation head part with a clamp. The component of board front mounting rail type and board back type are attached by the terminals. The explosion—proof component of board front mounting rail type and board back type shall be mounted in the enclosure of increased safety "e" which the protection degree is up to IP54.
The various kinds of type of explosion—proof button components and explosion—proof switch components can be combined when the different operation heads are equipped with the explosion—proof switch module of board front mounting rail type and board back type.

Order specifications:
