| Certification | Ex mark |
| IECEx | Ex db eb mb op is q IIC T5/T6 Gb Ex tb IIIC T80°C/85°C Db |
| ATEX | II 2G DEx db eb mb op is q IIC T5/T6 GbT80°C/85°C Db |
| Intended use | zone1 and zone2 zone21 and zone22 | |
| Ambient temperature | -40°C≤Ta≤+50°C/55°C | |
| Degree of protection | IP66 | |
| Terminals | L1, L2, L N, PE, each terminal 2X 1.5- 10mm2 | |
| Emergency illuminating time | >120 (min) | |
| Emergency starting time | 0.1(S) | |
| Pole mounting | Moulded plastie 1×M25×1.5 cable gland,Outside diameter of cable:Φ 8- 17mm | |
| Recharging time | 24h | |
| Cable entry | Moulded plastie 1×M25×1.5 cable gland, Outside diameter of cable:Φ 8-1 7mm Moulded plastic 2×M25×1.5 stopping plugs | |
Descriptions:

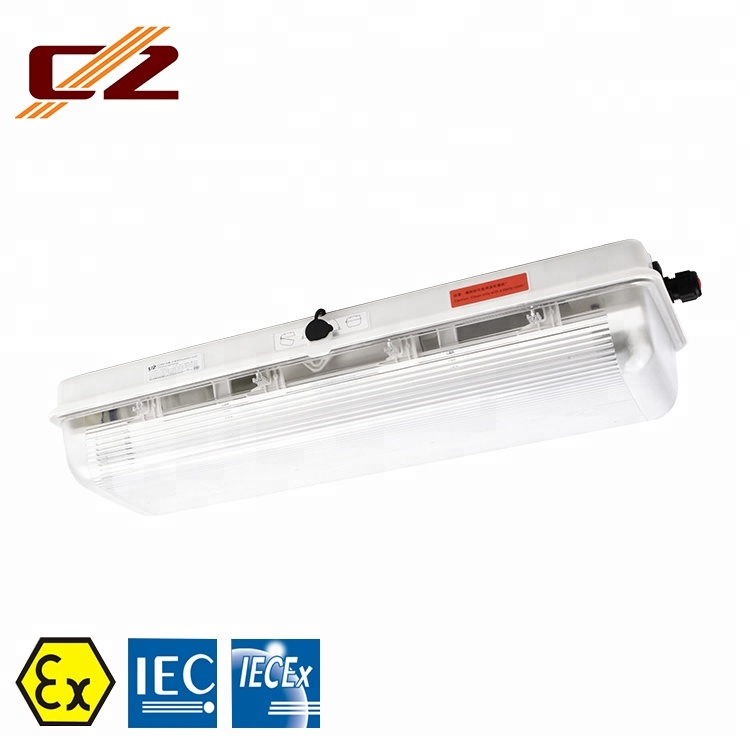

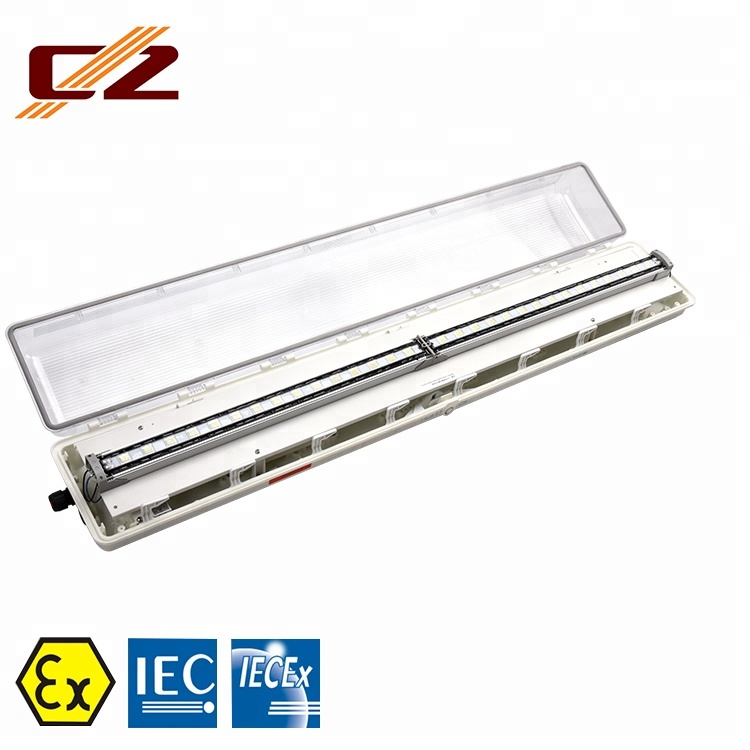

The enclosures of full plastic explosionproof LED (emergency) linear light ftins(pole mounting) are manufactured by glass fiber reinforced polyester and the tansparent parts are manufactured by antiultraviolet polycarbonate.They have good protection ability from varbus chemical matters in factories or offshore platform because of highstability And the safety of the transparent parts are operated by the interlocking device. The iscation switches are operated by the interlock devices. When the isolation switch is switched off, the cover can be opened. The internal configuration independent certification of Explosionproof power Supply module, exposion-proot inverter module,With the function of constant current output and over temperature protection function. LED light source module adopts the latest LED highphotosynthetic efiency particles, the lumirous intensity and color rendering performance are excellent.Used forilluminating in the circuit of 1 00250V AC, 50/60Hz. Suitable for explosive gas and dust environment do as the ordinary lighting or Emergency lighting.
Full plastic Explosionproof LED lineai light fitings mounting ways:Ceiling type, Chain type, Pendant type.Wall type and Clamp type.
Full plastic Explosionproof LED linear light fitings (pole mounting) mounting ways: Platform fence type,Platform fiange type. Wall type
The structural design is never distartion and its protection cegree is up to IP66.
With interlock device, the transparent parts and enclosure can not energize to work to ensure sate use before completely close.
The emergency type has the indication of fault signal, the charging signal, the discharging signal.
Intenational IECEx Approval, European union ATEX Approva.
Order specification of full plastic explosion-proof emergency LED linear light fitting
Diagram:
Mounting way and Outline dimensions:
code of cable gland:
Q1. Can I have a sample order for testing?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 20 sets.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
