Home > Products > IP67 30w 60w 120w LED Explosion Proof Light ex Certificate Linear Flame Proof Light

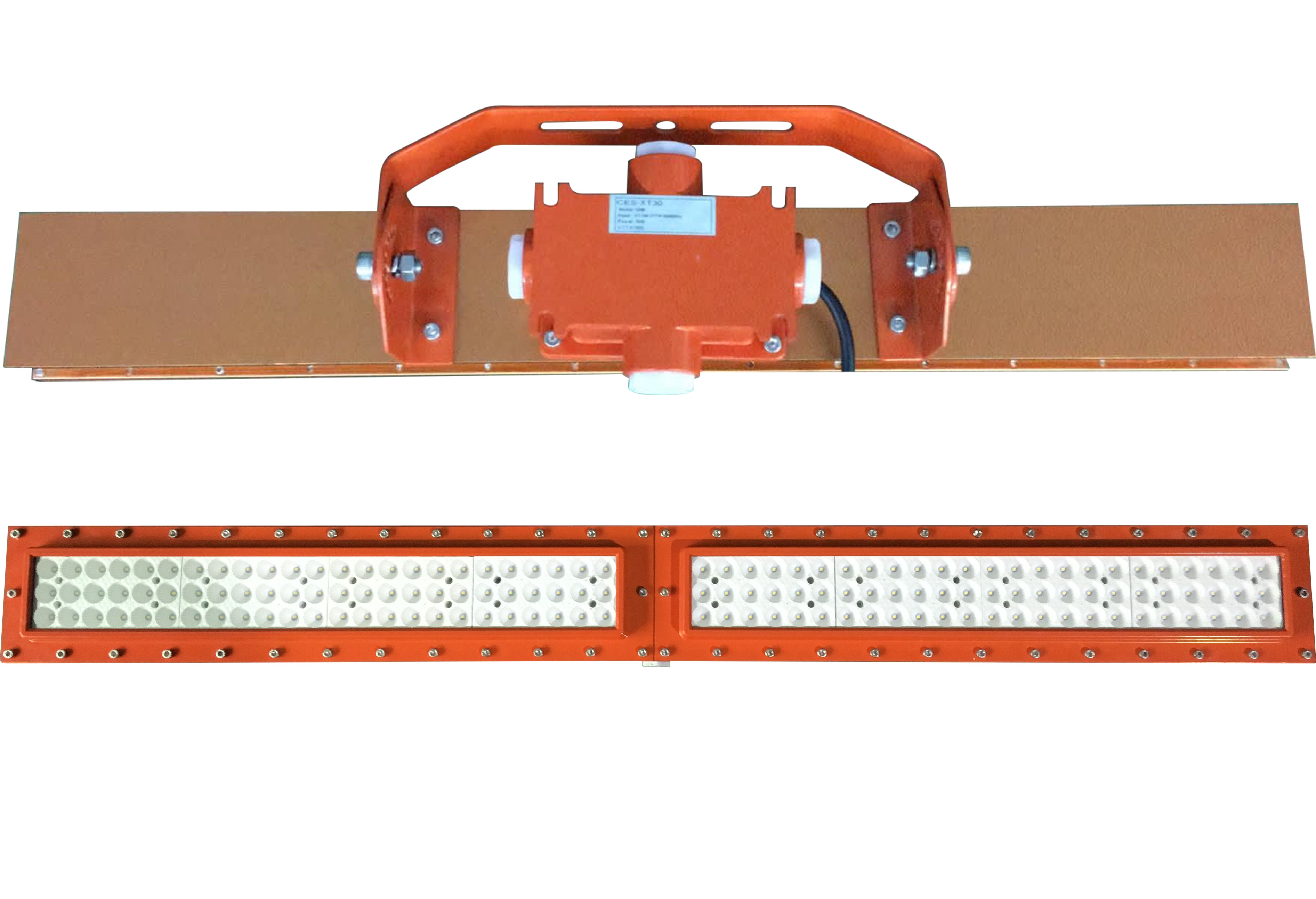

IP67 30w 60w 120w LED Explosion Proof Light ex Certificate Linear Flame Proof Light
Click on the image to view the original image
Product： views：2IP67 30w 60w 120w LED Explosion Proof Light ex Certificate Linear Flame Proof Light
Branch： HKV
Size： 60X70X10 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:34
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100~277V
Lamp Power(W):
30
CRI (Ra>):
75
Lamp Luminous Flux(lm):
120
IP Rating:
IP67
Working Lifetime(Hour):
50000
Working Temperature(℃):
30 - 50
Certification:
CCC, CE, ETL, RoHS, UL
Place of Origin:
Sichuan, China
Brand Name:
HKV
Light Source:
LED
mold#:
HKV-XT30
POWER:
30W
Led source:
Brand chips
input voltage:
AC100~277V
lumen:
120lm/W
materials:
Aluminum
CCT:
2700-6500K
CRI:
75Ra
PF:
0.98
working temperature:
-40℃ ~ +55℃

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X70X10 cm
Single gross weight:
9.0 kg
Lead Time:
Quantity(Piece)1 - 1011 - 500>500
Est. Time(days)1530To be negotiated

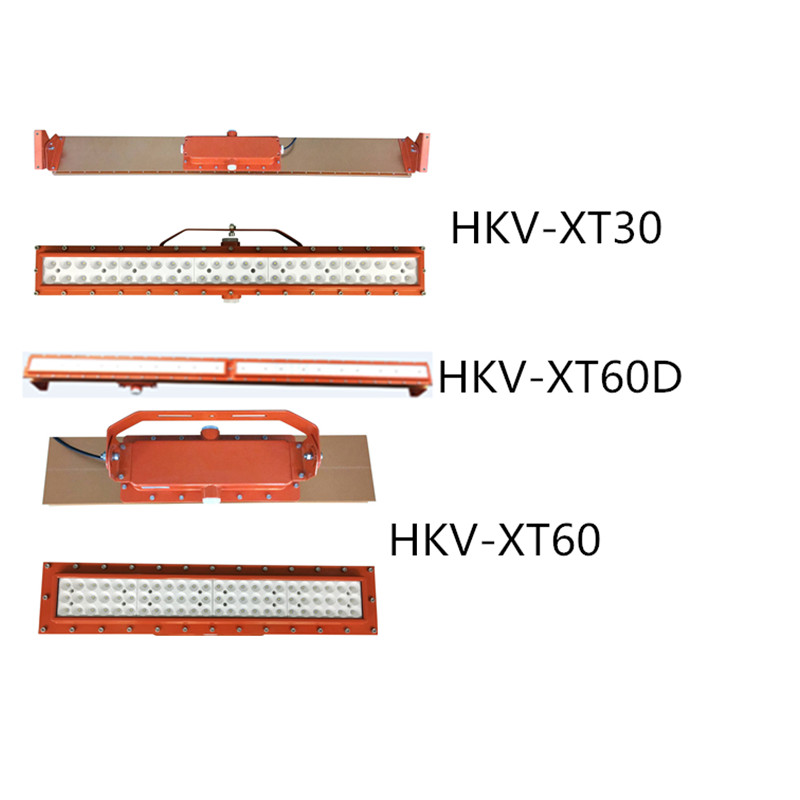

Specification
mold#
HKV-XT30
HKV-XT60D
HKV-XT60
power
30w
60w
60w
dimension
607*78*57
1214*78*57
596*126*57
weight
5KG
9KG
8KG
Input Voltage
AC100-277V 50/60Hz
AC100-277V 50/60Hz
AC100-277V 50/60Hz
THD
<10%
<10%
<10%
Power Factor
>0.98
>0.98
>0.98
Driver
mw
mw
mw
LED source
50pcs
100pcs
72pcs
Lumen Efferency
120lm/W
120lm/W
120lm/W
CCT
2700-6500K(optional)
2700-6500K(optional)
2700-6500K(optional)
CRI
>75
>75
>75
Beam Angle
8~120 degree
8~120 degree
8~120 degree
Housing Material
AL 6063
AL 6063
AL 6063
Product Cover
Tempered glass, 6mm thickness
Tempered glass, 6mm thickness
Tempered glass, 6mm thickness
Hazardos area
CID1, CID2, CIID1, CIID2, CIII
Zone1, Zone2
CID1, CID2, CIID1, CIID2, CIII
Zone1, Zone2
CID1, CID2, CIID1, CIID2, CIII
Zone1, Zone2
Ambient Temp.
-40℃ ~ +55℃
-40℃ ~ +55℃
-40℃ ~ +55℃
IP
IP67
IP67
IP67
Warranty
5years
5years
5years
Product Description

A) Brand high quality cree or bridgelux led source. Insure the lifespan of the lamp and make it totally comply with UL844, ETL, DLC.

B) Lonly led chips installation, the lamp keep working even 1 or 2 pcs chips break.
C) Aluminum die-casting body, the heat dissipation is better than normal lamp.
D) IP67 waterproof grade and stainless screws. nice design on waterproof, anti-dust, anti-rust, lamp lifespan more than 50000hours.
E) Brand driver meanwell, no flickers when lamp working.
F) warranty 5 years, no worries about after service.

Applications
Company Information

Chengdu HKV Electronic Technology Co.,Ltd., established in 2016. We are located in Chengdu City of Sichuan Province. We are professional on R&D, manufacture and offer quality outdoor & industrial LED lighting. HKV committed to provide professional solutions and technical service to customers. Our main R&D engineers have more than 10 years experience in the Led lighting. HKV strictly complies with ISO-9001 and the workshop is managed according to the 7S site management system.


HKV main products are LED explosion proof light, emergency light, street light , high bay light, Led food light, tunnel light, .etc.HKV is one of the best manufacturers as well as a professional energy saving solutions provider of LED industrial lighting in China. We are welcome OEM & ODM products.

HKV takes quality as superiority and offer excellent pre-sale support and after-sale services. HKV not only provides customers with the high quality products with competitive price, but also offers the corresponding solutions.
Mission: Not just LED manufacturer, but one professional LED solution provider.

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
