Click on the image to view the original image
Replaces 175W-400W HID.
E39 or EX39 base available.
Product Paramenters
Power | 45W | 60W | 75W | 90W |
LUMEN | 6300 | 8400 | 10500 | 12600 |
LEDS | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 |
BASE | E39/EX39 | E39/EX39 | E39/EX39 | E39/EX39 |
VOLT | 100-277V | 100-277V | 100-277V | 100-277V |
CCT | 2700～5700k | 2700～5700k | 2700～5700k | 2700～5700k |
CRI | 80+ | 80+ | 80+ | 80+ |
LIFE | 50,000hrs | 50,000hrs | 50,000hrs | 50,000hrs |
REPLACES HID | 175W | 250W | 300W | 400W |
Degree | 120 | 120 | 120 | 120 |
Light Efficiency | 140LM/W | 140LM/W | 140LM/W | 140LM/W |
Product Description
Sensor
1. Sensor Option:30% light down 5mins stand-by, can be customized.
2. Beam Angel: Can adjust between 120° to 360°.
3. Finishing color can be customized: Grey, White, Black.
4. Sole distribution are welcomed and can be negotiated.
Detailed Images
High lumen efficacy--140lm/w for finished lamp
Direct line voltage 100-277V--bypass ballast
Integral 4kV surge protection.
Flicker free & dimmable driver(dimming only with sensor option).
Die-casting structure---better heat dissipation waterproof

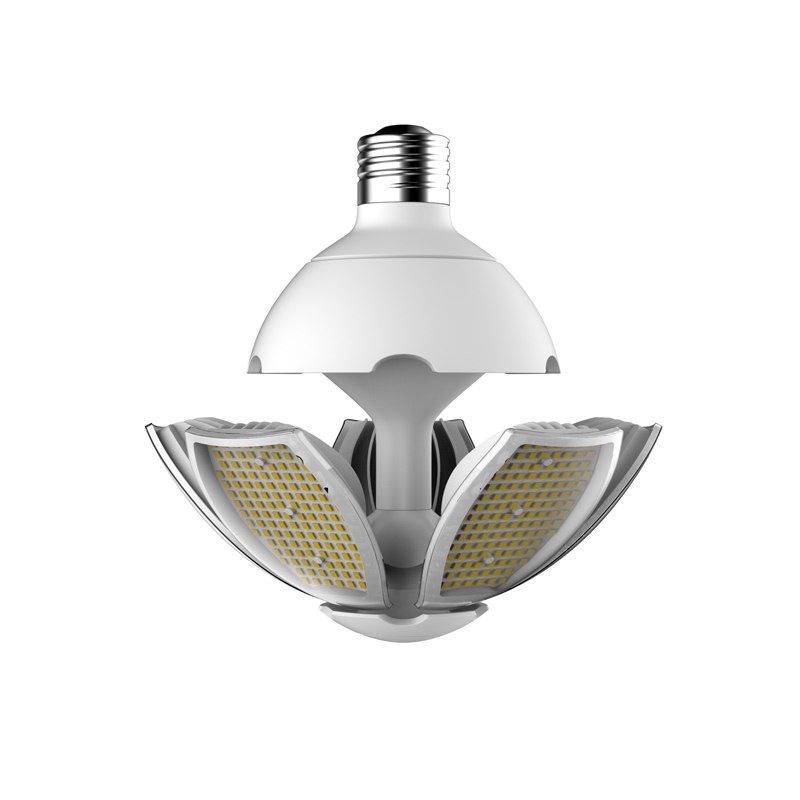

Beam Angle adjustable from 120-360
Backed up by a 5-year warranty.
Rated for Damp location.
Application
User Notes
1.Disconnect power from the luminaries and follow proper lockout/tag-out procedures before installation or maintenance.Contact a qualified electrician for installtion.
2.These devices require 100V-277V input voltage.
3.These devices require all ballasts,capacitors,and starters to be by-passed/removed.
4.Suitable for use in dry or damp locations.DO NOT use where directly exposed to water.
5.These devices are suitable for fully enclosed luminaries
6.These devices are for base-up an base-down operation ONLY.
Power | Box Size(mm) | Carton size(mm) | Net weight(KG) | Gross weight(KG) | Pack Qty |
45W | 313*163*163 | 350*335*515 | 8.4 | 12.25 | 6 |
60W | 313*163*163 | 350*335*515 | 8.4 | 12.25 | 6 |
75W | 318*173*173 | 370*335*545 | 10.2 | 14.45 | 6 |
90W | 318*173*173 | 370*335*545 | 10.2 | 14.45 | 6 |
Company Information
1.Welcome OEM/ODM.
We can accept your own brand or design.
2.Quality control.
1) After the sample is confirmed, we will prepare the material production order in strict accordance with the sample, and test the goods in strict accordance with the sample quality.
2)Our salesman ,also as a order follower,would trace every phase of production from the beginning.
3)We have a QC team ,every product would be checked by them before packed.
4)We would try our best to help clients solve problems when they occurred.
3.Welcome to visit.
When you come to our company visIt us, we will arrange car for picking up and help you book hotel. If you want to visit the local scenic spot, our colleague will accompany you.
4.After-service
1) In production and after delivery, we will track on time and tell your goods situation.
2) When the goods arrived, if you find any design and quality question, or difference from your samples, please feel free to contact us, we will find the question and solve it with you.
FAQ
1.Q: Are you a manufacturer or a trade company?
A: We are a Manufacturer in China.
2. Q: How can I get the samples?
A: We’ll appreciate it if you can pay the cost and freight of samples.
3.Q: How much is the transportation freight of the samples ?
A: The freight depends on the weight and packing size, as well as the place or port of destination.
4.Q: When's the delivery time for the sample?
A: The samples will be ready for 7-10 days.
5.Q: Do you offer OEM&ODM service?
A: Yes, we offer a this service now.
6.Q: How do your factory control quality?
A: Quality is the most important part for us.
In order to control quality better, We have professional QC. All our products pass 4 times inspection by QC before delivery. The first time for raw material, second for finished products, third for products appearance and fourth for function.
7.Q: How to make a payment?
A: We can accept the payment by L/C, T/T, Western Union or Paypal. Please tell us the payment that you prefer, we will send the detail information to you.
8.Q: What’s the shipment method?
A: It could be Ocean Shipping, Airlift and Express (EMS, UPS, DHL, TNT, FEDEX, ect). Please contact us to confirm the shipment method you preferred before placing an order.
9.Q: When's the delivery time for the order?
A: 7-45 days after the receipt of deposit.
10.Q:Could you please make it clear to me about your trade information?
A: Sure. Please find details below :
Payment terms: L/C, T/T, Western Union.
Payment condition: 30% deposit in advance, 70% balance before delivery or against the copy of Bill of Lading.
Delivery time: 7-45 days after the receipt of deposit.
