Replaces 175W-400W HID.
E39 or EX39 base available.

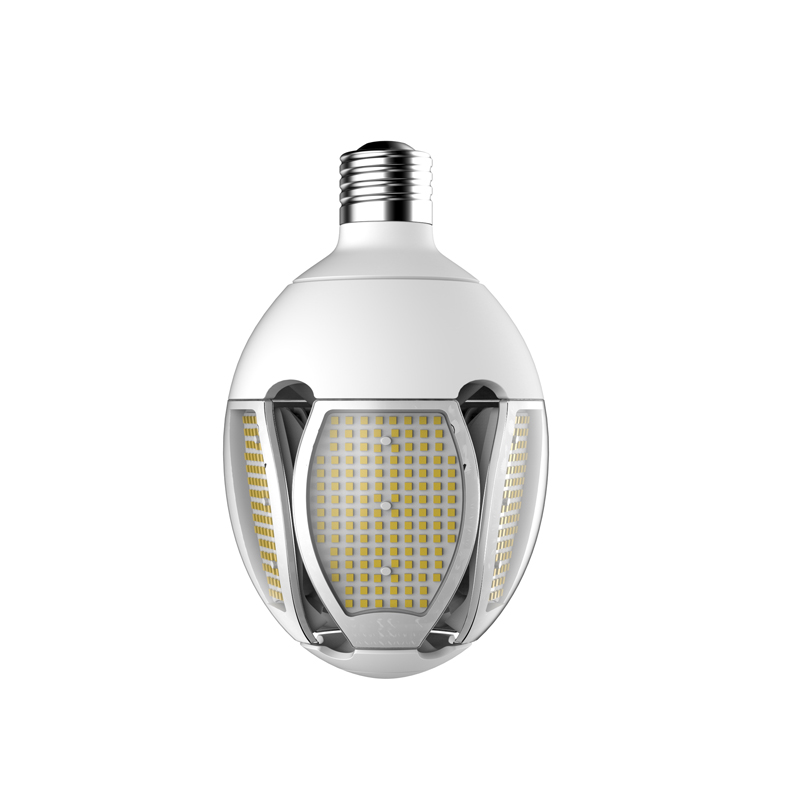

New 2019 Product Led Hydra Lamp 60W Retrofits Led Bulb Light High Bay light Light
Product Paramenters
Power | 45W | 60W | 75W | 90W |
LUMEN | 6300 | 8400 | 10500 | 12600 |
LEDS | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 |
BASE | E39/EX39 | E39/EX39 | E39/EX39 | E39/EX39 |
VOLT | 100-277V | 100-277V | 100-277V | 100-277V |
CCT | 2700～5700k | 2700～5700k | 2700～5700k | 2700～5700k |
CRI | 80+ | 80+ | 80+ | 80+ |
LIFE | 50,000hrs | 50,000hrs | 50,000hrs | 50,000hrs |
REPLACES HID | 175W | 250W | 300W | 400W |
Degree | 120 | 120 | 120 | 120 |
Light Efficiency | 140LM/W | 140LM/W | 140LM/W | 140LM/W |
Product Description
Sensor
1. Sensor Option:30% light down 5mins stand-by, can be customized.
2. Beam Angel: Can adjust between 120° to 360°.
3. Finishing color can be customized: Grey, White, Black.
4. Sole distribution are welcomed and can be negotiated.

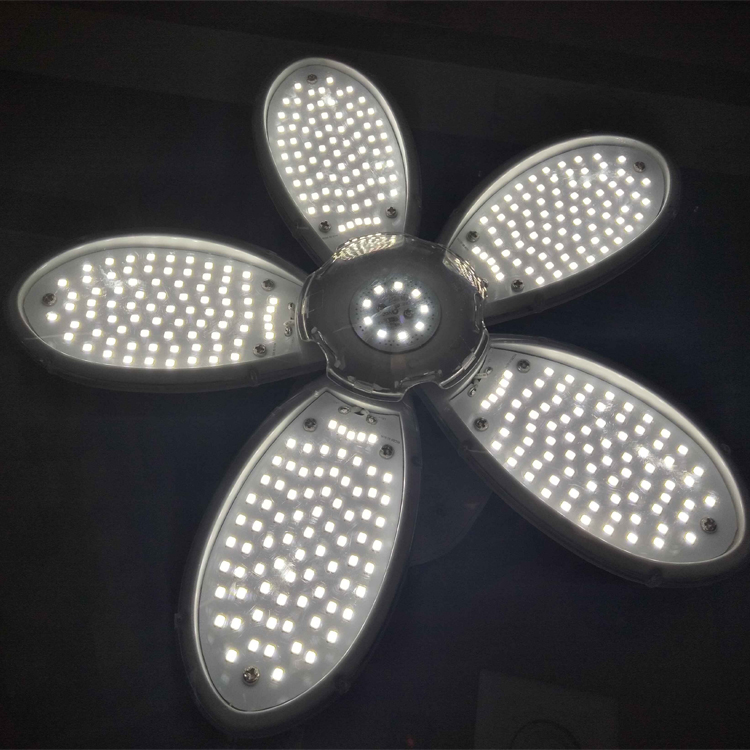

Detailed Images
High lumen efficacy--140lm/w for finished lamp
Direct line voltage 100-277V--bypass ballast
Integral 4kV surge protection.
Flicker free & dimmable driver(dimming only with sensor option).
Die-casting structure---better heat dissipation waterproof
Beam Angle adjustable from 120-360
Backed up by a 5-year warranty.
Rated for Damp location.
Application
User Notes
1.Disconnect power from the luminaries and follow proper lockout/tag-out procedures before installation or maintenance.Contact a qualified electrician for installtion.
2.These devices require 100V-277V input voltage.
3.These devices require all ballasts,capacitors,and starters to be by-passed/removed.
4.Suitable for use in dry or damp locations.DO NOT use where directly exposed to water.
5.These devices are suitable for fully enclosed luminaries
6.These devices are for base-up an base-down operation ONLY.
Power | Box Size(mm) | Carton size(mm) | Net weight(KG) | Gross weight(KG) | Pack Qty |
45W | 313*163*163 | 350*335*515 | 8.4 | 12.25 | 6 |
60W | 313*163*163 | 350*335*515 | 8.4 | 12.25 | 6 |
75W | 318*173*173 | 370*335*545 | 10.2 | 14.45 | 6 |
90W | 318*173*173 | 370*335*545 | 10.2 | 14.45 | 6 |
