Industrial Energy Saving 2019 New Highbay Lamp with Microwave Sensor High Bay Light Fixture
Click on the image to view the original image
Product： views：4Industrial Energy Saving 2019 New Highbay Lamp with Microwave Sensor High Bay Light Fixture
Branch： HKV
Size： 32X20X20 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:34
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
6300
CRI (Ra>):
80
Working Temperature(℃):
-40 - 45
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP54
Certification:
CCC, CE, ETL, RoHS, SAA, UL
Place of Origin:
China
Brand Name:
HKV
Model Number:
HKV-BWHA45
Application:
WAREHOUSE
Light Source:
LED
Warranty(Year):
5-Year
Item name:
Industrial Sensor High Bay Light
power:
45W 60W 75W 90W
Input voltage:
AC100-277V
LED chips:
Branded Chips
Lume:
140lm/W
CCT:
2700-5600k
CRI:
80Ra
lifespan:
50000h
warranty:
5 years
Beam angle:
120-360 degree

Packaging & Delivery

Selling Units:
Single item
Single package size:
32X20X20 cm
Single gross weight:
2.5 kg
Package Type:
1pc/box ,6boxes/carton Industrial Energy Saving 2019 New Highbay Lamp with Microwave Sensor High Bay Light Fixture
Lead Time:
Quantity(Piece)1 - 1011 - 500501 - 1000>1000
Est. Time(days)152025To be negotiated
Product Description
Industrial Energy Saving 2019 New Highbay Lamp with Microwave Sensor High Bay Light Fixture

1. Replaces 175W-400W HID.  E39 or EX39 base available.
2. High lumen efficacy--140lm/w for finished lamp, Direct line voltage 100-277V--bypass ballast.
3. Integral 4kV surge protection. Flicker free & dimmable driver(dimming only with sensor option).
4. Die-casting structure---better heat dissipation waterproof .

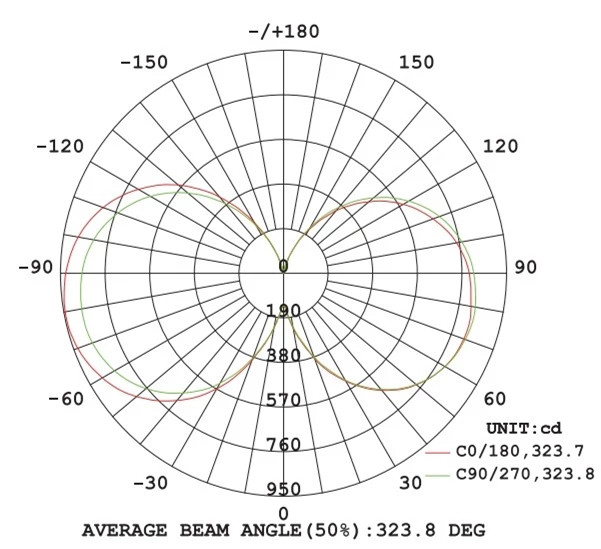

Beam Angle adjustable from 120-360.
Backed up by a 5-year warranty.
Rated for Damp location
Power
45W
60W
75W
90W
Lumen
6300
8400
10500
12600
LED source
SMD 2835
SMD 2835
SMD 2835
SMD 2835
Base type
E39/EX39
E39/EX39
E39/EX39
E39/EX39
Input voltage
100-277V
100-277V
100-277V
100-277V
CCT
2700-5700K
2700-5700K
2700-5700K
2700-5700K
CRI
80Ra
80Ra
80Ra
80Ra
lifespan
50000h
50000h
50000h
50000h
REPLACED HID
175W
250W
300W
400W
Degree
120 - 360 degree
120 - 360 degree
120 - 360 degree
120 - 360 degree
Lumen efficiency
140lm/W
140lm/W
140lm/W
140lm/W
package box(MM)
313*163*163
313*163*163
318*173*173
318*173*173
package carton(mm)
350*335*515
350*335*515
370*335*545
370*335*545
Package
6pcs/carton
6pcs/carton
6pcs/carton
6pcs/carton
Gross weight(kg)
12.25
12.25
14.45
14.45

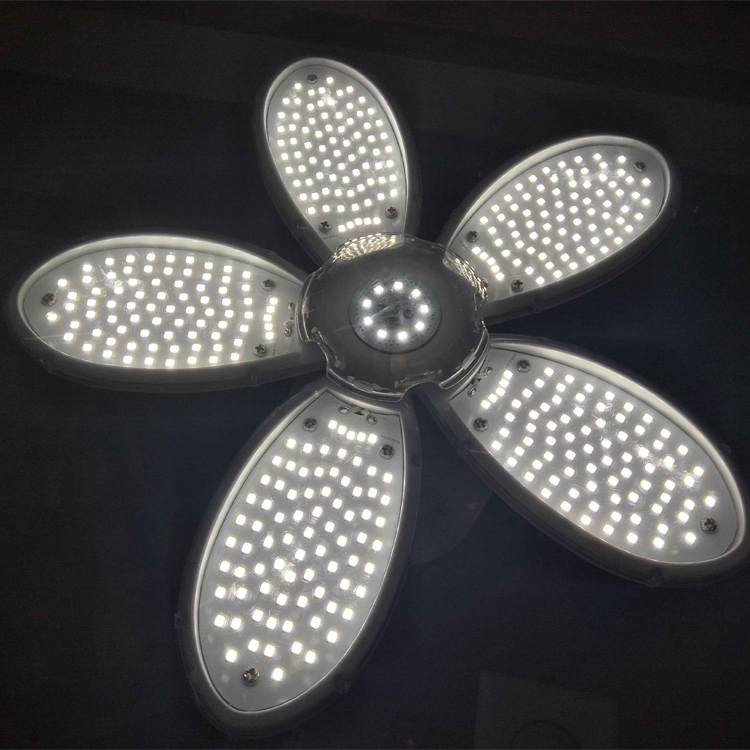

Detailed Images
Radar Sensor
