Energy saving
When the person comes, the light is all bright, and when the person leaves, the light is in the light mode.
Sensing range 8-10 meters
Overview
Quick Details
- Light Source:
- LED
- Input Voltage(V):
- DC12V
- Lamp Luminous Flux(lm):
- 3000lm
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -20-50℃
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP65
- Certification:
- CCC, CE, RoHS
- Warranty(Year):
- 3
- Place of Origin:
- Sichuan, China
- Brand Name:
- HKV
- Model Number:
- HKV-KT-30W
- Beam Angle(°):
- 60-120
- Application:
- ROAD
- Color:
- Light Grey
- Power Supply:
- Solar
- Working time:
- 30W Integrated Led Solar Street Light
- Material:
- Aluminium
- LED Qty:
- 90pcsSMD2835 or 3030
- Battery:
- 22AH
- Solar Panel:
- 50WP
- Lighting effect:
- 110-120LM/W
- Controller efficiencyr:
- ≥0.90
- Rainy day:
- 3-5 days
- Gross weight GW:
- 14.2KG
- IP Grade:
- IP65 Waterproof
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 80X35X21 cm
- Single gross weight:
- 8.9 kg
- Package Type:
- 1pcs/carton, 2019 New Products 30W Aluminum IP65 Smart Integrated All In One Led Solar Street Light
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 11 - 50 >50 Est. Time(days) 10 15 To be negotiated
Specification
2019 New Products 30W Aluminum IP65 Smart Integrated All In One Led Solar Street Light
Power | 20W | 25W | 30W |
Material | Aluminium | Aluminium | Aluminium |
LED Qty | 60pcsSMD2835 or 3030 | 60pcs SMD2835 or 3030 | 90pcs SMD2835 or 3030 |
Batteries | 16AH | 20AH | 22AH |
Solar Panel | 35W | 40WP | 50W |
Lighting effect | 110-120LM/W | 110-120LM/W | 110-120LM/W |
Luminous Flux (lm) | 2000lm | 2500lm | 3000lm |
Rainy day | 3-5 days | 3-5 days | 3-5 days |
Installation height | 5-6 M | 5-6 M | 6-7 M |
Condition Temperature | -20-50℃ | -20-50℃ | -20-50℃ |
Colour rendering index | 80Ra | 80Ra | 80Ra |
Controller efficiencyr | ≥0.90 | ≥0.90 | ≥0.90 |
Lens angle | 60*120º | 60*120º | 60*120º |
Work time | 12H | 12H | 12H |
Waterproof | IP65 | IP65 | IP65 |
Voltage | AC 100-240V | AC 100-240V | AC 100-240V |
Product advantage
1 .Energy saving :
use natural light source to reduce power consumption
2 .Safety:
Solar street lights do not use AC power, there is no safety hazard
3 .Environmental protection:
Solar street lights are non-polluting and non-radiative, in line with modern green environmental protection concepts.
4 .High-tech content:
Intelligent controller control, intelligent adjustment of brightness according to the natural brightness of the sky and the brightness of people's environment
5 .Durable:
The production technology of solar modules is enough to ensure that the performance of 10 years or more will not decrease, and the solar modules can be sent for 25 years or longer.
6 .Easy to install:
the components are building blocks, more customer requirements, flexible installation
7 .Autonomous power supply:
Solar street lights running off-grid have power autonomy and flexibility
Product Description
Strong endurance, full lighting for 10-12 hours

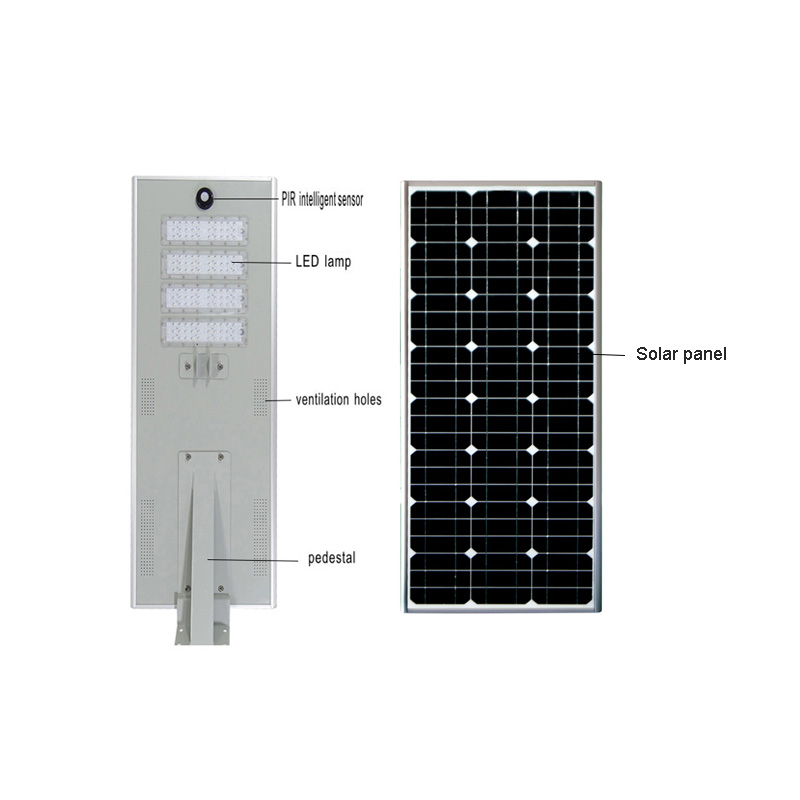

Intelligent radar sensor head
When there is no pedestrian at night, the brightness of the lamp is 30%. When the pedestrian is close to the sensing area for about 8 meters, the brightness of the lamp is 100% bright. When the pedestrian leaves, the street lamp will last for 15 seconds and the brightness will be 100%. After 15 seconds, the brightness of the street lamp will be 100 % drops to 30%, waiting for the next time to light up.
Packaging
Integrated embedded foam design
Thick cardboard box for Safe transportation
Applications
