Click on the image to view the original image

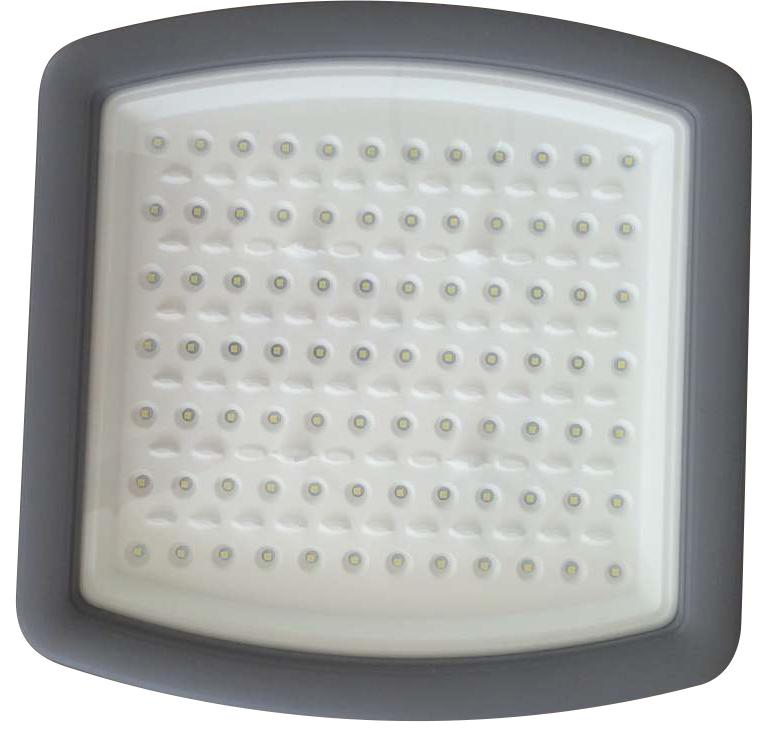

24Pcs 3030 Chip,High brightness
Low heat production,Durable and safe
Long lifespan
Overview
Quick Details
- Input Voltage(V):
- AC100-277V
- Lamp Power(W):
- 100
- CRI (Ra>):
- 0.95
- Lamp Luminous Flux(lm):
- 11500
- IP Rating:
- IP68
- Working Lifetime(Hour):
- 50000
- Working Temperature(℃):
- -40 - 50
- Certification:
- CCC, CE, EMC, FCC, RoHS, UL
- Place of Origin:
- Sichuan, China
- Brand Name:
- HKV
- Light Source:
- LED
- Product Name:
- IP68 100W Flood Lighting Explosion-proof Fluorescent Light ATEX
- Color:
- Yellow and gray
- Power:
- 20W,30W,60W,80W,100W,150W,200W
- CCT:
- 5500-6000K
- Dimensions:
- 200*200*270mm
- Warranty:
- 5years
- Beamangle:
- 60°x30°(RF) /120°x120°
- Application:
- Hazardous Location Lighting
- Lamp Luminous Efficiency(lm/w):
- 115
- LED Light Source:
- 3030 Chip
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 37X37X24 cm
- Single gross weight:
- 8.5 kg
- Package Type:
- 1Pcs/carton, IP68 100W Waterproof Cool White Flood Lighting Marine Explosion-proof Fluorescent Light ATEX
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 >5 Est. Time(days) 5 To be negotiated
Setting Information
IP68 100W Waterproof Cool White Flood Lighting Marine Explosion-proof Fluorescent Light ATEX
Item Name | IP68 100W Waterproof Cool White Flood Lighting Marine Explosion-proof Fluorescent Lamp Light |
Certificate | CUL/ ATEX/CE/ROHS/SAA |
Body Material | Die-casting aluminum |
Power | 20W,30W,40W,60W,80W,100W,150W,200W |
Led Source | 84Pcs 3030 Chip |
Driver | HLG or ELG driver |
Diemension | 300*300*175mm |
Beamangle | 60°x30°(RF)/120°x120° |
Lm/W | 115Lm/W |
CCT | 5500-6000K |
PF | 98% |
Packaging | 370*370x240mm G.W.: 8.5kgs N.W.:7.5kgs |
Product Description
Features
Brand Led Source
Brand Driver
Top brand driver MW,or optional.
Steady power current,prolong the lifespan more than 50000hrs

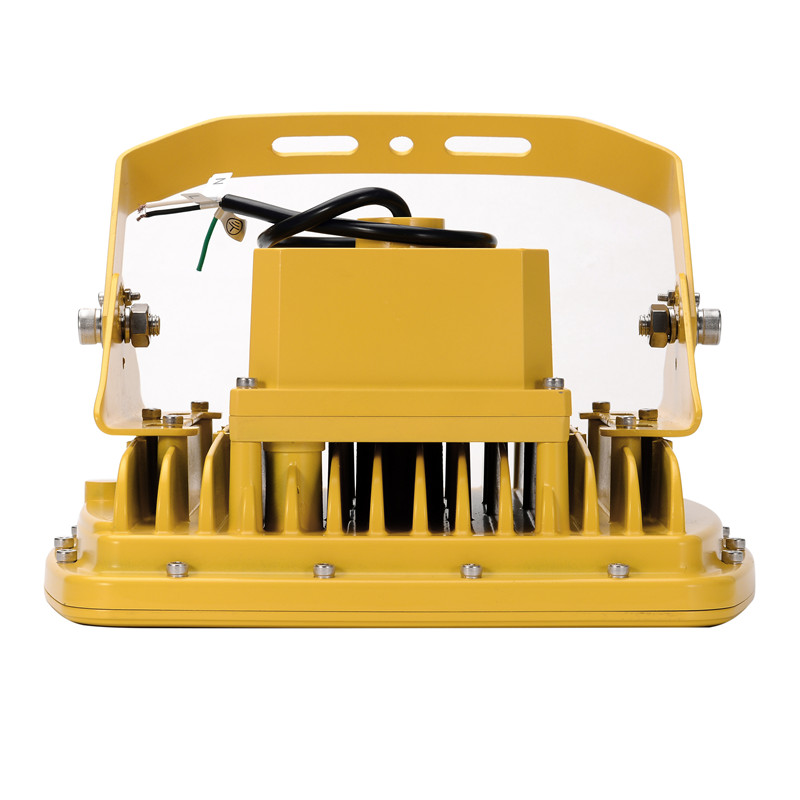

Die-cast aluminum
High-purity die-cast aluminum with highgloss, abrasion and scratch resistance.
Applications
About US
FAQ
Q1. Why choose us?
A1:We are a professional LED Manufacturer and good at manufacturing LED flood light, LED high bay light, LED street lightand, LED mart light, LED explosion proof light and so on.As for LED,we have some advantages as below:Factory direct selling,Original designs,High quality control, fast delivery and competitive price.
Q2. How to order?
A2:Submit an inquiry straightly , We will reply you at the earliest time we can.
Q3.How long does the package take to delivery to my address?
A3:For sample order, package arrives you in 10 Working days (3 days for production, another 1-5 working days for delivery); For bulk order, 30 days for North American Area(Shipping by Air).
Q4. Can you offer OEM service?
A4:Yes,we can offer OEM service, we have our own designer and skilled technicials at your service.
Q5. Is it OK to print my logo on led light product?
A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A6: Yes, we offer 2-5 years warranty to our products.
Q7: How to deal with the faulty?
A7: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including
re-call according to real situation.
