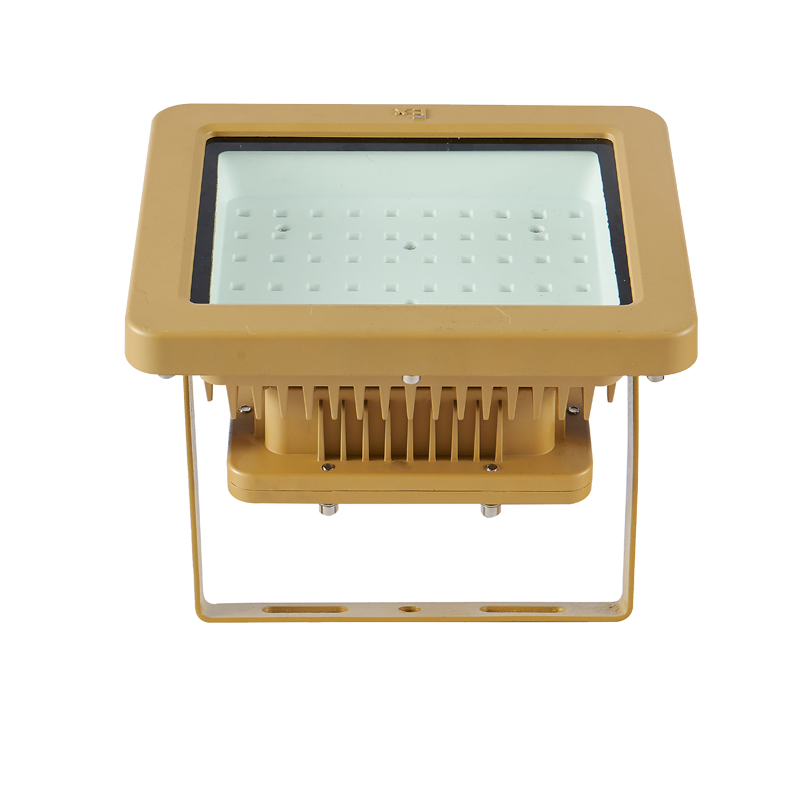

Body in die-cast copper-free aluminum alloy, treated by electrostatic spraying, with good performance of high temperature resistance and climate resistance.Temperedglass with good transmittancy.
Overview
Quick Details
- Input Voltage(V):
- AC90-265V
- Lamp Power(W):
- 50
- CRI (Ra>):
- 0.96
- Lamp Luminous Flux(lm):
- 8800-11000
- IP Rating:
- IP65
- Working Lifetime(Hour):
- 50000
- Working Temperature(℃):
- -30 - 45
- Certification:
- CCC, CE, RoHS
- Place of Origin:
- Sichuan, China
- Brand Name:
- HKV
- Light Source:
- LED
- Product Name:
- Explosion Proof Light
- Application:
- Gas Industry
- Warranty:
- 3-5Years
- Material:
- Aluminum Alloy
- Power:
- 80/100W
- Weight:
- 7.5kg
- EX Code:
- Ex d e mb IIC T5 Gb
- LED Light Source:
- Top Brand SMD
- Lamp Luminous Efficiency(lm/w):
- 110
- Features:
- Explosionproof
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 34X28X22 cm
- Single gross weight:
- 10.0 kg
- Package Type:
- Outer carton size: 34*28*22cm (1pcs/ctn) 80W 100W Led Gas Station Linear Explosion Proof Led Light Fixtures Price Explosion Proof Lighting
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20 21 - 100 101 - 200 >200 Est. Time(days) 10 15 20 To be negotiated
Setting Information
80W 100W Led Gas Station Linear Explosion Proof Led Light Fixtures Price Explosion Proof Lighting
Model | HKV-FB80 | HKV-FB100 |
Power | 80W | 100W |
PF | 0.95 | 0.95 |
Voltage | AC85-265V | AC85-265V |
LM | 8800lm | 11000lm |
LM/W | 110 lm/W | 110 lm/W |
LED working voltage | DC30-42V | DC30-42V |
Ra | 0.95 | 0.95 |
Working Temp | -30° ~+45° | -30° ~+45° |
IP | IP 65 | IP 65 |
Explosion Grape | Ex d e mb IIC T5 Gb | Ex d e mb IIC T5 Gb |
Body | Dia-cast Al + Anti-corrosion Painting | Dia-cast Al + Anti-corrosion Painting |
Lens | 10mm toughened Glass | 10mm toughened Glass |
Installation | Ceiling,frame,hanging tube, wall-mounted | Ceiling,frame,hanging tube, wall-mounted |
N.W: | 7.5KG | 7.5KG |
Corrosion Grape | WF2 | WF2 |
Product Description
Overview
Features
Body
Driver
IsolationClass l, Protection OPP/OVP/SCP/OTP, Wide input voltage 90-265Vac , built-in active PFC> 0.96 , THD<15% , Surge Protection 10KV/6KV/4KV
Sources
LEDlight source with different possibilities of temperature color (standard Natural White 4000K,executions on request also with 3000K, 6000K). High coefficient of performance chromaticCRI> 85. lifespan> 50,000hrs.
Aplication
ldeal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc. Harsh environment, moist area. Zone 1, Zone2
Gas explosive environment: Group IIA llB IICTemperature class: T5 to T6
Dimension(mm)& Installation:
