- Light Source:
- LED
- Input Voltage(V):
- 14.4
- Lamp Luminous Flux(lm):
- 3200
- CRI (Ra>):
- 85
- Working Lifetime(Hour):
- 100000
- IP Rating:
- IP65, IP65
- Certification:
- ce, FCC, RoHS
- Warranty(Year):
- 1year
- Place of Origin:
- Zhejiang, China
- Brand Name:
- GT
- Model Number:
- TME5102
- Beam Angle(°):
- 360°
- Application:
- ROAD
- Emitting Color:
- Cold White, Changeable
- Color:
- Black
- Light source::
- LED 27W (100,000 hours)
- Rated voltage::
- 14.4V
- Rated capacity::
- 9Ah
- Discharge time::
- 9h(strong light) /16h(working light)
- Charging time::
- 10h
- Size::
- 254*204*612mm
- Battery type::
- Lithium battery (lifetime 1000 cycle times)
- Ex mark::
- Exd IIB T6 Gb
- Weight:
- 7kg
- CE Certified.
- Valid from 2018-03-06 until 2023-03-05
- FCC Certified.
- Valid from 2018-02-02 until 2049-12-31
- RoHS Certified.
- Valid from 2018-02-02 until 2049-12-31
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 68X32X26 cm
- Single gross weight:
- 8.0 kg
- Package Type:
- Carton
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 200 201 - 500 >500 Est. Time(days) 10 15 30 To be negotiated

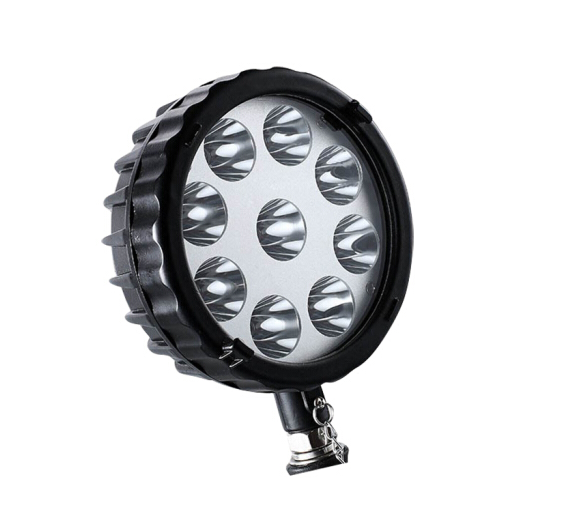

1.Adopt 9 pieces of the best international LED light source in series connection, high luminous efficiency, lifetime up to 100,000 hours, low power consumption, strong light can work continuously for more than 9 hours, working light for 16 hours, fully meets the need of long time work.
2.High energy non-memory Ni-MH battery, small size, light weight. Once fully charged, storage capacity shall not be less than 85% within half year, with over-discharge protection circuit to extend battery life.
3.Lamp pole can be wrenched to any irradiation angle to improve working efficiency. Battery box is equipped with a real-time battery level displaying screen. It is convenient to charge, discharge and maintain the light.
4.Fully sealed design, can work normally in heavy rain, special alloy casing can stand strong collision and impact.
Parameters | ||
Light Source | LED 27W (100,000h) | |
Rated voltage | 14.4V | |
Rated capacity | 9Ah | |
Luminous flux | 3200lm | |
Discharge time | 9h(strong light) 16h(working light) | |
Charging time | 10h | |
Size | 254*204*612mm | |
Weight | 7kg | |
Protection grade | IP65 | |
Ex mark | Exd IIB T6 Gb | |
Battery type | Lithium battery (lifetime 1000 cycle times) | |
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production needs 2 to 4 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: 1st, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
2nd, during the guarantee period, we can send new lights with new order.
