Home > Products > China factory solid ex lighting fixtures

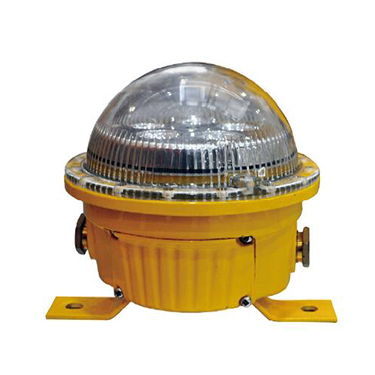

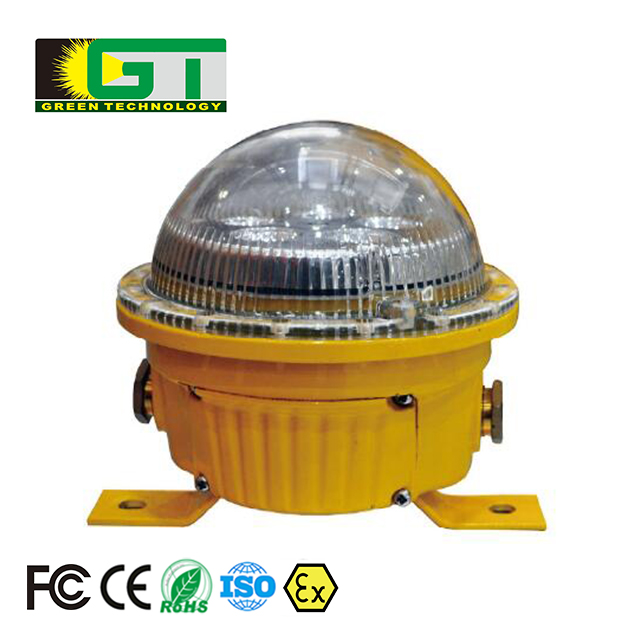

China factory solid ex lighting fixtures
Click on the image to view the original image
Product： views：2China factory solid ex lighting fixtures
Branch： GT
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:14
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC85-260V/50HZ
Lamp Power(W):
5
CRI (Ra>):
75
Lamp Luminous Flux(lm):
1144
IP Rating:
IP65
Working Lifetime(Hour):
100000
Working Temperature(℃):
-40 - 50
Emitting Color:
Cold White
Certification:
BV, CE, FCC, RoHS, UL
Place of Origin:
Zhejiang, China
Base Type:
G4
Brand Name:
GT
Light Source:
LED
Light source:
LED 5*1W/3*1W
Rated voltage:
AC85-260V/50Hz; AC/DC12-48V
Casing protection grade:
IP65
Insulation grade:
I
Anti-corrosion grade:
WF2
Ex mark:
Exd IIC T6
Size:
148*147mm
Weight:
1.4kg
Item Type:
Explosion-proof Lights
Color Temperature(CCT):
Cool White
LED Light Source:
Cree
Lamp Luminous Efficiency(lm/w):
95
Product Certification Verified
CE Certified.
Valid from 2018-03-06 until 2023-03-05
FCC Certified.
Valid from 2018-02-02 until 2049-12-31
RoHS Certified.
Valid from 2018-02-02 until 2049-12-31
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton
Port
Shanghai/Ningbo

PRODUCT INTRODUCTION


China factory solid ex lighting fixtures



Quick Detail:

1. Ex mark: EXd IIC T6

2. Rated voltage: AC 220 AC/DC36; AC/DC24 AC/DC12

3. Casing protection: IP65

4. Insulation grade : I

5. Anti-corrosion grade: WF2

6. Inlet thread: G3/4

7. Introduce the cable: Φ6—Φ8mm

8. Space-depth ratio: 1.2

9. Size: Φ148*147mm (outside diameter Φ* height)

10. Weight: 1.45Kg







 SPECIFICATION



Technical Parameters:



No.

Name

Unit

Value

1

Input power

Rated voltage

V

AC100-260

Rated  frequency

Hz

47-63

2

Light source

Brand

OSR

20-30LED

Power

W

50-100W choice

3

Luminous flux

Lm

8000-14400

4

Lifetime

h

100000

5

Color temperature

K

5500

6

Power factor



>0.98

7

Lighting efficiency

%

>92

8

space-depth ratio

S/h

4.6

9

Install suction thread

G

3/4

10

Size

mm

300×250×135

11

weight

Kg

6.5

12

Entrance cable

mm

Φ8-12

13

Protection grade

GB

IP65

14

Anti-corrosion grade

GB

WF2

15

Insulation grade

GB

Ⅰ

16

Ex mark

GB

ExdⅡCT6
