- Flashlight Type:
- Rechargeable Flashlight
- Place of Origin:
- Zhejiang, China
- Brand Name:
- GT
- Model Number:
- TME1404
- Battery Type:
- Lithium Battery
- Usage:
- Industrial
- Power Source:
- Rechargeable Battery
- Lighting Period (h):
- >12
- Certification:
- CE, FCC, RoHS
- IP Rating:
- IP67
- Lamp Body Material:
- Aluminum Alloy
- Warranty(Year):
- 3
- Light Source:
- LED
- Railway flashlight Front light source:
- LED 3W (100,000 hours)
- Railway flashlight Rear light source:
- LED 0.1W (100,000 hours)
- Railway flashlight Rated voltage:
- 3.7V
- Railway flashlight Rated capacity:
- 5.2Ah
- Railway flashlight Discharge time:
- 32h(signal light) /12h(strong light)/20h(working light)
- Railway flashlight Charging time:
- ≤8h
- Railway flashlight Protection grade::
- IP67
- Railway flashlight Ex mark:
- Exib IIC T4 Gb
- Railway flashlight Size:
- 66*185mm
- Railway flashlight Weight:
- 249g
- CE Certified.
- Valid from 2018-03-06 until 2023-03-05
- FCC Certified.
- Valid from 2018-02-02 until 2049-12-31
- RoHS Certified.
- Valid from 2018-02-02 until 2049-12-31
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- Carton
- Port
- Shanghai/Ningbo
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 200 201 - 400 401 - 1000 >1000 Est. Time(days) 10 15 30 To be negotiated
No | Parameter Name | unit | valve | |||
1 | Rated voltage | V | 3.7 | |||
2 | Rated capacity | Ah | 5.2 | |||
3 | light source | signal light source | electric current |
| 160 | |
fore-light source | mA | 600/300 | ||||
tail light source |
| 30 | ||||
average lifetime | h | ≥100000 | ||||
4 | continuous working time | signal | h | ≥30 | ||
strong light | h | ≥10 | ||||
work light | h | ≥20 | ||||
tail light | h | ≥50 | ||||
5 | charging time | h | 7 | |||
6 | battery lifetime | cycle | 1000 | |||
7 | shape | outside diameterφ | mm | 66 | ||
size | long | mm | 185 | |||
8 | weight | g | 249 | |||
9 | Ex mark |
| Exib IIC T4 Gb | |||

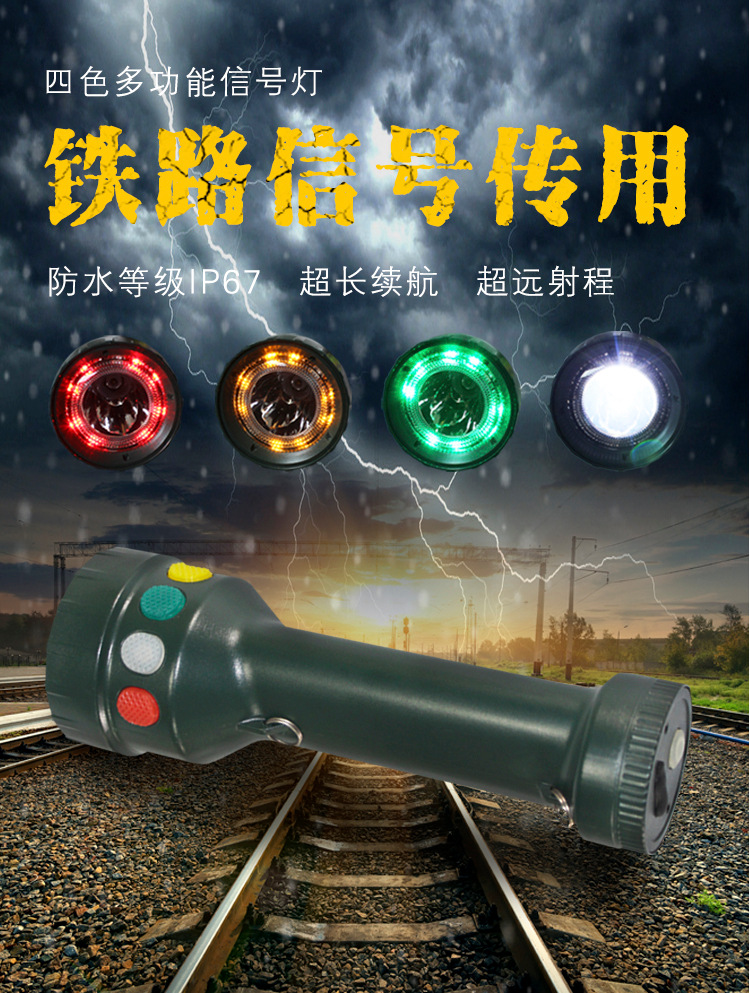

Work As signal indicators, safety warnings and work lighting in railway, shipping and other transportation and forestry or special industries.
Feature:
1. Red, yellow, green and white signal sources can be configured as long time signals, visible distance of more than 1500 meters.
2. Adopts international brand LED light source, energy saving and longevity, high brightness, strong light range of 500 meters, effective illumination distance of 300 meters, continuous use of positive light source for more than 12 hours, continuous use of tail light source more than 50 hours, the brightness is extremely high. Adopts special lithium battery pack, no memory and pollution, high capacity, long cycle life, stable performance and stability, low self-discharge, charged and discharged at any time.

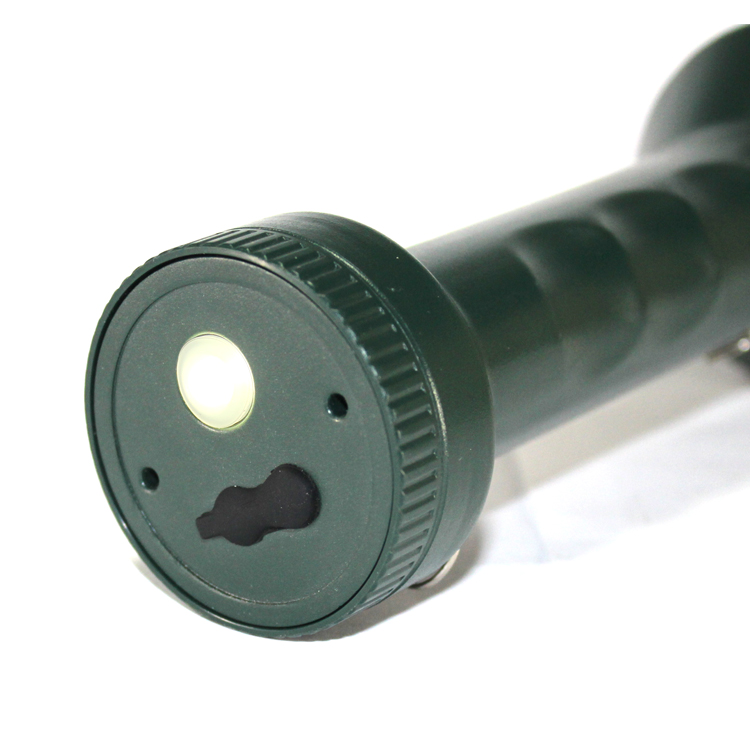

3. The head and tail of the lamp are equipped with white illumination source and warning light source respectively, which can provide more than 12 hours of mobile work lighting or emergency lighting for various work sites, and can issue warnings behind the work to eliminate dangers or hidden dangers. .
4. The circuit is controlled by programming IC. The twist-type switch is easy to operate and the lamp is easy to carry. In addition to hand-held, it can also be used in the way of waist and shoulder.
5. Optimized structural design and special imported bulletproof rubber material ensure that the product can withstand strong impact, good sealing performance and can work normally under heavy rain.
Optimized circuit design with discharge protection function to prevent over-discharge of the battery and ensure that the circuit does not cause short-circuit and other faults; The intelligent charger is equipped with overcharge, short circuit protection and charging display device.
