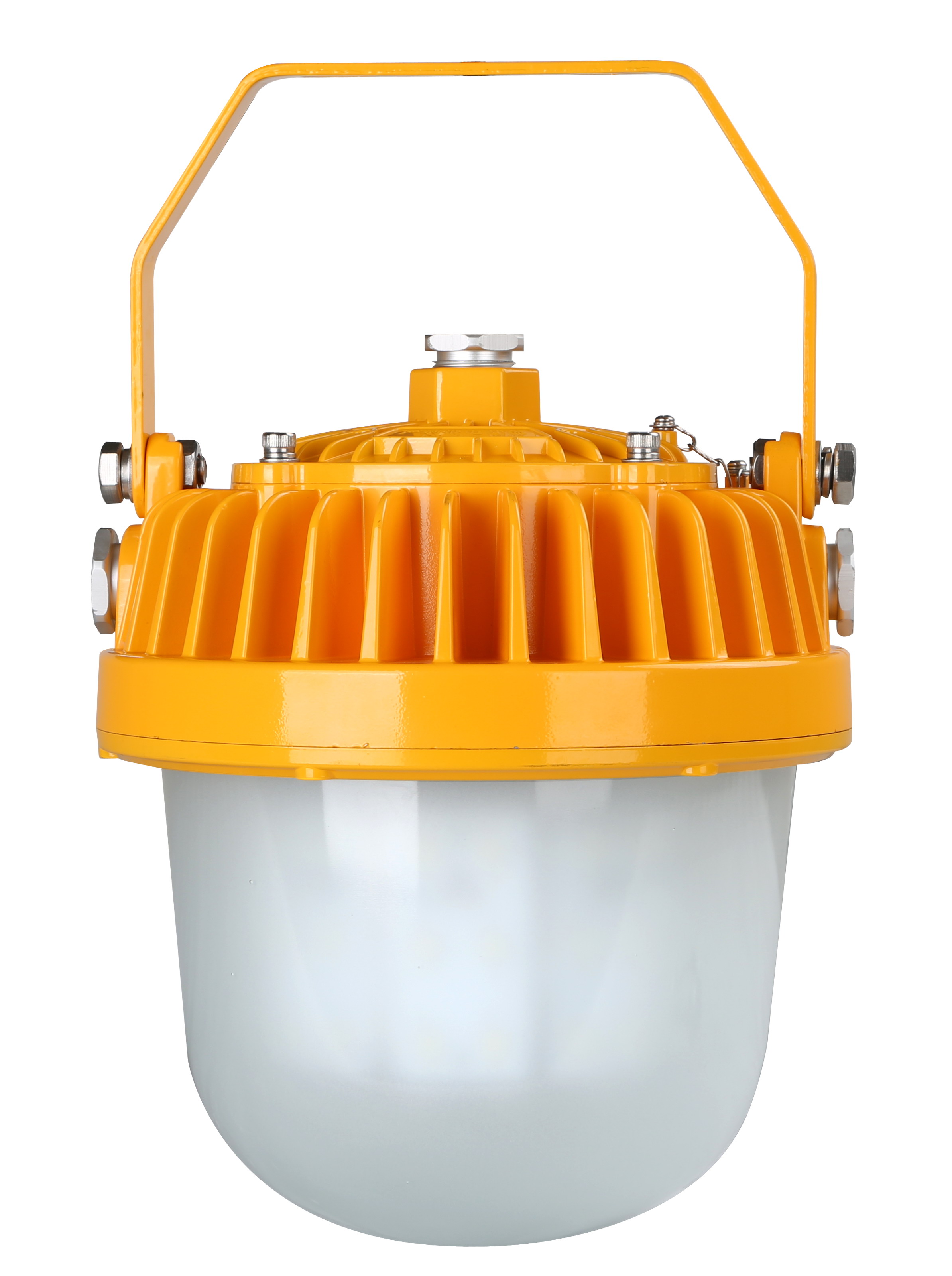

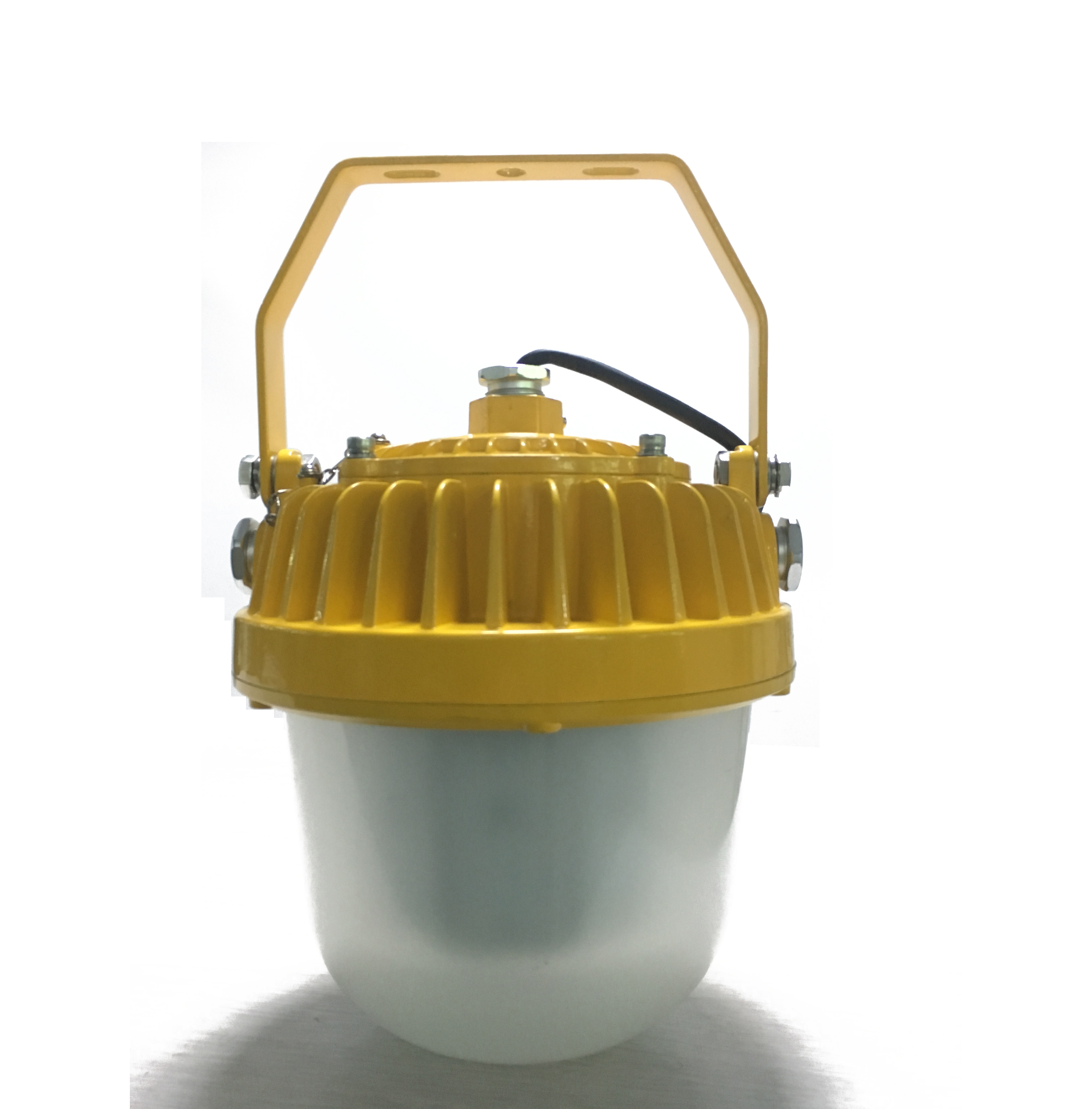

TFE9160 LED Platform Explosion proof floodlight
Click on the image to view the original image
Product: views:4TFE9160 LED Platform Explosion proof floodlight
Branch: GT
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:15
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC100-260V
Lamp Power(W):
60
CRI (Ra>):
98
Lamp Luminous Flux(lm):
7800
IP Rating:
IP65
Working Lifetime(Hour):
100000
Certification:
CE, FCC, RoHS
Place of Origin:
Zhejiang, China
Brand Name:
GT
Light Source:
LED, 60 W
Input Power:
AC100-260V 50-60Hz
Luminous Flux:
7800 Lm
Light Source Life:
100000 h
Lamp Size:
228*277 mm
Lamp Weight:
5.8 Kgs
Color Temperature:
5000-5500 K
Space-depth ratio:
3.6 S/h
Inlet thread:
G3/4 M
Power Factor:
>98 %
Product Certification Verified
CE Certified.
Valid from 2018-03-06 until 2023-03-05
FCC Certified.
Valid from 2018-02-02 until 2049-12-31
RoHS Certified.
Valid from 2018-02-02 until 2049-12-31
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton
Port
Shanghai/Ningbo
Picture Example:
package-img
Lead Time:
Quantity(Pieces)1 - 100101 - 200201 - 500 >500
Est. Time(days)101530To be negotiated
Product Description



uCE, ROHS, FCC, ATEX certified.

uLED light source, power consumption is 20% of Incandescent light.

uSoft white LED light with no glare, perfect electromagnetic compatibility.

uUse convection ventilation heat dissipation structure, high efficiency.

uAdvanced electrostatic spraying surface, to avoid rust and fading.

uDifferent installation methods to meet different need



Item

Parameters

Light Source

60 W

Input Power

AC100-260V 50-60Hz

Luminous Flux

7800 Lm

Light Source Life

100000 h

Power Factor

>98 %

Luminaire Efficiency

>92 %

Lamp Size

Φ228×277 mm

Lamp Weight

5.8 Kgs

Color Temperature

5000-5500 K

Space-depth ratio

3.6 S/h

Inlet thread

G3/4 M

Lead-in cable

Φ8-12 mm

Anti-corrosion grade

WF2

Insulation grade

Protection grade

IP65

Ex-mark

Exd IIC T6
