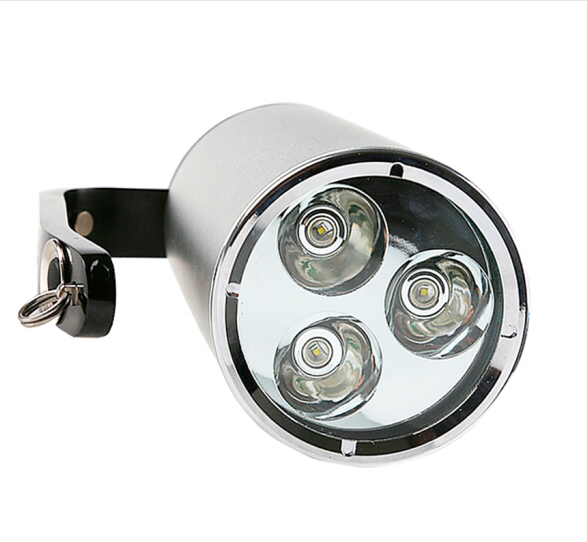

TME2520A IP68 Explosion Proof Rechargeable Remote Powerful Solid Marine Led Searchlight

Click on the image to view the original image

Product：	views：2TME2520A IP68 Explosion Proof Rechargeable Remote Powerful Solid Marine Led Searchlight
Branch：	GT
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:15

Product Details

Overview

Quick Details

Input Voltage(V):: 12V

Lamp Luminous Flux(lm):: 800

CRI (Ra>):: 82

Working Lifetime(Hour):: 100000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP68 (100m under water)

Place of Origin:: Zhejiang, China

Brand Name:: GT

Item Type:: Searchlights

Lamp Luminous Efficiency(lm/w):: 80

led water proof light Rated capacity:: 4.4Ah

led water proof light Light source:: LED 3*3W (100,000 hours)

led water proof light Discharge time:: 8h(strong light) /15h(working light)/100h(strobe light)

led water proof light Charging time:: 8h

led water proof light Ex mark:: Exib IIC T4 Gb

led water proof light Battery type:: Lithium battery (lifetime 1000 cycle times)

led water proof light Weight:: 800g

led water proof light Size:: 68.5*161mm

Product Certification Verified

CE Certified.: Valid from 2018-03-06 until 2023-03-05

FCC Certified.: Valid from 2018-02-02 until 2049-12-31

RoHS Certified.: Valid from 2018-02-02 until 2049-12-31

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Carton

Port: Shanghai/Ningbo

PRODUCT INTRODUCTION

No.	Parameter name			Unit	Value
1	Rated voltage			V	12
2	Rated capacity			Ah	4.4
3	Lamp	Working Voltage		V	12
		Electric current	Strong light	A	0.7
			Working light		0.35
		Luminous flux	Strong light	lm	800
			Working light		300
		Average lifetime		h	100000
4	Continuous discharging time		Strong light	h	≥8
			Working light		15
			Flash light		100
5	Charging time			h	<8
6	Battery life			Cycle	about 1000
7	Dimensions		Long	mm	161
			Diameter Ø		68.5
8	Weight			kg	0.8

Application

Provide mobile lighting in various flammable and explosive places of IIC, T1 to T6 group, zone1, zone 2, such as oilfield, metallurgy, railway, electricity, public security, petrochemical enterprises other work sites like underwater, etc.

Description

1. Design based on the requirements of EN 60079-0:2012/A 11:2013, EN 60079-11:2012. The highest explosion-proof grade in Exd. Can work safely in various flammable and explosive places.

2. Use three 3W high power white LED light sources in series, high light efficiency, low energy consumption, lifetime up to 100,000 hours, cool color light, adopt high-tech surface treatment process, high reflective efficiency, spot light color Evenly, light distant more than 1500 meters .

3. Premium non-memory lithium battery, no pollution, large capacity, long lifetime, stable & safe, lower self-discharge rate. Once fully charged, can be used for 8 hours at strong light, 15 hours at working light. Extra strobe function, can be used for long-distance signal indication.

4. Outer surface has anodic oxidation treatment. Light weight with nice appearance, handheld / shoulder type, touch switch, easy to operate.

5. Humanized design with power indicator and low voltage warning function, can check the remaining battery power at any time. Internal circuit of flashlight has anti-overcharge, short circuit protection function.

6. Charging is controlled by intelligent chip, with high stability, quick charge, overcharge protection, short circuit protection, trickle charge and status indicator.

SPECIFICATION

APPLICATION PHOTOS
