Home > Products > TME2420 Solid explosion-proof led torch light

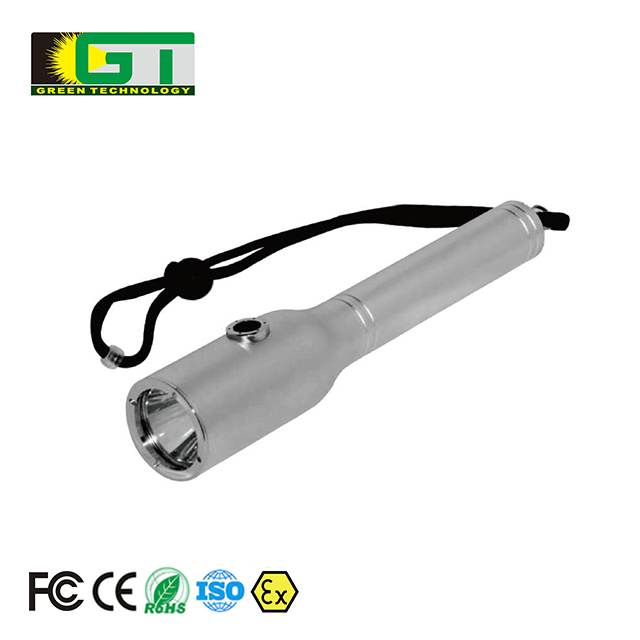

TME2420 Solid explosion-proof led torch light
Click on the image to view the original image
Product: views:2TME2420 Solid explosion-proof led torch light
Branch: GT
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:15
  Negotiated
Product Details
Overview
Quick Details
Flashlight Type:
Rechargeable Flashlight
Place of Origin:
Zhejiang, China
Brand Name:
GT
Model Number:
TME2420
Battery Type:
Ni-Mh
Usage:
Industrial
Power Source:
Rechargeable Battery
Lighting Period (h):
10
Certification:
BV, CE, FCC, RoHS
IP Rating:
IP68
Lamp Body Material:
Aluminum Alloy
Warranty(Year):
3
Light Source:
LED
Rated voltage:
3.7V
Rated capacity:
4.4Ah
Light source:
LED 3W (100,000 hours)
Discharge time:
8h(strong light) /16h(working light)
Charging time:
5h
explosion-proof led torch light Ex mark:
Exib IIC T6
Battery type:
Lithium battery (lifetime 1000 cycle times)
explosion-proof led torch light Weight:
300g
explosion-proof led torch light Size:
40*205mm
Protection grade::
IP68 (100m under water)
Product Certification Verified
CE Certified.
Valid from 2018-03-06 until 2023-03-05
FCC Certified.
Valid from 2018-02-02 until 2049-12-31
RoHS Certified.
Valid from 2018-02-02 until 2049-12-31
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton
Port
Shanghai/Ningbo

PRODUCT INTRODUCTION


TME2420 Solid explosion-proof led torch light

Application

Provide mobile lighting in various flammable and explosive places of IIC, T1 to T6 group, zone1, zone 2, such as oilfield, metallurgy, railway, electricity, public security, petrochemical enterprises other work sites like underwater, etc.

Description

1. Designed in accordance with the requirements of gb3836.1-2000 and 3836.2-2000. The highest explosion-proof grade .Completely in accordance with the national explosion-proof standard. Excellent anti-explosion and anti-static effect, Can work safely in various inflammable and explosive places.

2. Lithium ion battery, no memory, large capacity, long life, safe and stable performance, low self-discharge rate, can be charged and discharged at any time. The Use United States imports high-power LED, low energy consumption, high light efficiency. A life of up to 100,000 hours, eliminates the need to change the light bulb frequently.

3. Single-chip computer programming control technology. The high-intensity optical flux is 160 lumens, the irradiation distance reaches more than 1000 meters, the visual distance reaches 5000 meters, the continuous working time can reach up to 8 hours. and the working light can be illuminated for more than 16 hours.

4. Imported aero-class alloy shell, can withstand strong impact and impact, has good sealing performance. Can work under water for 100 meters

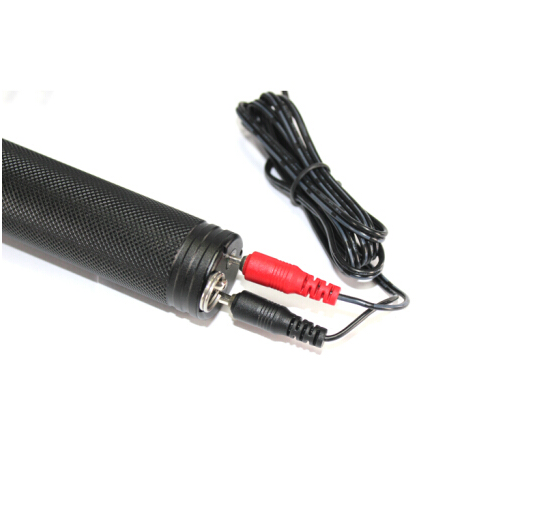

5. Humanized power indicator and low voltage warning function design can check the battery"s remaining power at any time. The charger adopts special electric chip to control charging, high reliability, quick charging, over-charge protection, short circuit protection, trickle charging and status indication.





 SPECIFICATION



Technical Parameters



No.

Parameter name

Unit

Value

1

Rated voltage

V

3.7

2

Rated capacity

Ah

4.4

3

Lamp

Working Voltage

V

3.7

Electric current

Strong light

A

680

Working light

300

Luminous flux

Strong light

lm

160

Working light

80

Average lifetime

h

≥100000

4

Continuous discharging time

Strong light

h

>8

Working light

>16

5

Charging time

h

6

6

Battery life

Cycle

about 1000

7

Dimensions

Long

mm

205

external diameter

40

8

Weight

kg

0.3
