- Flashlight Type:
- Rechargeable Flashlight
- Place of Origin:
- Zhejiang, China
- Brand Name:
- GT
- Model Number:
- TME2520A
- Battery Type:
- Lithium Battery
- Usage:
- Industrial
- Power Source:
- Rechargeable Battery
- Lighting Period (h):
- >12
- Certification:
- CE, FCC, RoHS
- IP Rating:
- IP68
- Lamp Body Material:
- Aluminum Alloy
- Warranty(Year):
- 3
- Light Source:
- LED
- Light source:
- LED 3*3W (100,000 hours)
- Rated voltage:
- 11.1V
- Rated capacity:
- 4.4Ah
- Discharge time:
- 8h(strong light) /15h(working light)/100h(strobe light)
- Charging time:
- 8h
- Ex mark:
- Exib IIC T4 Gb
- Weight:
- 800g
- Size:
- 68.5*161mm
- Protection grade::
- IP68 (100m under water)
- Battery type:
- Lithium battery (lifetime 1000 cycle times)
- CE Certified.
- Valid from 2018-03-06 until 2023-03-05
- FCC Certified.
- Valid from 2018-02-02 until 2049-12-31
- RoHS Certified.
- Valid from 2018-02-02 until 2049-12-31
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- Carton
- Port
- Shanghai/Ningbo
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 101 - 200 201 - 500 >500 Est. Time(days) 10 15 30 To be negotiated
Application:
Provide mobile lighting in various flammable and explosive places of IIC, T1 to T4 group, zone1, zone 2, such as oilfield, metallurgy, railway, electricity, public security, petrochemical enterprises other work sites like underwater, etc.
Description:
1. Design based on the requirements of EN 60079-0:2012/A 11:2013, EN 60079-11:2012. The highest explosion-proof grade in Exd. Can work safely in various flammable and explosive places.

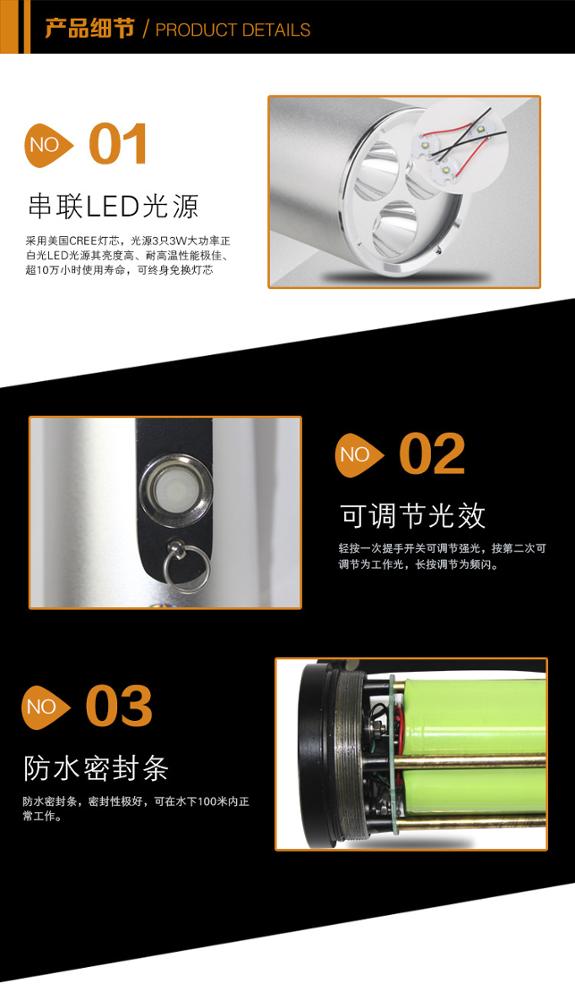

2. Use 3 pcs of 3W solid high power LED light sources, high light efficiency, low energy consumption, lifetime up to 100,000 hours, reflector adopt High purity mirror aluminum, high-tech surface treatment process, high reflective efficiency, irradiation range more than 500meters, visual range more than 5000 meters.
3. Non-memory lithium battery, no pollution, large capacity, long lifetime, stable & safe, lower self-discharge rate. Once fully charged, can be used for 8 hours at strong light, 16 hours at working light. Extra strobe function, can be used for long-distance signal indication.
4. Outer surface use anodic oxidation treatment. Light weight with nice appearance, handheld / shoulder type, touch switch, easy to operate.
High hardness aviation aluminum, can bear strong collision and impact, good sealing performance, can work properly underwater 100 meter.
5. Humanized design of power detector and low voltage warning function, can check remaining battery level at any time. Internal circuit of flashlight has anti-overcharge, short circuit protection function.
6. Charger is controlled by intelligent charging managing chip, with high stability,
quick charge, overcharge protection, short circuit protection, trickle charge and status indicator.
No. | Parameter name | Unit | Value | ||
1 | Rated voltage | V | 11.1 | ||
2 | Rated capacity | Ah | 4.4 | ||
3 | Lamp | Working Voltage | V | 11.1 | |
Electric current | Strong light | A | 0.7 | ||
Working light | 0.35 | ||||
Luminous flux | Strong light | lm | 990 | ||
Working light | 360 | ||||
Average lifetime | h | 100000 | |||
4 | Continuous discharging time | Strong light | h | ≥8 | |
Working light | 15 | ||||
Flash light | 100 | ||||
5 | Charging time | h | <8 | ||
6 | Battery life | Cycle | about 1000 | ||
7 | Dimensions | Long | mm | 161 | |
Diameter Ø | 68.5 | ||||
8 | Weight | kg | 0.8 | ||
9 | Ex mark | Exib IIC T4G | |||
10 | Battery type | Lithium Battery | |||
