- Input Voltage(V):
- AC85-265V
- Lamp Luminous Flux(lm):
- 3200
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -35 - 45
- Working Lifetime(Hour):
- 30000
- Lamp Body Material:
- Aluminum
- IP Rating:
- 40
- Certification:
- CE, EMC, RoHS, SAA, UL
- Place of Origin:
- Zhejiang, China
- Brand Name:
- OEM
- Model Number:
- PL-30120-40W
- Light Source:
- LED
- Dimension:
- L 300 x W 1200 x H 9mm
- Shape:
- Square Shape
- Power:
- 3/4/6/9/12/15/18/20/24W
- Application:
- Hotel
- Material:
- Almiunum
- Color:
- Natural White
- Product name:
- outdoor led panel light
- Item Type:
- Panel Lights
- Color Temperature(CCT):
- Pure White
- LED Light Source:
- SMD2835
- Warranty(Years):
- 3
- Lamp Power(W):
- 40
- Lamp Luminous Efficiency(lm/w):
- 85
- Supply Ability:
- 10000000 Piece/Pieces per Month
- Packaging Details
- white box ,ifthe Qty is big, we can use your own color boxes
- Port
- Ningbo

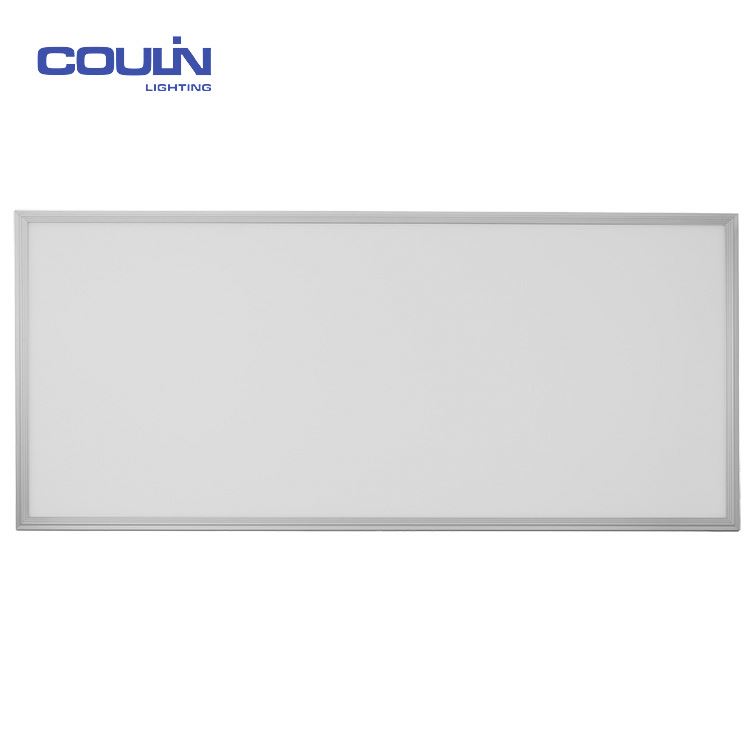

Coulin 40W 60W Square led panel Light, dimmable 300x1200 plasterboard led ceiling panellight
Feature:
1.) Used aliuminum AL6060, with good heat dissipation
2.) Use the most mature LED SM2835 as the light source ,which can ensure the led tube brightness and long time
3.) High luminous efficiency, long-life gas discharge light source, power factor more than 0.95, a high luminous efficiency, good light transmission
4.) Block-style, ceiling and wall-mounted installation
5.)Used in living rooms , kitchens, Restaurants ,Clubs,Lobbies ,exhibitions , office ,hotel,schools,supermarkets and so on
Installation of light panel
- embedded into ceiling
- suspended with hanging wires
- surface mounted in a concrete ceiling by using surface mounting frame
Model No. | PL-30120 -30W | PL-30120 -36W | PL-30120 -40W | PL-30120 -45W | PL-30120 -48W | PL-30120 -60W | PL-30120 -70W |
Watt | 30W | 36W | 40W | 45W | 48W | 60W | 70W |
CRI | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Input Voltage | AC 85-265V 50/60Hz | AC 85-265V 50/60Hz | AC 85-265V 50/60Hz | AC 85-265V 50/60Hz | AC 85-265V 50/60Hz | AC 85-265V 50/60Hz | AC 85-265V 50/60Hz |
Lumen | 2500lm | 3100lm | 3400lm | 3850lm | 4100lm | 5100lm | 6000lm |
LED Chip | EPISTAR SMD2835 | EPISTAR SMD2835 | EPISTAR SMD2835 | EPISTAR SMD2835 | EPISTAR SMD2835 | EPISTAR SMD2835 | EPISTAR SMD2835 |
Size (mm) | L 300 * W 1200 * H 9mm | L 300 * W 1200 * H 9mm | L 300 * W 1200 * H 9mm | L 300 * W 1200 * H 9mm | L 300 * W 1200 * H 9mm | L 300 * W 1200 * H 9mm | L 300 * W 1200 * H 9mm |
Material | Aluminium +Pmma | Aluminium +Pmma | Aluminium +Pmma | Aluminium +Pmma | Aluminium +Pmma | Aluminium +Pmma | Aluminium +Pmma |
Color of Body | Siliver / White | Siliver / White | Siliver / White | Siliver / White | Siliver / White | Siliver / White | Siliver / White |
Application:
Used in living rooms , kitchens, Restaurants ,Clubs,
Lobbies ,exhibitions , office ,hotel,schools,supermarkets and so on
Features
A. Passed EMC,LVD and ROHS certification;
B. Environment-friendly and no UV or IR radiation;
C. low consumption;
D. Easy to install and maintain,replacement of traditional fixture.
Advantage
1. Higher efficiency and energy-saving compared to conventional fluorescents with equal bright.
2. No RF interference, no buzzing noise, no UV radiation.
3. No fluorescent flickering.
4. No hazard of mercury or lead entering the environment.
5. Solid- state, high shock/ vibration resistant
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What is your main product line is made?
A:We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting and out-door lighting. (Led panel Light, Led flood Light, Led celling Light etc. )
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution i ncluding re-call according to real situation.
