20W,30W,40W,50W Available ,Sensor type is on the way
| Specification | ||||||||||||||||||||||||||||||||||
| Model | LFLD.01.10 | CRI (RA) | > 80 | |||||||||||||||||||||||||||||||
| Wattage | 10W | Beam angle | 120 degree | |||||||||||||||||||||||||||||||
| Voltage | AC 175-260V 50/60Hz | Dimension | L140x W100 x H25mm | |||||||||||||||||||||||||||||||
| LED Chip | EPISTAR SMD2835 | Working Tem. | -35 -- 45℃ | |||||||||||||||||||||||||||||||
| LUMEN | 850LM | Lens | Without | |||||||||||||||||||||||||||||||
| CCT | 2700-6500K | Lifetime | > 30,000 hours | |||||||||||||||||||||||||||||||
| Power factor | > 0.50 | Material | Aluminium Alloy | |||||||||||||||||||||||||||||||
| Cable & Plug | 0.3m H05VV-F3G0.75mm | Waterproof | IP65 | |||||||||||||||||||||||||||||||

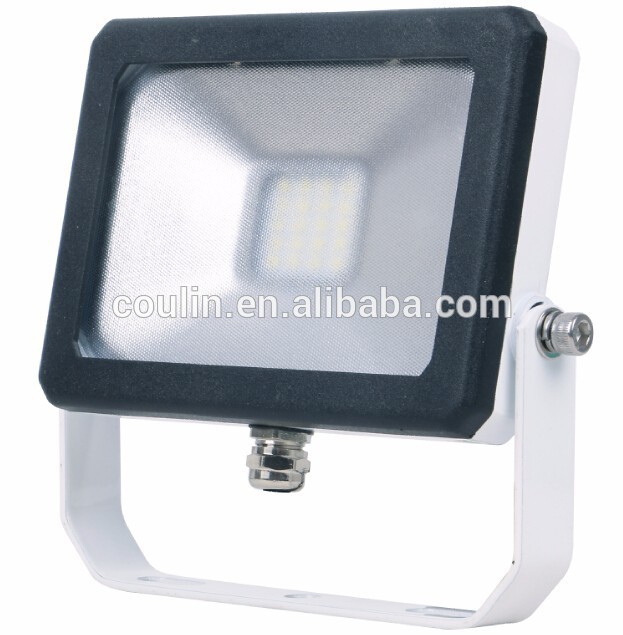

Photos:
The housing color can changable : White, Black ,Grey and others

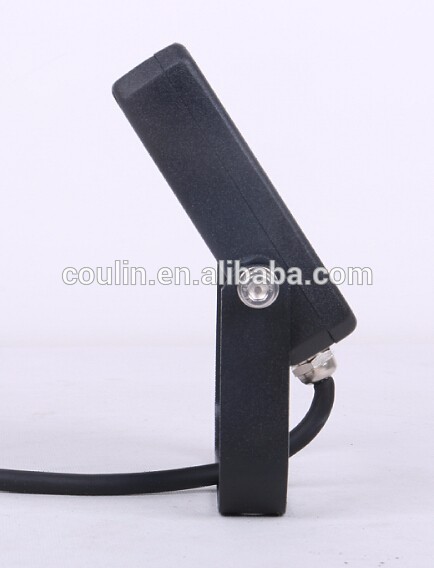

Super slim ,just 25mm of the thickness
1. Workshop, factory, station, hypermarket, exhibition, center, gym
2. Advertising board, outdoor advertisements, wall, gymnasium and so on
Feature:
-Use professional flood light’s thermal grease under the chip, let the heat run out quickly.
-Use professional waterproof glue to seal every hole
-Use toughened glass, hard enough and won’t be broken during transportation
-With reasonable compact light structure, and expertise radiating design, ensure the lights working temperature lower, reduce light decay and expand lifetime
-High efficiency constant current driver, power factor can reach 0.95
-Work perfectly in the high humidity environments
-No delay start, no glare
-Energy-saving: saving 80% than the ordinary lamp;
-Eliminates maintenance and reduces costs
-Easy installation
CONTACT US NOW!!!
Coulin lighting company limited is one of the leading LED Solution providers,integrated with R&D, production, marketing and sales, providing total one-top solution.
Our Main products is : LED Floodlight ,LED Ceiling lamp, LED Panel light ,LED Highbay light, Led tube, led bulb, and so on. We can also search and develop goods as clients requirements. Why us ?
More than 10 years experience in the lighting line Have advanced production equipment, such as auto solding & SMT assembly lines. Offer the correct and most beneficial solutions for clients .
Have rich experience in developing LED appliances Can supply OEM ,ODM Service to meet different clients" requirements
Our sales team is young but professional ,is always ready to give you a thorough introduction of our products, technical support and sales suggestion.
Our aim is "High quality products, competitive prices and perfect after-sales service"
Following is our manufacture procedure
