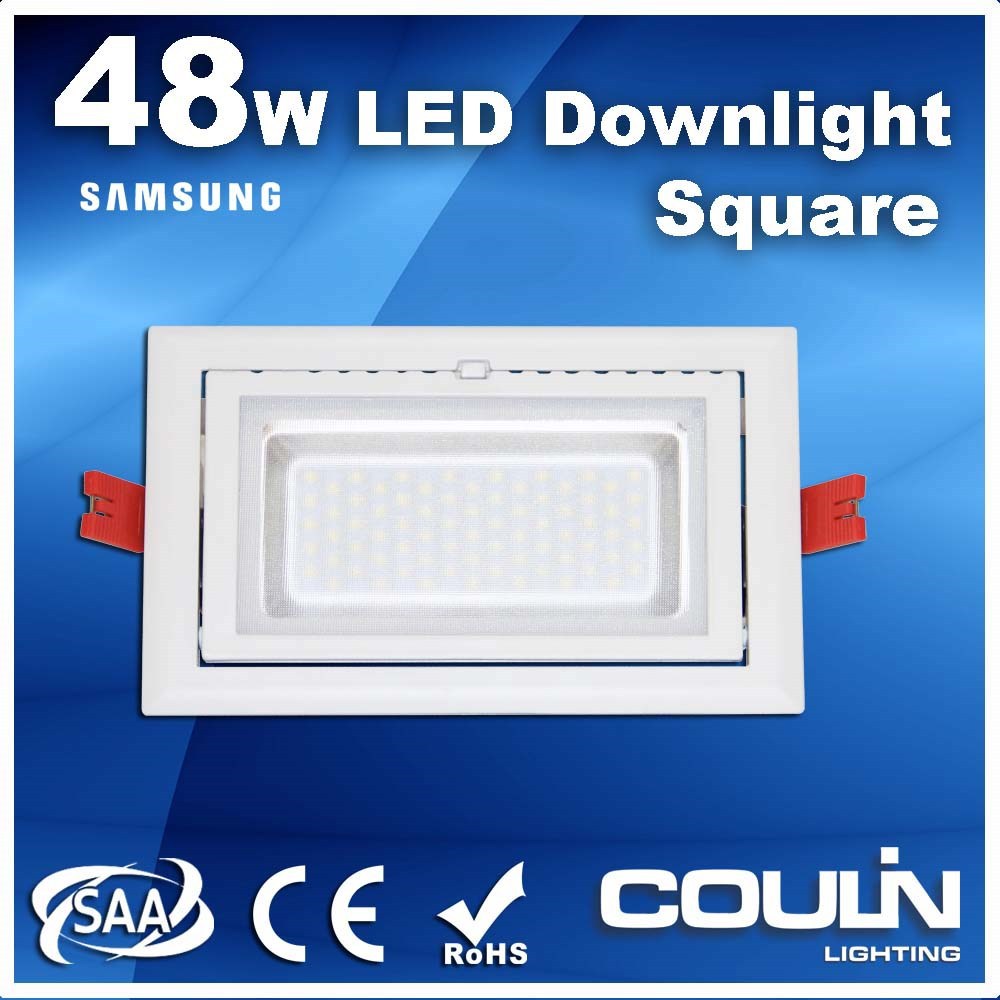

- Light Source:
- LED
- Input Voltage(V):
- AC100-265V 50/60Hz
- Lamp Luminous Flux(lm):
- 4300
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum Alloy
- IP Rating:
- IP44
- Certification:
- CCC, CE, EMC, FCC, REACH, RoHS, SAA
- Model Number:
- LDNL-150036
- Place of Origin:
- Zhejiang, China
- Brand Name:
- COULIN
- Dimension:
- L240*W145*H135mm
- Cutout:
- L227*W130mm
- Item Type:
- Downlights
- Working Temperature(℃):
- -20 - 40
- CRI (Ra>):
- 80
- LED Light Source:
- 88pcs Samsung G2 SMD5630
- Warranty(Years):
- 3
- Lamp Power(W):
- 48
- Lamp Luminous Efficiency(lm/w):
- 95
- Color Temperature(CCT):
- 3000K / 6000K
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- 1pcs/box 8pcs/ctn
- Port
- FOB NINGBO
Specification | ||||||||||||||||||||||||||||||||||
Model | LDNL-150036 | Beam angle: | 90° | |||||||||||||||||||||||||||||||
Wattage | 48W | Aljustable angle: | 60° | |||||||||||||||||||||||||||||||
Voltage | AC100-265V 50-60Hz | Rotation angle: | / | |||||||||||||||||||||||||||||||
LED Chip | 88pcs Samsung G2 SMD5630 | Dimension | L240*W145*H135mm | |||||||||||||||||||||||||||||||
LUMEN | 4000Lm | Cutout | L227*W130mm | |||||||||||||||||||||||||||||||
CCT | 3000K / 4000K / 5000K | Lifetime | > 50,000 hours | |||||||||||||||||||||||||||||||
Power factor | > 0.95 | Material | Aluminium | |||||||||||||||||||||||||||||||
CRI (RA) | > 80 | Surface Color | White | |||||||||||||||||||||||||||||||
Packing | Inner box (pcs) | Inside holder | Middle box (pcs) | Carton (pcs) | Outer Carton | |||||||||||||||||||||||||||||
L | W | H | M3 | G.W | N.W. | |||||||||||||||||||||||||||||
1 | N | N | 8 | 59 | 38.5 | 42.5 | 0.097 |
Residential lighting: can be used in Living room , bedroom ,washroom etc
Commercial lightining: School , hotel , showcase , meeting room,supermarket , warehouse ,office etc.
Features:
Dimmable available
Excellent thermal structure design ,lifetime can reach 50,000hour and more
Use high brightness LED ,high output lumen and stable quality
Used better quality LED Driver , power factor can reach 95%
With high quality aluminum alloy casting.
A variety of angles for your choice: 24°/36°/60°,15°/28°/40° , meet your different lighting demands
Coulin lighting company limited is one of the leading LED Solution providers,integrated with R&D, production, marketing and sales, providing total one-top solution.
Our Main products is : LED Floodlight ,LED Ceiling lamp, LED Panel light ,LED Highbay light, Led tube, led bulb, and so on. We can also search and develop goods as clients requirements. Why us ?
More than 10 years experience in the lighting line Have advanced production equipment, such as auto solding & SMT assembly lines. Offer the correct and most beneficial solutions for clients .
Have rich experience in developing LED appliances Can supply OEM ,ODM Service to meet different clients" requirements
Our sales team is young but professional ,is always ready to give you a thorough introduction of our products, technical support and sales suggestion.
Our aim is "High quality products, competitive prices and perfect after-sales service"
Following is our manufacture procedure
