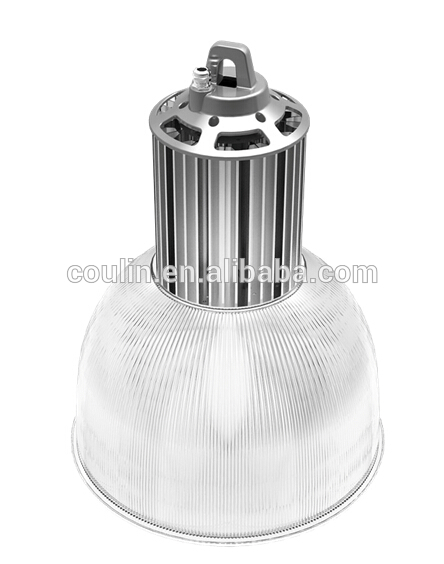

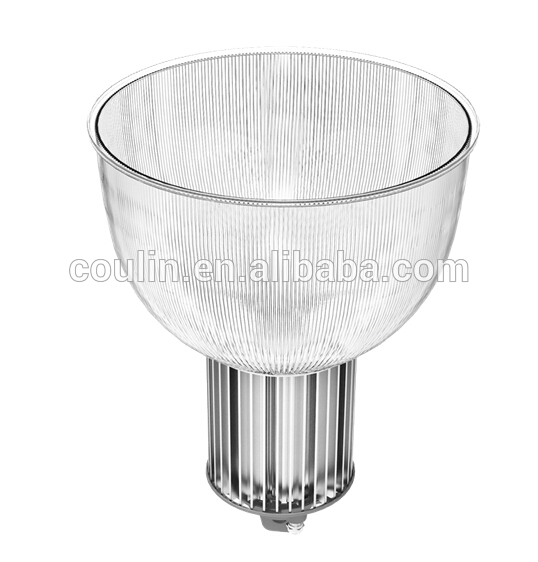

LED Highbay light 60-300W
Parameter:
- Material: Aluminum housing
- Input Voltage: AC85-277V
- Color Temperature:2700-6500K
- Beam angle : 60/90/110°
- PF: >0.95
- RA: >70
- Working Temperature: -30°c-----45°c
| Code | Wattage | Lumen | LED | Size |
| HBLED-CP-300W | 300W | 28000lm | 196Pcs CREE-XBD | Φ505.4x524.5mm |
| HBLED-CP-200W | 200W | 19350lm | 130Pcs CREE-XBD | Φ505.4x459.5mm |
| HBLED-CP-150W | 150W | 14900lm | 300Pcs Epistar SMD3020 | Φ505.4x459.5mm |
| HBLED-CP-100W | 100W | 7311lm | 200Pcs Epistar SMD3020 | Φ505.4x414mm |
| HBLED-CP-800W | 80W | 5900lm | 160Pcs Epistar SMD3020 | Φ505.4x454.5mm |
| HBLED-CP-60W | 60W | 4800lm | 120Pcs Epistar SMD3020 | Φ311x461mm |
Features
- Copper heatpipe---------using the φ6mm heatpipe ,the generated heat quickly transfers to the cooling module of massive radiation fins ,efficiently reduce the temperature of the LED chips and extend the lifetime .
- 3D Heat Dissipation---------Professional heat dissipation structure
- Compressed Fins------------rivet the heatpipt to heatsink body closely ,minimize the heat resistance.
- Optional beam angle of the reflector: High-purity aluminum reflector or PC Cover. There is 60,90,110°
- Build-in power driver---------make the whole lamp look more beautiful
- MW LED Driver HLG Series , 5 years warranty
Advantage
1. Higher efficiency and energy-saving compared to conventional fluorescents with equal bright.
2. No RF interference, no buzzing noise, no UV radiation.
3. No fluorescent flickering.
4. No hazard of mercury or lead entering the environment.
5. Recessed mounted, maintenance free, easy installation.
6. Solid- state, high shock/ vibration resistant
7. Adopting low- pressure constant current power supply, no glare,
Housing kits showing
110° reflector Diagram
90° reflector Diagram
60° reflector Diagram
Certification
Package: 1pc/carton box of the head, 8pcs reflector/ carton
Shipping: By air ,By ship or By express
